| Performance |
|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Design |
|---|
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling |
| LED indicators | Yes |
| Camera |
|---|
| Tilt angle range | 0 - 85 ° |
| Pan range | 0 - 360 ° |
| Angle of rotation | 360 ° |
| Lens viewing angle, horizontal | 79 ° |
| Lens viewing angle, vertical | 43 ° |
| Lens viewing angle, diagonal | 93 ° |
| Image sensor |
|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Number of sensors | 1 |
| Panoramic camera |
|---|
| Digital Wide Dynamic Range (DWDR) (panoramic camera) | Yes |
| Lens system |
|---|
| Number of lenses | 1 |
| Fixed focal length | 4 mm |
| Night vision |
|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| Video |
|---|
| Maximum resolution | 2560 x 1440 pixels |
| Video formats supported | H.264, H.265 |
| Supported graphics resolutions | 2048 x 1280, 2304 x 1296, 2560 x 1440, 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p, 1440p |
| Audio |
|---|
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Network |
|---|
| Bluetooth | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Storage |
|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in HDD | No |
| Maximum memory card size | 256 GB |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Security |
|---|
| Password protection | Yes |
| Power |
|---|
| Power source type | DC, PoE |
| DC-in jack | Yes |
| Weight & dimensions |
|---|
| Width | 123 mm |
| Depth | 123 mm |
| Height | 84 mm |
| Packaging content |
|---|
| Number of cameras | 1 |
| Manual | Yes |

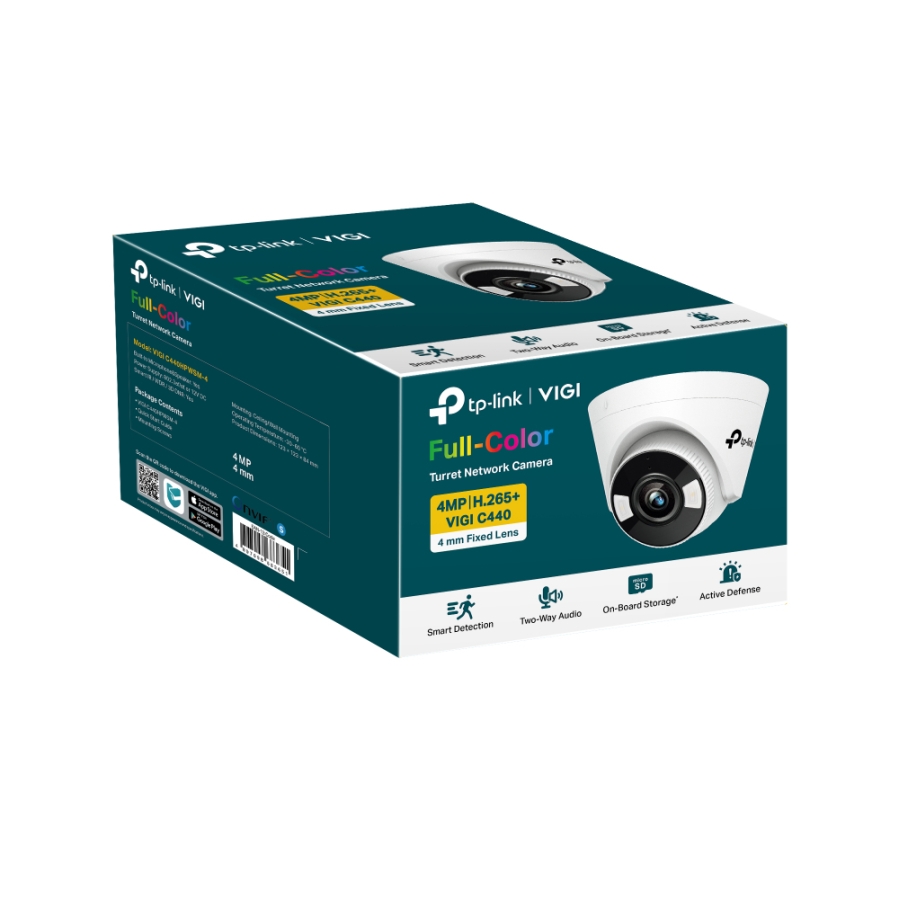

All The Colors, All The Time 4MP Full-Color Turret Network Camera Clarity and Colors, All in One Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Plug & Play with One Cable Enjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled.
We keep an eye on your business. Smart Detection Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera. Motion Detection Get instant notifications when your camera detects motion. Area Intrusion Set customized activity zones around key areas for more focused monitoring. Line-Crossing Set a boundary and receive an alert anytime a person crosses it from either or both directions. Camera Tampering Receive alerts when someone obstructs the camera.
Active Defense Warn and expel potential intruders instantly with sound and light alarms when abnormal events are detected.
Every Event is Under Your Control. VIGI cameras intelligently detect activities, inform you instantly and respond automatically by smart detection and two-way audio.
Never miss a detail. SmartVid-Smart Video Enhancement
Smart IR Keeps objects from being under-rendered when far away or overexposed when close to camera at night.
Wide Dynamic Range Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
3D DNR Removes abnormal pixelation to provide clearer video and eliminate distortion.
More compression. More savings. Same quality. Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Flexible Management and Storage Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as onboard storage with an SD card slot.
Flexible Installation Gives You More Convenience. Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.
One system. Full security. Run your business with peace of mind. The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build – whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
