Aten EA1340 Differential Pressure & Temperature
Overview
- Measurement range: -19-60°C (Temperature); +-500 Pa (Pressure )
- Compact design – built in 3 m cable
- High sensitivity
- Easy operation
For environmental monitoring and management, ATEN provides sensor probes that
work in tandem with the Power Distribution Units, which enable you to get
readings of Differential Pressure & Temperature. Environmental conditions
can be monitored with alarms according to customizable minimum/maximum
thresholds set for temperature and humidity.
* The Sensor is an optional accessory and you can use the ATEN PDU without
environmental sensors. However, if you want to have complete energy management
of your data center with the full use of ATEN solutions, a sensor installation
is required.
Package Contents

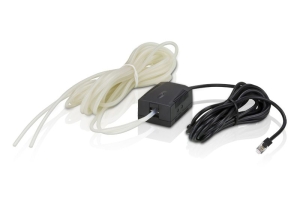

- 1x Differential Pressure & Temperature Sensor
- 2x Air Tube
Features
- Measurement range: -19-60°C (Temperature); +-500 Pa (Pressure )
- Compact design – built in 3 m cable
- High sensitivity
- Easy operation
Diagram
Specifications
|
Connectors |
RJ11-4P4C |
|
Measurement |
|
Range |
Temperature:
-19-60C |
|
Pressure: +-500
Pa |
|
Accuracy |
Temperature: +-1C
(0-40C) |
|
Pressure: +-1 %
(15-35C) |
|
T.C: -0.1
Pa/C |
|
Power
Consumption |
5 VDC (Max),
3mA(Typical) |
|
Environmental |
|
Operating
Temperature |
0-60C, <95% RH
Non-condense |
|
Storage
Temperature |
0-40C |
|
Humidity |
< 90%
RH |
|
Physical
Properties |
|
Housing |
Plastic |
|
Weight |
0.09
kg |
|
Cable
Length |
3
m |
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH format. |
