ATEN EA1442 Red Door Sensor - 150VDC

Product May Vary From Image
Sharing & Social
Brand:
Manuf No:
EA1442
Usually Ships:
Order In   More info
Part No:
448657
Rating:
Not Rated
Price:
$39.95
Quantity:
Product Description

Aten EA1442 Red Door Sensor



Overview

  • The Inductive Proximity Door Sensor allows the monitoring of a rack mounted enclosures door access notifying users when a door has been opened
  • High sensitivity
  • Easy operation

For the security of your data center, ATEN provides Inductive Proximity Door sensor probes that work in tandem with the Power Distribution Units, which allows the monitoring of a rack mounted enclosures door access, notifying users when a door has been opened. Various conditions can be monitored with alarms according to customizable minimum/maximum settings.

*The Sensor is an optional accessory and you can use the ATEN PDU without the door sensors. However, if you want to have complete security management of your data center with the full use of ATEN solutions, a sensor installation is required.

**Support PE7/PE8/PE9 series only

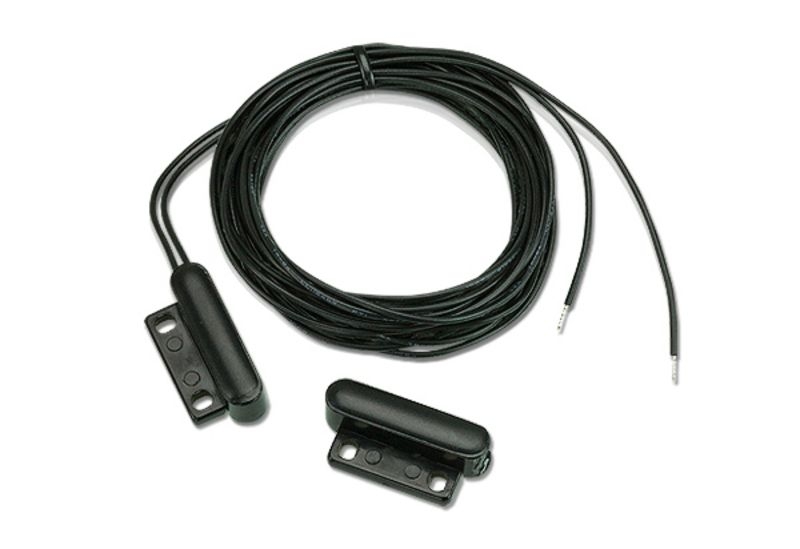

Package Contents

  • 1 x Switch
  • 1 x Magnet

Features

  • The Reed Door Sensor allows the monitoring of a rack mounted enclosures door accessnotifying users when a door has been opened
  • High sensitivity
  • Easy operation

Diagram

Specifications

Switches

Switching voltage(Max)

70v AC / DC

Switching current

50 mA

Contact capacity(Max)

1 watt

Initial contact resistance

0.2 Ohm(Max)

Carry current (Max)

100 mA

Breakdown voltage

150 VDC

Insulation resistance

100 Mohm(Min)

Switch cycle

5x 107 at 12 V, 50 mA

Sense gap

16 mm(Min)

Environmental

Operating Temperature

-20C60C

Humidity

80C 95% RH

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
