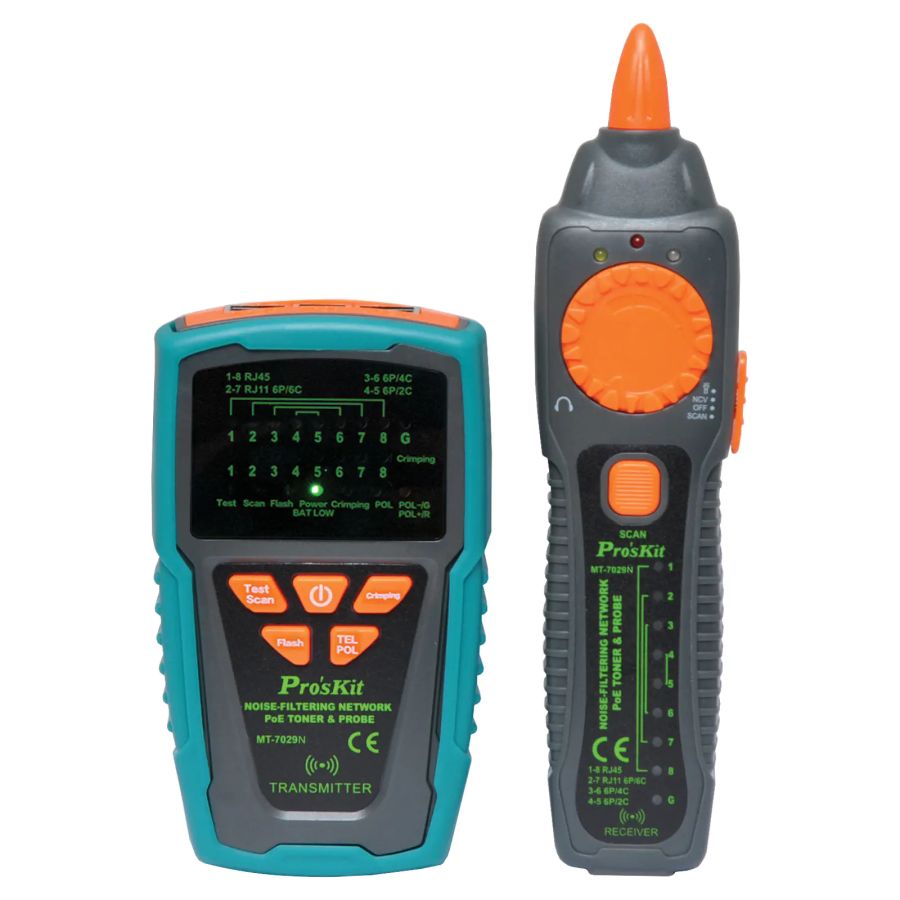

This Noise-Filtering Network PoE Toner &Probe allows users to quickly locate and verify the cable status and troubleshoot wiring for continuity, shorts, opens and crossover on RJ45, Lan cable Cat5, 5e, 6 (UTP/STP), RJ11/12 telephone cable Cat. 3 (2/4/6 pin) &normal solid/stranded wire by alligator clips patch cord. Telephone line polarity and status (severed lines, the off-hook condition, or incoming call ringing) can be indicated and detected easily as well. Ideal for all installation and maintenance fields of telecommunication, networking, datacom, Audio/Video, cable TV, and all weather cabling, etc.
Specifications:

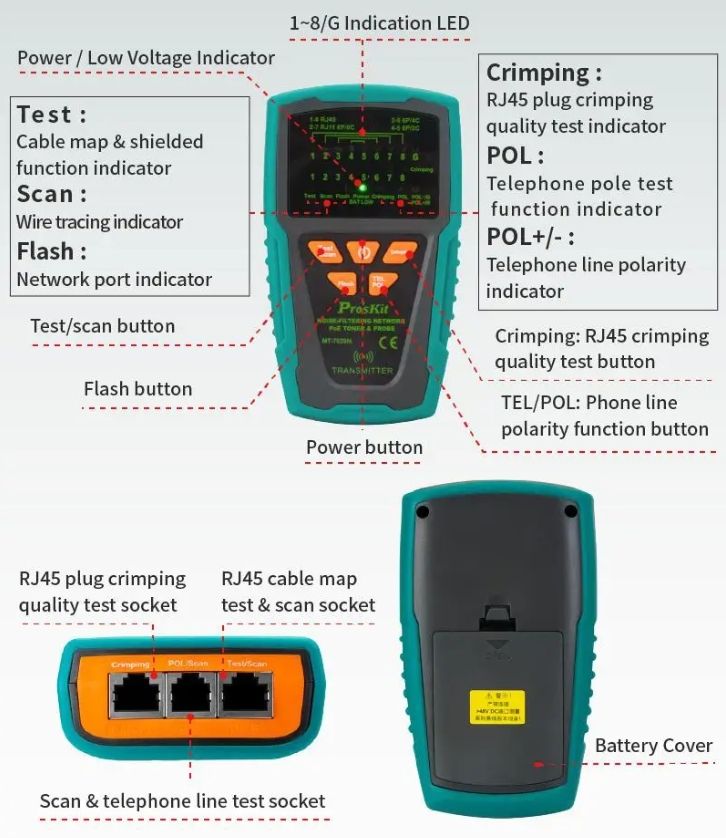

Transmitter
Signal frequency: 455KHz
Max. signal voltage: 8Vp-p
Tracing Distance: 600m
Cable map indication: 8 LEDs, Fast/Slow dual speed
Max. distance of cable map: 300m
Crimping test socket for RJ45/RJ11/RJ12 crystal plug
Crimping test: 8 LED indicators
Port Flash: 1 LED indicatior
Telephone line polarity, status indication: 1 Dual color LED
Low battery indication: About 7.0V
Voltage protection: DC 60V
Battery type DC 9.0V (NEDA 1604/ 6F22 DC9V ×1pce)
Dimension: 138L×80W×35D mm
Compatible connectors: For RJ45(8 pin)/RJ11(6 pin) cable map test. RJ45 SCAN socket : for RJ45 locating individual wire pairs RJ11 SCAN socket: for RJ11 locating individual wire pairs
Cable types: RJ45 Lan cable Cat 5, 5e, 6(UTP/ STP), RJ11/12 telephone cable Cat 3 (6P/2C/4C/6C)

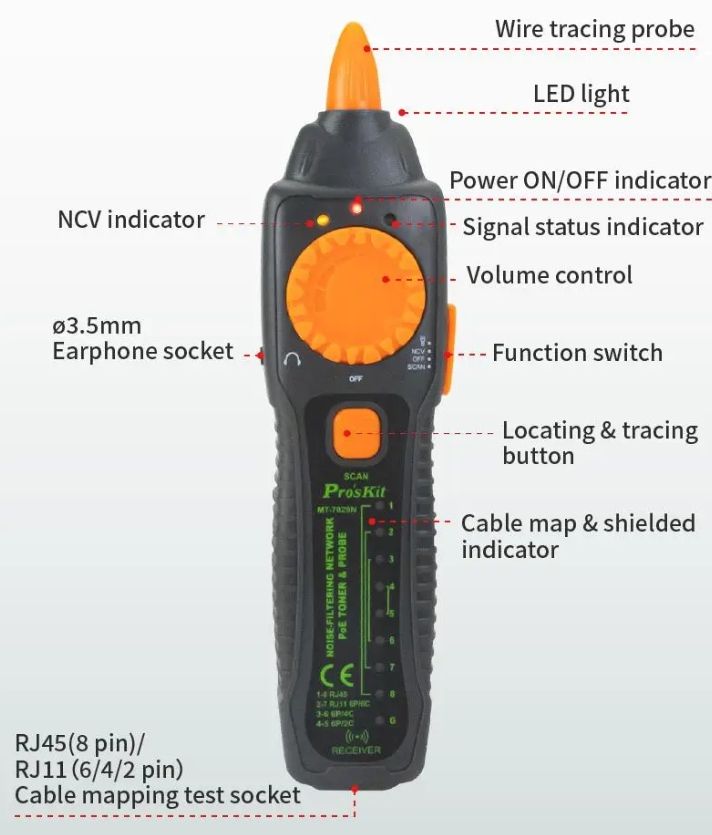

Receiver
Frequency: 455KHz
Tracing Indication: 1 LED indicator &speaker, anti-noise and sensitivity adjustable
Compatible connectors: RJ45 socket
Cable map indication: 8 LEDs
NCV indication; 1 LED (AC90~1000V,=50mm,=100mm)
Earphone jack: 1
LED illumination: 1 LED
Low battery indication: about 7.0V
Battery type: DC 9.0V (NEDA 1604/ 6F22 DC9V ×1pcs)
Dimension: 203L×50W×32D mm
General

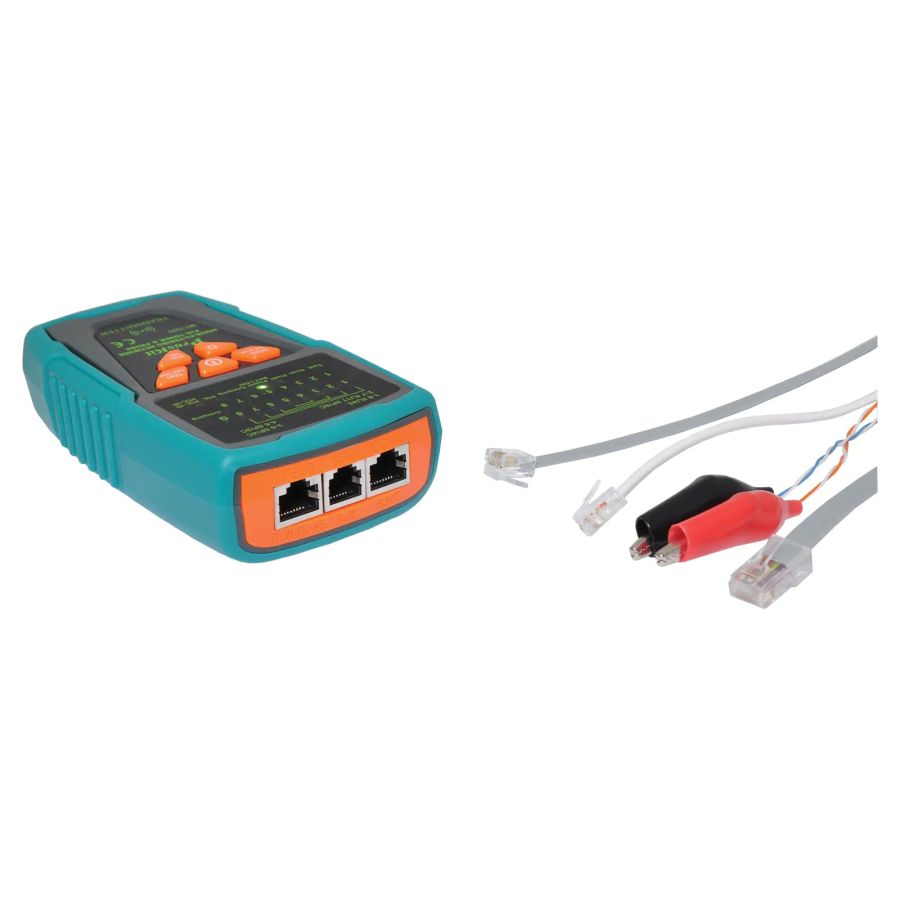

Accessories: RJ45 cable patch cords, RJ11 cable patch cords, RJ11 to alligator clips patch cord, earphone, storage bag, user manual
Features:

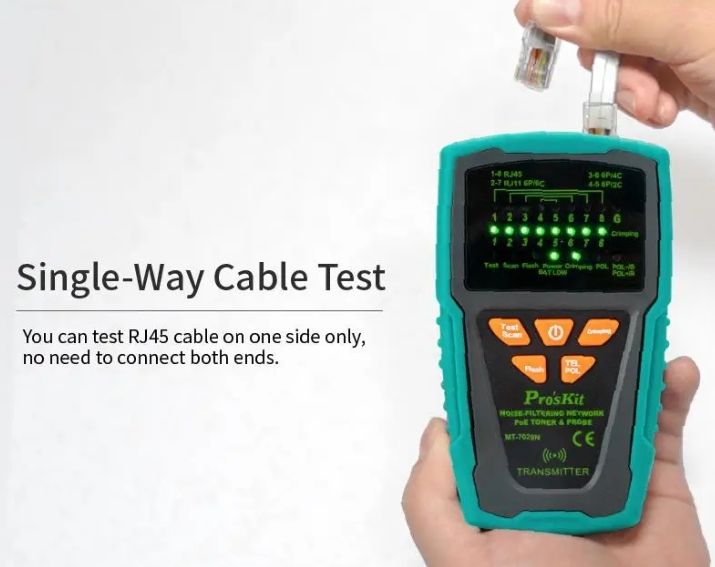

Single way to test plug crimping quality

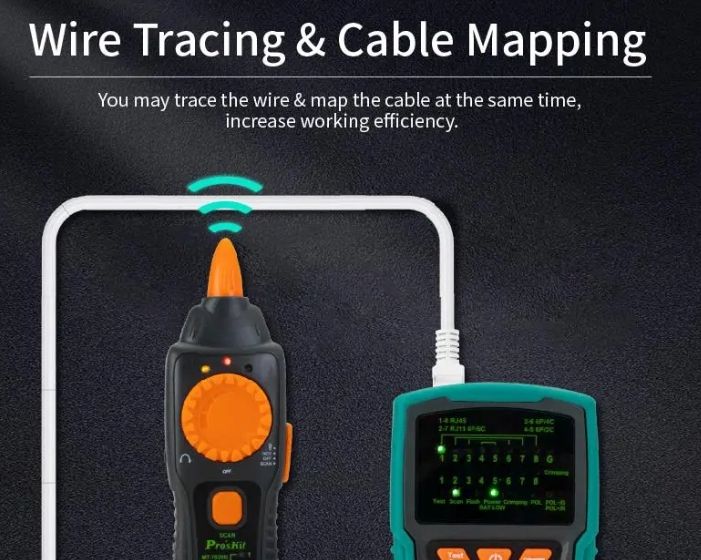

Wire tracing &cable mapping at the same time

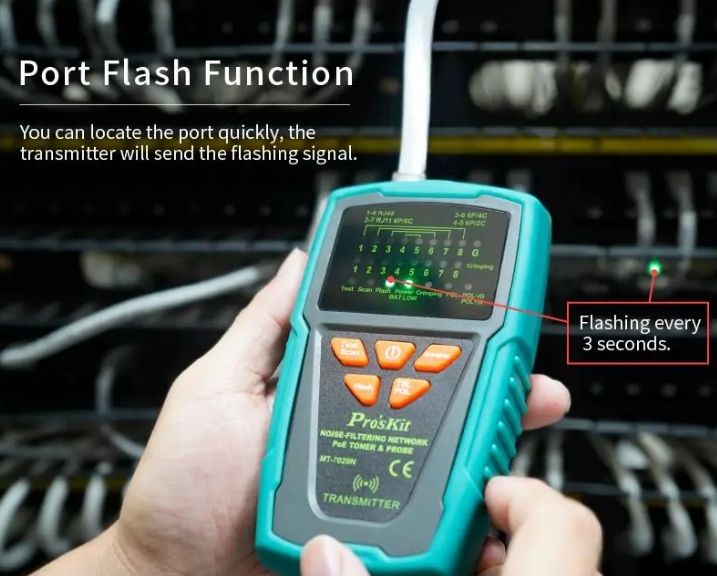

Easily locate the port with a flashing signal

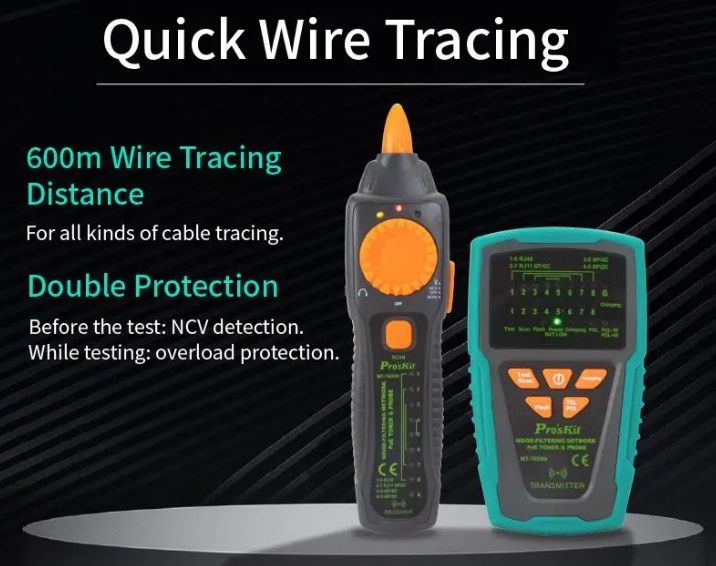

PoE switches &STP wire tracing up to 3KM
Telephone line status/polarity indication
Cable mapping &status indication up to 300M for continuity, shorts, opens and crossover
Fast/slow scan function
Display cable status and troubleshoot wiring
Non- contact voltage detecting
