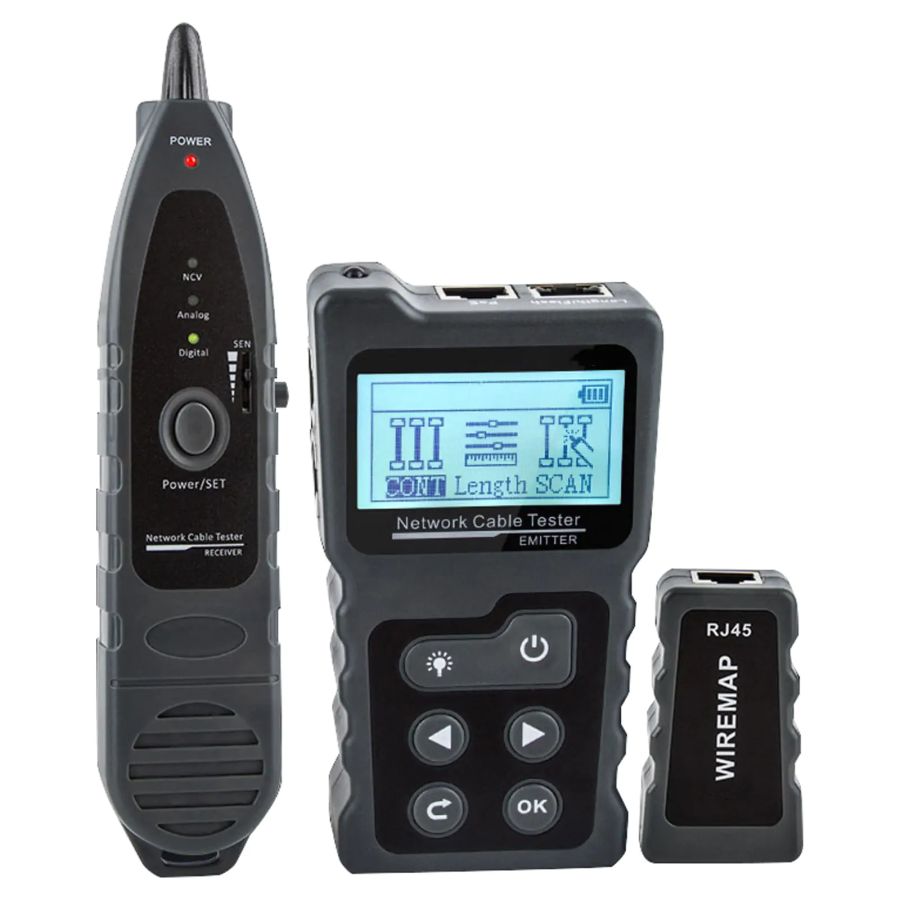

A complete PoE cabling tester with cable tracer receiver, cable length testing, PoE verification and fault testing. Performs wire map testing for common wiring faults including open, short, cross, split, and reversed pairs PoE cabling can be checked for correct pin out, voltage and current. It even includes non-contact AC voltage detection in the receiver probe. A must have for anyone installing PoE equipment. Requires 3 x AAA batteries and 1 x 9V battery.
Specifications:

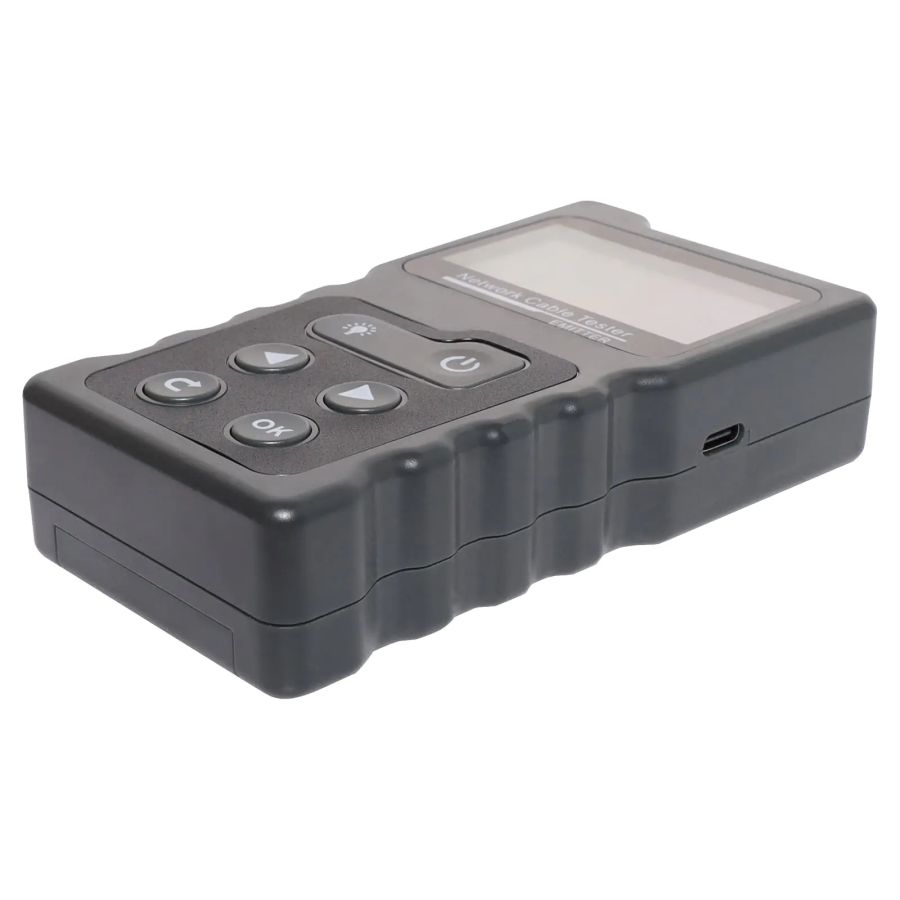

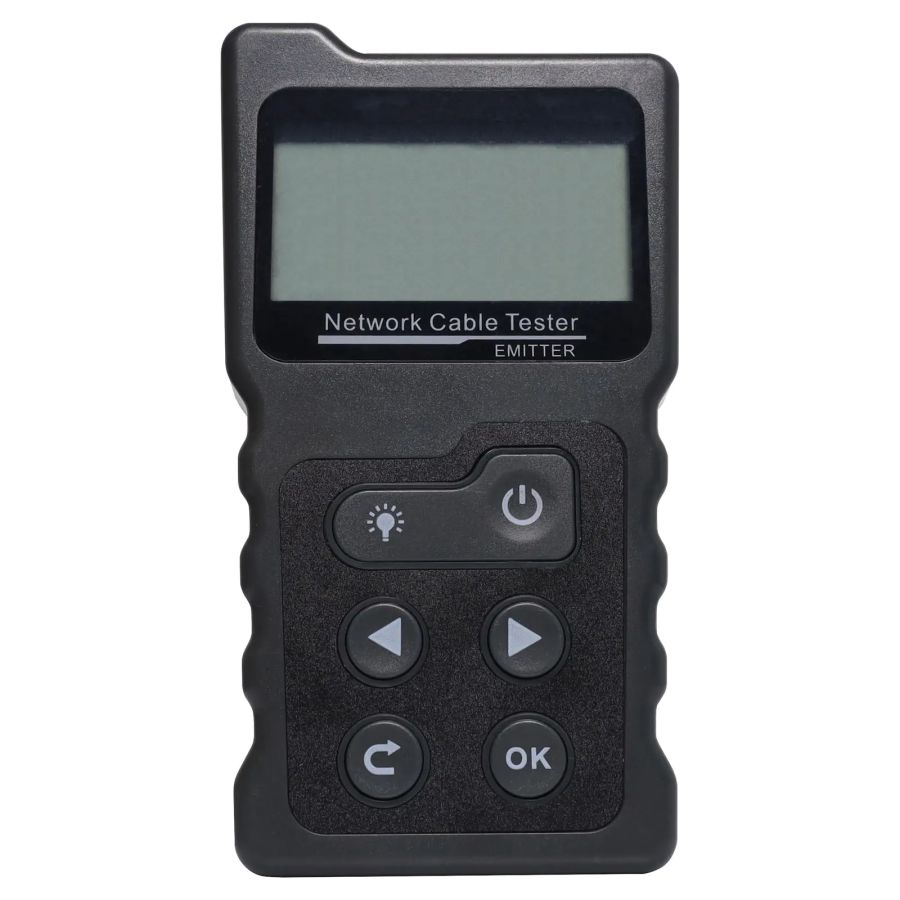

Transmitter
Wiremap Cable tyoe: CAT5, CAT6 (STP &UTP)
Wiremap test with switch directly: Yes
Wiremap Max range: 600m
Test Range length: 2-200m
Accuracy length: ±1.6m
Breakage location: Yes
Max signal voltage scan: 8Vp-p
Frequency: 130KHz
AC filter: Yes
Test Range POE: DC 5-60V standard/non-standard PoE switch
Voltage Display PoE: Yes
PSE Type: IEEE 802.3af/at
LCD Display: 128*64 Dot-matrix with backlight
Power supply: 3 x AAA Batteries (not included)
Low battery warning: 2.7V
Auto-off time: 15min, 30min, 60min, OFF
Voltage protection: DC 48V 5mA
Max working current: <150mA

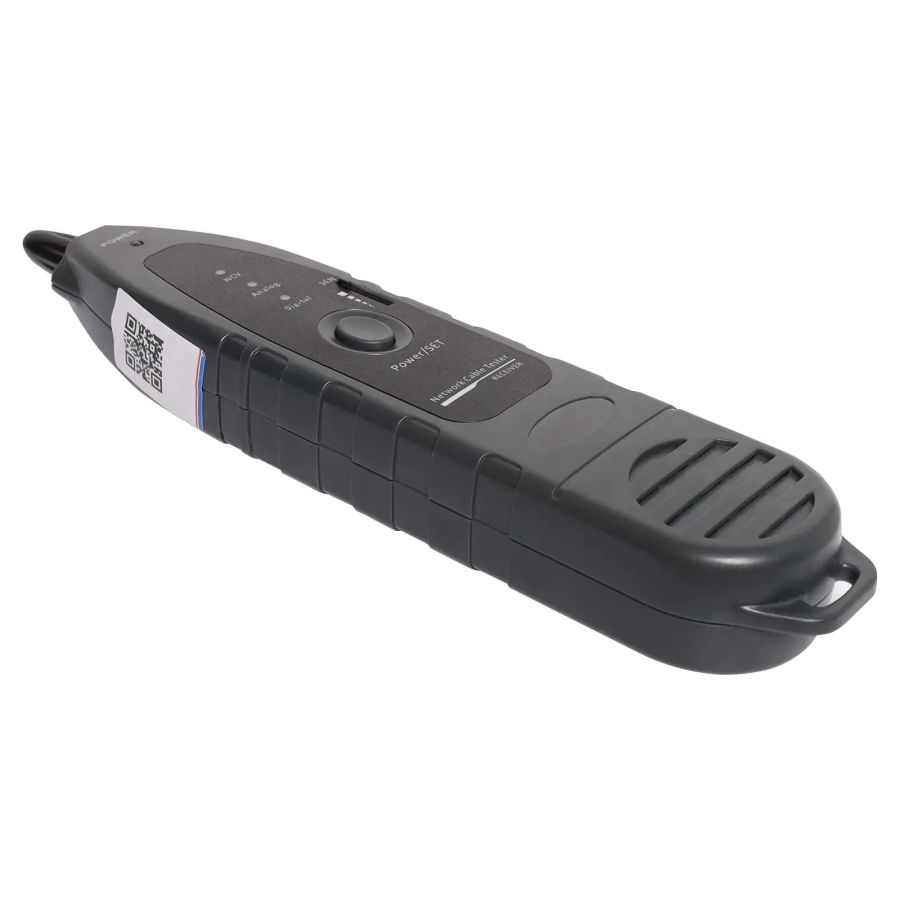

Receiver
Sensitivity adjustable: Yes
AC Voltage detecting: Yes
Lamp: Yes
Battery type: 9V x 1 (not included)
Low battary warning: 6± 0.5V
Max working current: <100mA

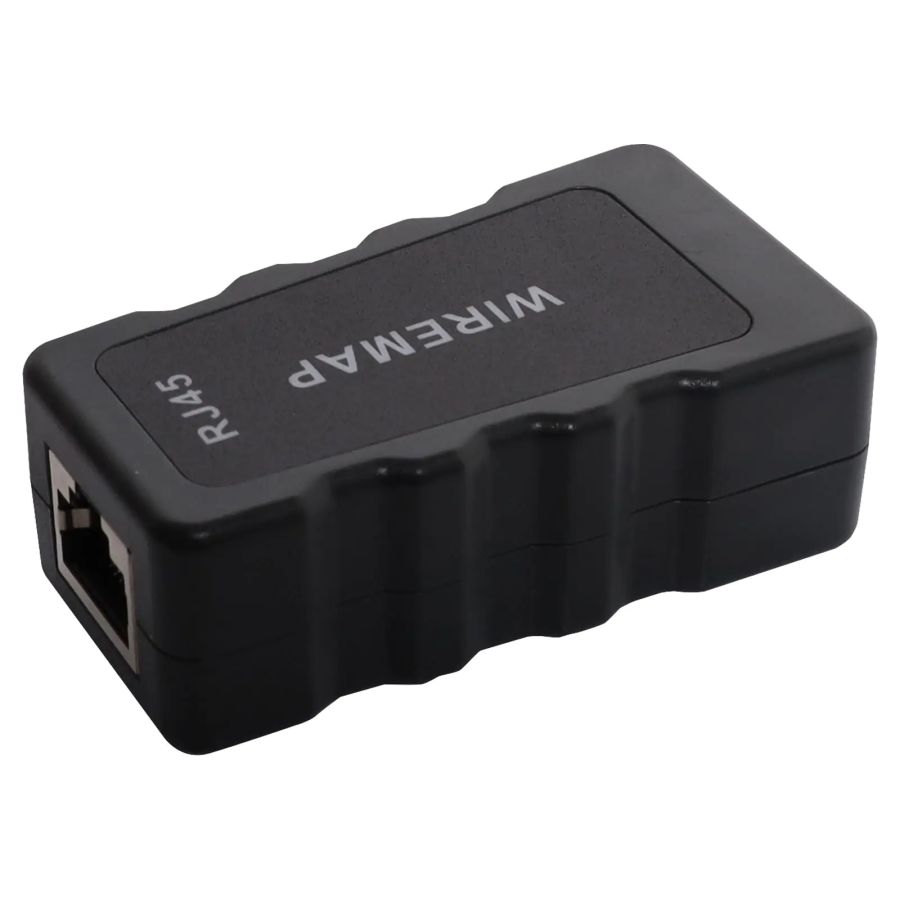

Remote
Wiremap Port: RJ45
Voltage protection: DC48V 5mA
Features:
Continuity test for short circuit and open condition - shows pin configuration
Cable length measurement up to 200m (±1.6m)
Digital, analog and PoE testing modes
802.3af/at PoE port testing with pin detection
Port flash and switch detail display
Easy to read backlit graphical screen
Non-contact AC voltage detection on receiver probe
