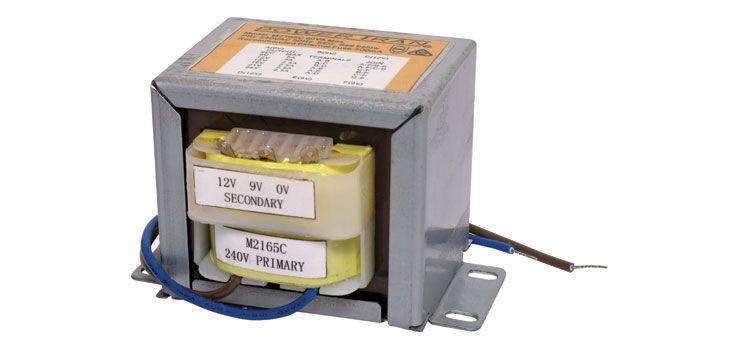

Powertran 240V 60VA EI Core Transformer - 9-24V

[Large image available]

Product May Vary From Image

Our Price:

$44.95

Quantity:

Part No:

557309

Brand:

Powertran Web Site

Manuf No:

M2165C

Usually Ships:

1-3 Days More info

Ship Weight:

1.47 KG Details

Product Description

Powertran EI-Core 240V AC mains transformer with 6.6A dual multi tapped secondary configuration. Two sets of 0V, 9V and 12V secondaries are available at a maximum current of 6.6A (max current when 9V secondaries connected in parallel) . Primary is fitted with 200mm fly leads. Secondary taps have solder tags. Fully electrical authority approved for AS/NZS 61558.2.6.

Note:Must be used with a standard 500mA external fuse. All currents listed are AC.

Secondary Voltages Available:
Voltage : 9V Current : 6.6A*
Voltage : 12V Current : 5A*
Voltage : 15V Current : 2.5A
Voltage : 18V Current : 2.5A
Voltage : 21V Current : 2.5A
Voltage : 24V Current : 2.5A
*Max Current when connected in parallel

Specifications:

Primary voltage: 240V AC
Total VA rating: 60VA
Insulation: Class E (120°C)
Magnetising current: <85mA
Temperature rise: <65°C
Regulation: ˜10%
Recommended primary AC fuse: 500mA
Weight: ˜1.4kg
Primary connection: 200mm fly leads
Secondary connection: Solder tags

*Specifications are subject to change without notice.

Product Warranty

1 Year Return to Base
