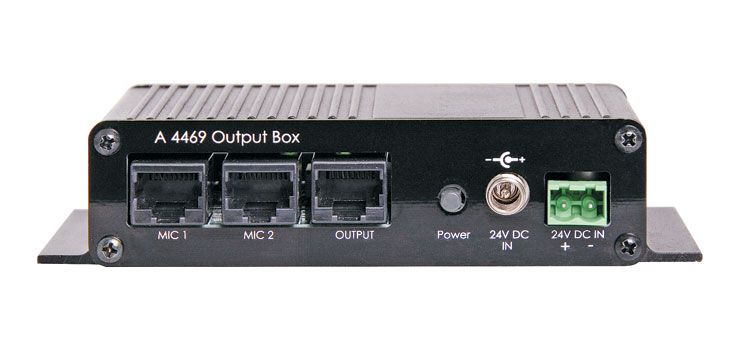

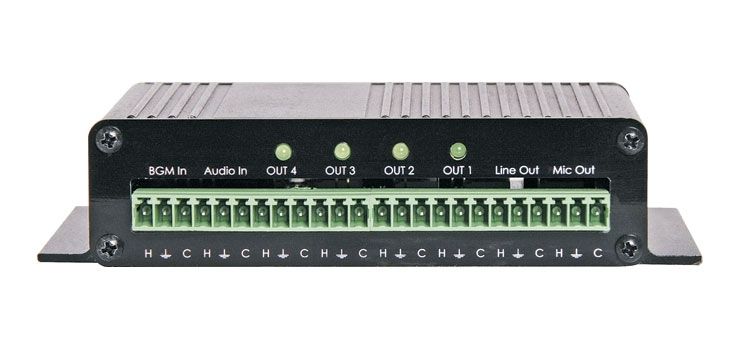

Redback 4 Zone Compact Paging Relay Box To Suit Redback Paging Console

[More images available]

Product May Vary From Image

Our Price:

$194.30

Quantity:

Part No:

550342

Brand:

Redback

Manuf No:

A4469

Usually Ships:

1-3 Days More info

Ship Weight:

0.45 KG Details

Product Description

The A4469 zone relay unit may be installed remotely and has been designed to switch either low level inputs or amplifier outputs and interfaces the A4660 paging console with existing PA systems. Suits for line level or 100V line zone switching. Powered via the supplied 24V DCplug pack. A maximum of two paging consoles can be connected to the A4469 at the same time. These work in a first in, best dressed arrangement. Each unit must be assigned an ID number through DIP switch settings on the rear of the unit. Also now fitted with background music input.

How to connect to A4660 Paging Console

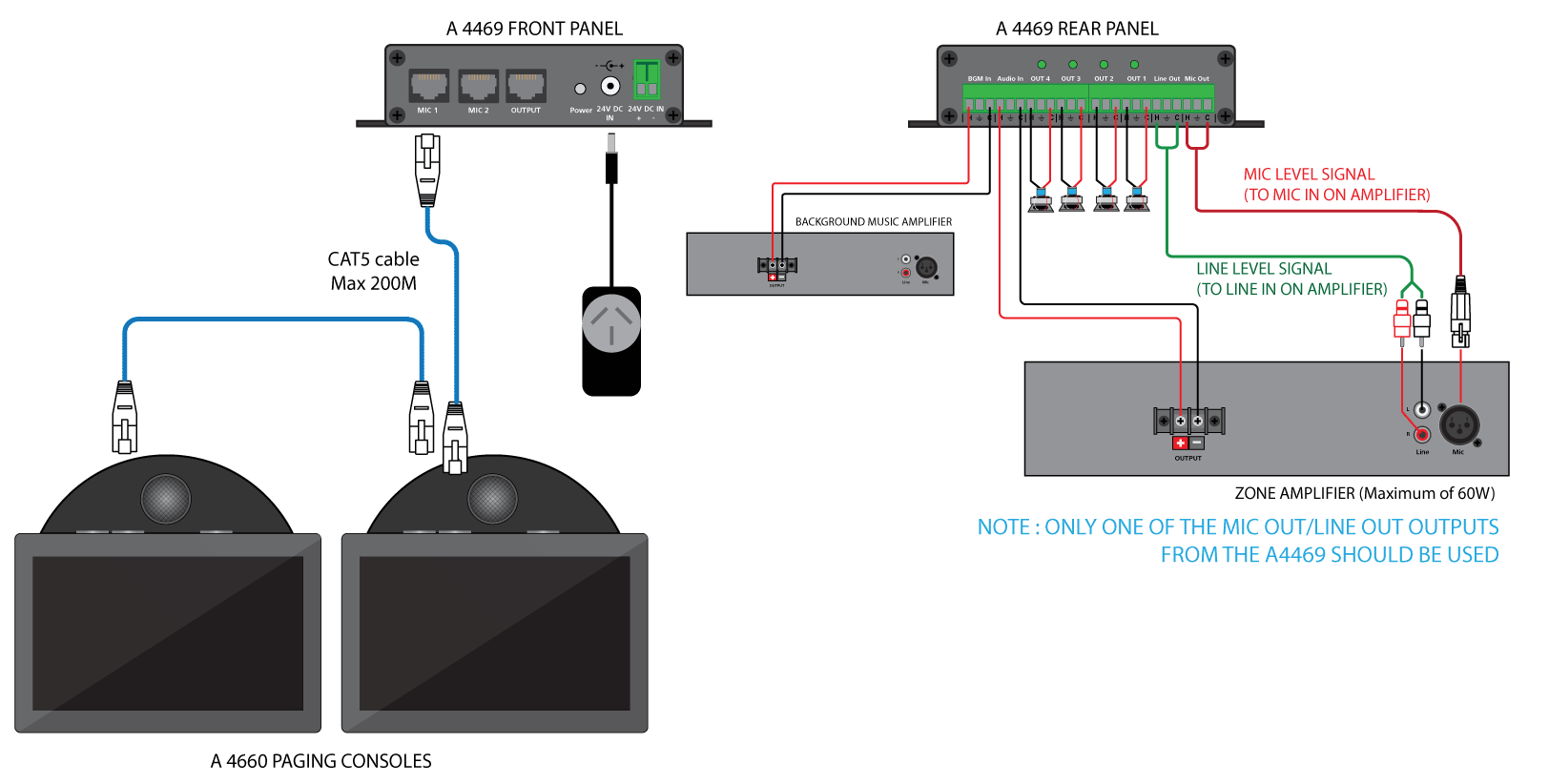

There are multiple configurations for pairing the paging console with the A4469 four zone audio switcher units. Two examples are detailed below. The first details connection between paging console and multiple individual zone amplifiers via either line or mic level (mic level shown in diagram)

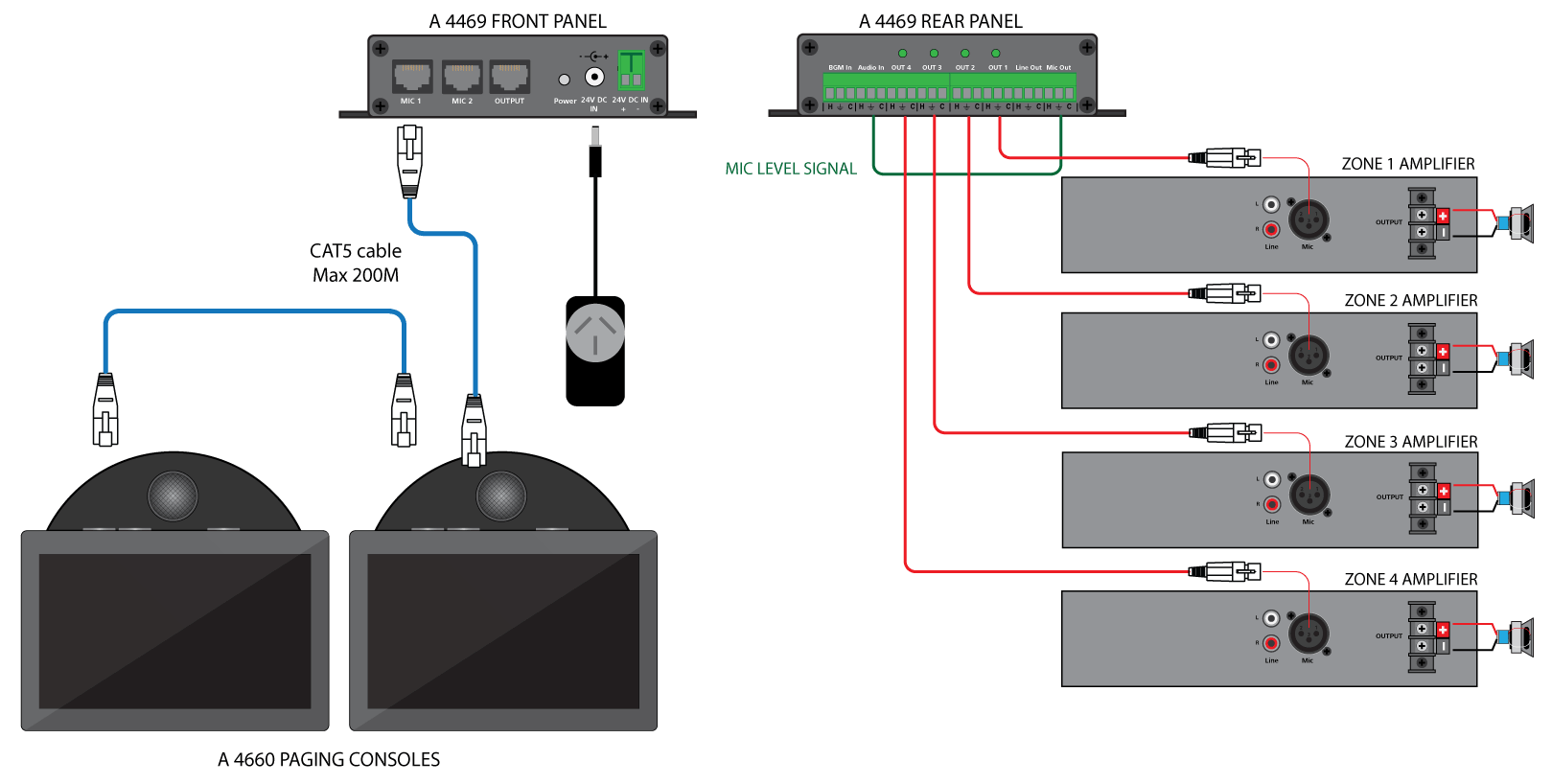

The second configuration allows for a single zone amplifier powering all zones at once. In this configuration the amplifier output is fed into the A4469 and speaker circuits are connected directly to the zone outputs. The A4660 can then be used to page each zone as desired.

A maximum of two paging consoles can be connected to the audio switchers at the same time. These work in a first in, best dressed arrangement. Connection between the A4660 and audio switcher is via a Cat5e cable which carries power and the balanced audio output from the microphone.

Features

Four output zones
Microphone or Line level output
BGM input for background music to all zones

Specifications:

Output Mic Level: 3mV
Output Line Level: 1V
BGM Input Sensitivity: 500mV
Output Connectors
Audio Outputs: Euroblock terminal
Input Connectors
Line Out Box Input: RJ45 8P8C
24V DC Power: 2.1mm JACK (centre +ve)
Controls
Mic Volume: Rear Volume
Chime Volume: Rear Volume
BGM Volume: Rear Volume
General
Power Supply: 4V DC @ 1 Amp
Dimensions: 130W x 70D x 30H
Weight: 0.7 kg

*Specifications are subject to change without notice.

Product Warranty

10 Years
