Generic Vacuum Laser Support with Dust Collector

Product May Vary From Image
Our Price:
$60.50
Quantity:
Part No:
537473
Brand:
Manuf No:
DC-10Vac

DC10Vac
Usually Ships:
Same Day   More info

Ship Weight:
0.5 KG  Details
Product Description

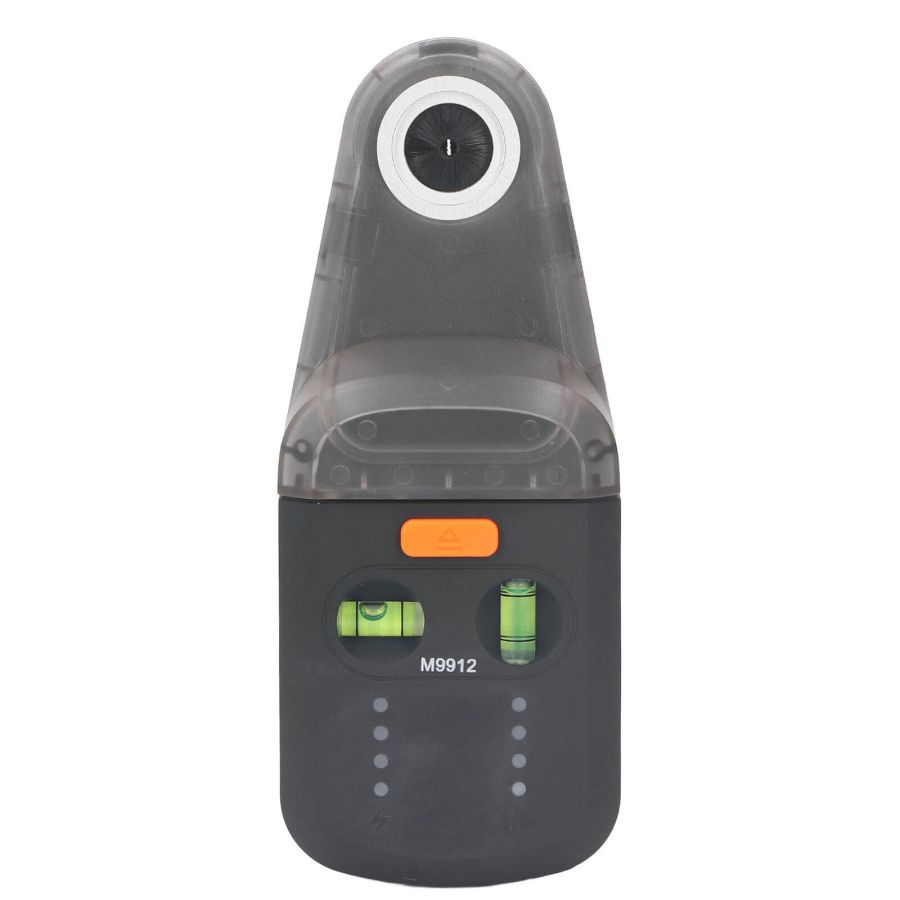

Vacuum laser or camera support with dust collector

 Features:

1. Multipurpose vacuum support bracket incorporating a red level laser together with horizontal and vertical sprit levels, a dust collector as well as a 90-degree mounting bracket with 1/4inch screw together with a 3/8inch adapter and spare suction seal.

2. Detachable Design allows the unit to be used on a wide range of smooth surfaces such as tiles, most wooden surfaces also concrete and painted surfaces supporting in excess of 1Kg on the bracket it is a very versatile tool for mounting lasers and cameras.

3. Long Battery Life, the unit is powered by a built-in large capacity rechargeable lithium battery making it easy to charge from any USB charger

4. The dust collect will collect dust while drilling holes up to 13mm in diameter it does not have a powered suction facility relying on the seal around the drill and the sealing ring against the wall to prevent dust escaping.

Many of these types of units appear to have a suction type dust collector when in  fact they collect the dust by having a seal around the drill bit and seal against the drilling surface.

We tested them and it worked well drilling plaster walls, bricks and metal containing all the swarf from the drilling.

Specification:

Item Type: Electric drilling dust collector with a vacuum laser, spirit levels and mounting bracket

Weight: 531.00g/18.73oz

Material: ABS

Battery Type: Lithium battery (shipped with built in battery)

Battery Capacity: 1800mAh

Noise Value: = 60DB

Laser Power< 1mw

Working Pressure: -55Kpa

Protection Level: IP54

Laser Wavelength: 650nm

Product Size: Approx. 190x77x52mm / 7.5x3.0x2.0in







Product Warranty


1 year return to base
