TP-Link VIGI 5MP Full-Color Dome Network Camera, 1/2.7" Progressive Scan CMOS, 2.8 mm: F1.6, 2880 x 1620 px, IR LED 30m 850nm, 1x RJ45 10/100M, IP67, IK10, d115x85.7 mm

Performance
Infrared (IR) cut-off filter	Yes
Type	IP security camera
Connectivity technology	Wired
Placement supported	Indoor & outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	CE, NTRA, VCCI, KC, BSMI, FCC, IC
Built-in light	Yes
Dynamic range	120 dB
Design
Weatherproof	Yes
IK code	IK10
Form factor	Dome
Product colour	White, Black
Mounting type	Ceiling
International Protection (IP) code	IP67
Housing material	Plastic
Camera
Minimum illumination	0.005 lx
Field of view (FOV) angle	128 °
Tilt angle range	0 - 85 °
Pan range	0 - 360 °
Camera shutter speed	1/3 - 1/10000 s
Lens viewing angle, horizontal	109 °
Lens viewing angle, vertical	57 °
Lens viewing angle, diagonal	128 °
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")
Number of sensors	1
Panoramic camera
Number of Privacy masking areas (panoramic camera)	4
Lens system
Number of lenses	1
Maximum aperture number	1.6
Detect distance	64 m
Observe distance	27 m
Recognize distance	13 m
Identify distance	6 m
Fixed focal length	2.8 mm
Night vision
Night vision	Yes
Night vision distance	30 m
Number of illumination LEDs	1
Infra-red wavelength	850 nm
Video
Noise reduction	Yes
Smart IR	Yes
Region of Interest (ROI) encoding	Yes
Highlight Compensation (HLC)	Yes
Bit rate control	Variable Bit Rate (VBR)
Bit rate	256 Kbps - 6 Mbps
Back Light Compensation (BLC)	Yes
Maximum resolution	2880 x 1620 pixels
Video formats supported	H.264, H.264+, H.265, H.265+
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2688 x 1520, 2880 x 1620
Supported video modes	720p, 1080p, 2560p, 2880p
Frame rate	30 fps
Video streaming	Yes
Total megapixels	5 MP
Video recording	Yes
Audio
Voice codecs	G.711
Signal-to-Noise Ratio (SNR)	52 dB
Sample rate	8 kHz
Built-in microphone	Yes
Network
Bluetooth	No
Ethernet interface type	Fast Ethernet
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Storage
Compatible memory cards	MicroSD (TransFlash)
Built-in HDD	No
Maximum memory card size	256 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Connectivity technology	Wired
Management features
Reset button	Yes
Power
Power source type	DC
Power consumption (typical)	1.5 W
Power consumption (max)	7 W
DC-in jack	Yes
Certificates
Certification	CE, NTRA, VCCI, KC, BSMI, FCC, IC
Operational conditions
Operating temperature (T-T)	-30 - 60  °C
Storage temperature (T-T)	-40 - 60  °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Weight & dimensions
Package type	Box
Height	85.7 mm
Diameter	11.5 cm
Weight	280 g
Package weight	470 g
Packaging content
Number of cameras	1
Package type	Box

---

All The Colors, All The Time
5MP Full-Color Dome Network Camera


24/7 Stunning Visual Experience
5MP Super-High Definition
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 5MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.


SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including WDR, 3D DNR, Smart IR, and Night Vision.


Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.


Comprehensive AI Detection with Pre-Set Rules Supported
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.


People & Vehicle Analytics
Quickly find people and vehicles of interest using a series of attributes.


People Analytics
Filter people of interest by various attributes, such as gender, hair length, and clothing, allowing you to improve search efficiency.


Vehicle Analytics
Identify and search for vehicles of interest based on vehicle color and type for targeting meaningful events in a short time.


No More Silent Surveillance
Built-In Microphone
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.

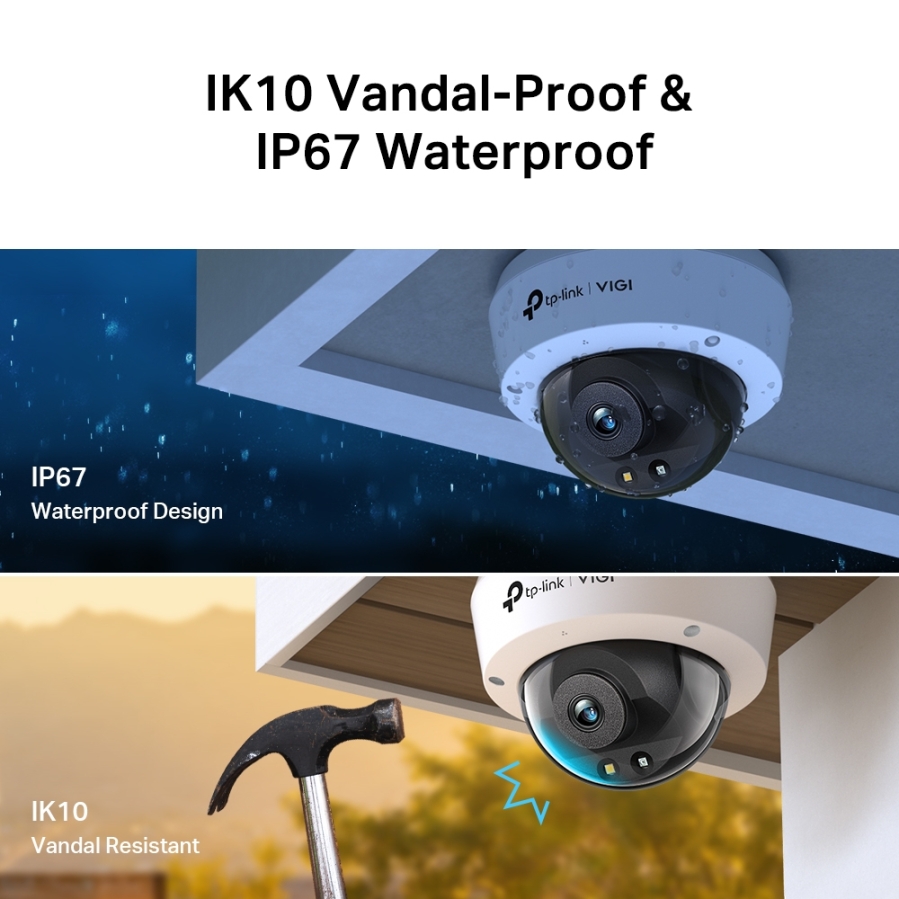

IK10 Vandal-Proof & IP67 Waterproof
With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

Smart Video Coding by H.265+
Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

Flexible Storage
Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).

PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

Flexible Installation
Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.


Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.


One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build – whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
