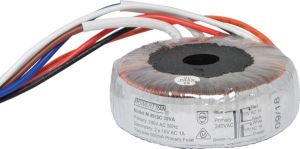

Powertran 240/15+15 30VA Toroidal Transformer

[Large image available]

Product May Vary From Image

Our Price:

$52.80

Quantity:

Part No:

528839

Brand:

Powertran Web Site

Manuf No:

M4915C

Usually Ships:

Order In More info

Ship Weight:

0.68 KG Details

Product Description

These low profile 30VA transformers will fit inside our 1 Unit 19" rack cases.

Toroidal transformers are becoming increasingly popular due to their improved magnetic properties and also that they can be made to a lower profile than a standard solenoid core transformer, allowing for equipment of similar power to be of a lower profile such as rack mounted devices.

The advantage of the toroidal (donut) shape is that due to its symmetry the amount of magnetic flux that escapes outside the core (leakage flux) is minimised, therefore it radiates less electromagnetic interference (EMI) to nearby circuits or equipment. EMI is of increasing importance in modern low power, high frequency electronics.

Note: Must be used with a 500mA external AC fuse. Included mounting hardware
1 x Mounting plate
1 x Gasket
1 x Mounting bolt
1 x Nut

Wiring

Secondary (SEC) Current A
Current available where secondaries are connected in parallel.

Secondary (SEC) Current B
Current available where secondaries are connected in series.

Mounting

Features

Supplied with 1 rubber washer, bolt and nut.
Lower electrically induced noise demanded by compact equipment.
High efficiency enabling conservative rating whilst maintaining size advantages.
The toroidal transformer is accepted as the industry standard, replacing the laminated type as toroidal transformers offer advantages in size, weight, and lower radiated field.

Primary voltage: 240V AC
Secondary voltage: 15V (parallel), 30V (series)
Secondary current: 2A (parallel), 1A (series)
Regulation: Better than 10%
Maximum temperature rise: 75C
Dielectric strength: 4000V for 1 Minute
Insulation class: Class B (130C)
Tolerance: 2%

*Specifications are subject to change without notice.

Product Warranty

1 year return to base
