| Performance |
|---|
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 11 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |

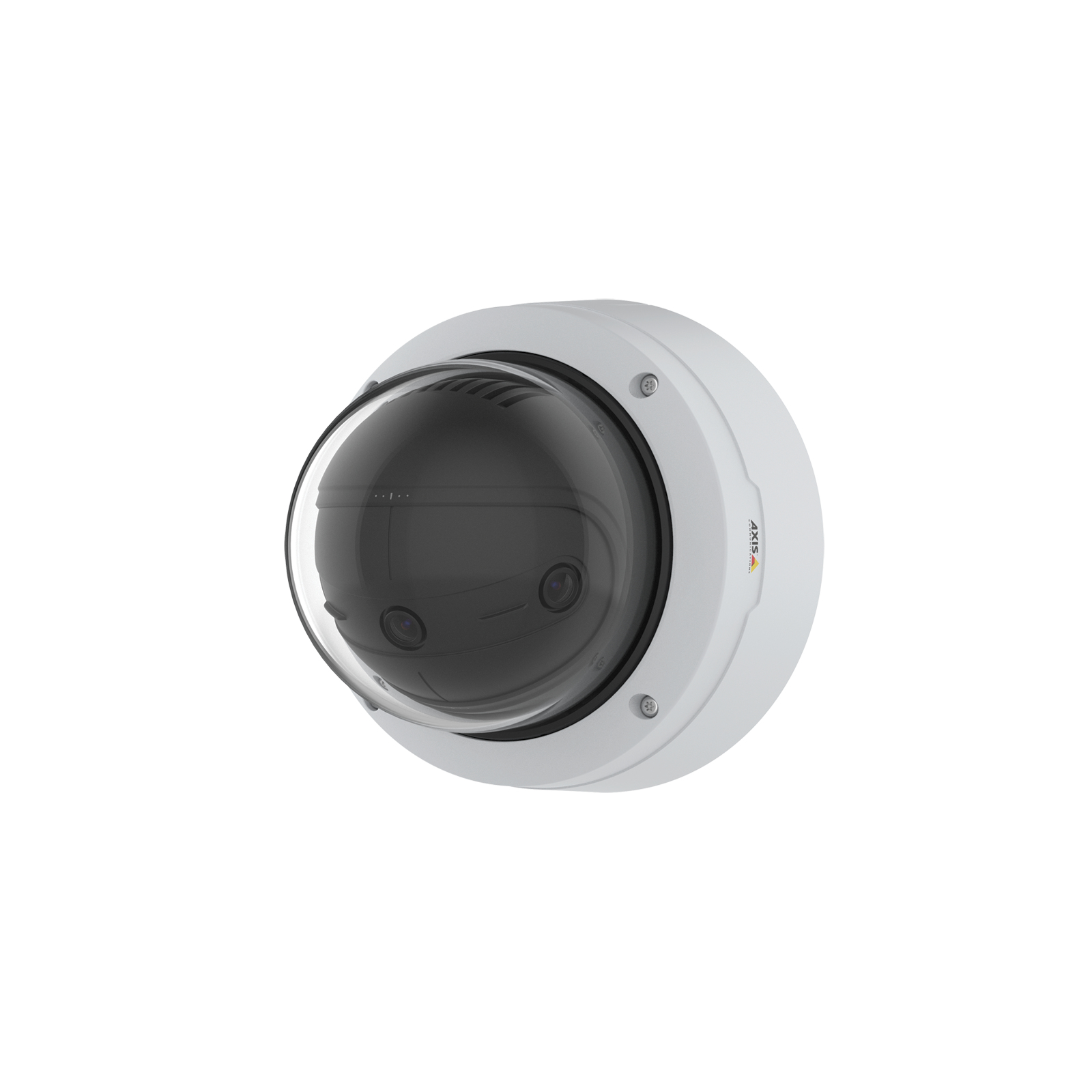

| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | EAC, EN 55032 A, EN 55035, EN 50121-4,
IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35, CISPR 24, CISPR 35
IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22, IS 13252
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6,
IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78,
IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 4X, NEMA TS 2 (2.2.7-2.2.9), MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 512.6)
NIST SP500-267 |
| Design |
|---|
| IK code | IK10 |
| Product colour | White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Camera |
|---|
| Minimum illumination | 0.05 lx |
| Tilt angle range | 0 - 50° |
| Pan range | -180 - 180° |
| Camera shutter speed | 1/91000 - 1/25, 1/50000 - 1/25 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 180° |
| Lens viewing angle, vertical | 90° |
| Progressive scan | Yes |
| Image sensor |
|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Lens system |
|---|
| Maximum aperture number | 2 |
| Fixed focal length | 3.2 mm |
| Video |
|---|
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Maximum resolution | 5120 x 2560 pixels |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 13 MP |
| Audio |
|---|
| Voice codecs | G.711, G.726, OPUS |
| Audio system | 2-way |
| Network |
|---|
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS , TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT, Syslog, Link-Local address (ZeroConf) |
| Storage |
|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Built-in HDD | No |
| Flash memory | 512 MB |
| Ports & interfaces |
|---|
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security |
|---|
| Security algorithms | EAP-TLS, FIPS 140-2 |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Management features |
|---|
| Web-based management | Yes |
| Power |
|---|
| Power source type | PoE |
| Power consumption (typical) | 11 W |
| Power consumption (max) | 18 W |
| Certificates |
|---|
| Certification | EAC, EN 55032 A, EN 55035, EN 50121-4,
IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35, CISPR 24, CISPR 35
IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22, IS 13252
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6,
IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78,
IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 4X, NEMA TS 2 (2.2.7-2.2.9), MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 512.6)
NIST SP500-267 |
| Operational conditions |
|---|
| Operating temperature (T-T) | -40 - 50°C |
| Storage temperature (T-T) | -40 - 65°C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions |
|---|
| Width | 206 mm |
| Height | 221 mm |
| Weight | 2.2 kg |
| Packaging content |
|---|
| Number of cameras | 1 |
| Other features |
|---|
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Logistics data |
|---|
| Harmonized System (HS) code | 85258900 |
