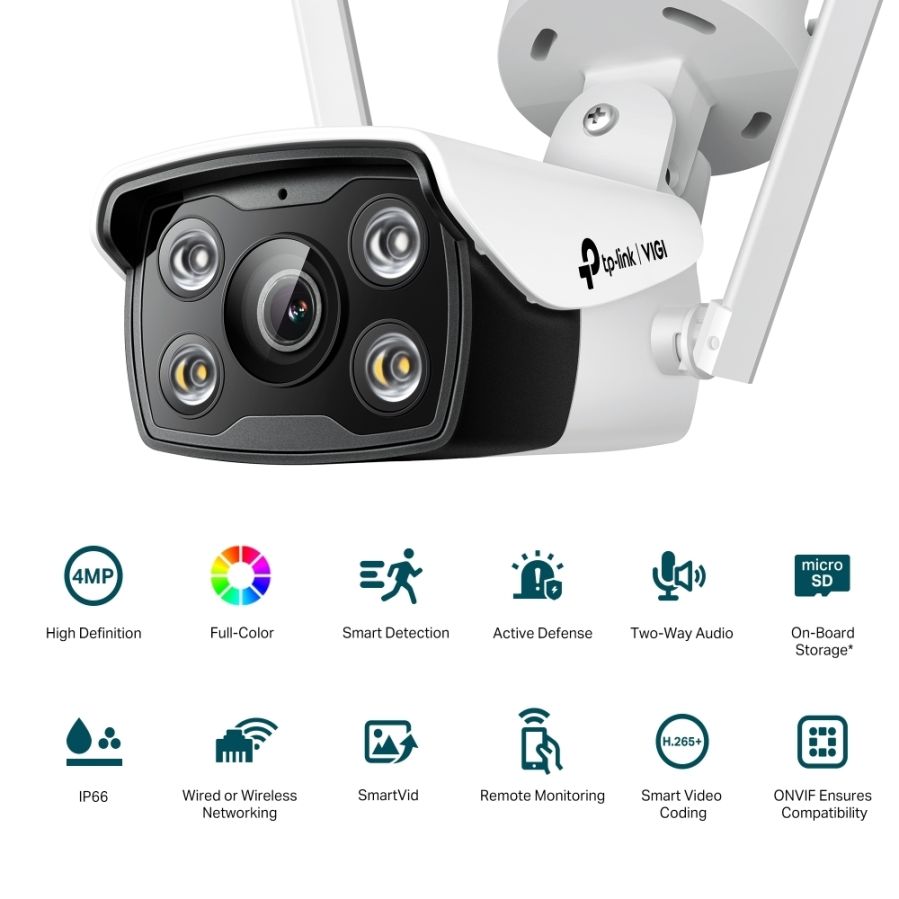

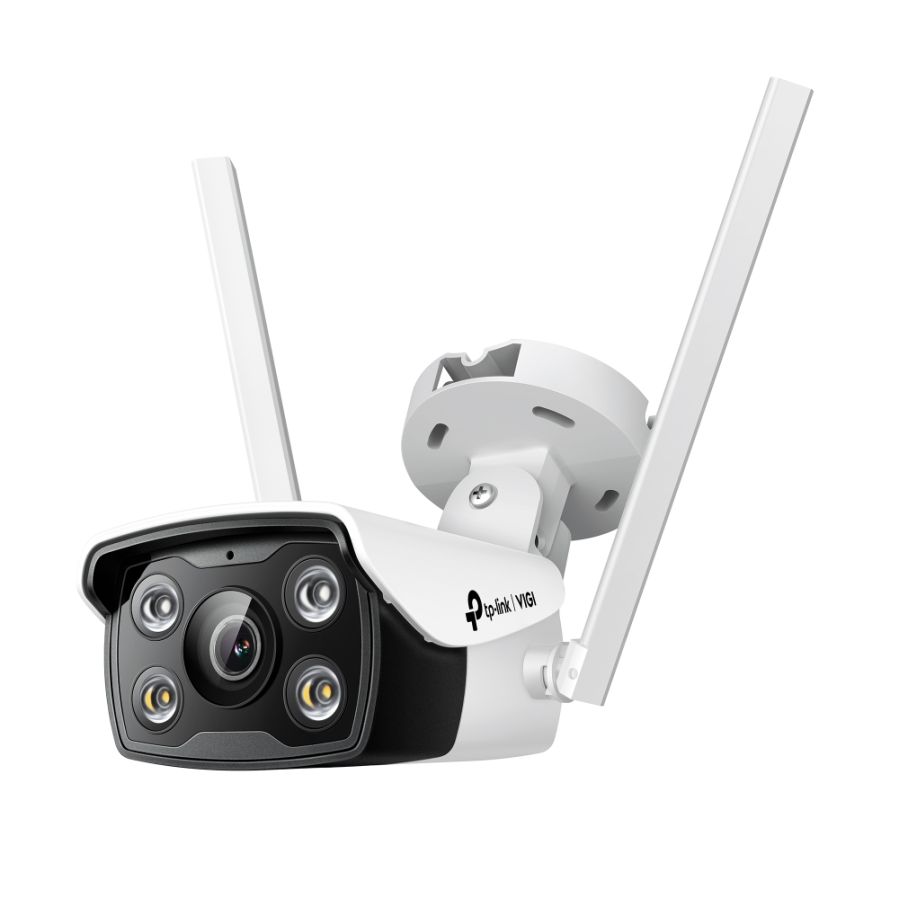

TP-Link VIGI C340 VIGI 4MP Outdoor Full-Color Bullet Network Camera -
4mm
Overview
- 4MP High Definition: The camera comes with 4MPmore than enough pixels to
pick up some of the more discrete details.
- 24h Full-Color: Obtain 24-hour color details, even in pitch-black
conditions, via high-sensitivity sensor and included spotlight
LEDs.
- Waterproof: Reliable IP66 for stable outdoor performance.
- Smart Detection (human detection, motion detection, area intrusion,
line-crossing, video tampering): Receive notifications and check feeds when
someone crosses a boundary, enters an area you've set, or obstructs the
camera.
- H.265+: Without using any extra bandwidth, your cameras transmit
compressed crystal-clear video to save disk space, ease network loads, and
reduce monitoring costs without sacrificing image quality.
- PoE/12V DC: Two power supply ways not only give you more convenience but
also make your wiring remarkably easy.
- VIGI App: Manage your security from the palm of your hand with the VIGI
app.
Specifications
NETWORK |
Security |
Password
Protection, HTTPS Encryption, IP Address Filter, Digest
Authentication |
Protocol |
TCP/IP,
UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP,
SSL/TLS |
API |
ONVIF |
Simultaneous
Live View |
3
Main Streams & 3 Sub-Streams |
GENERAL |
Package
Contents |
VIGI
Network Camera |
Quick
Start Guide |
Waterproof
Cable Attachments |
Mounting
Accessories (Screws, Drywall Anchors, Hex Key) |
Operating
Temperature |
-3060
C |
Certifications |
CE,
RCM, BSMI, VCCI, RoHS, NTRA, KC |
Dimensions(
H X W X D ) |
78
x 70 x 174 mm |
Material |
Plastic |
Weight |
195g |
General
Features |
Two
Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP
Listening |
Power
Requirements |
12V
DC 5%, 5.5mm Coaxial Power Plug |
PoE
(802.3af/at, class 0) |
CAMERA |
Sensor |
1/3"
Progressive Scan CMOS |
Lens |
Fixed
focal lens (2.8 mm / 4 mm / 6 mm) |
Aperture |
2.8
mm: F1.6 |
4
mm: F1.6 |
6
mm: F1.6 |
Lens
Mount |
M12 |
Viewing
Angle |
(4mm)
Horizontal FOV: 79, Vertical FOV: 43, Diagonal FOV:
93 |
Day/Night
Mechanism |
IR
Cut Filter |
IR
Working Distance |
30m |
Illumination
Distance |
30
m |
Minimum
Illumination |
0
lux with IR/white Light |
Weatherproof
Rating |
IP66 |
Digital
Noise Reduction |
3D
DNR |
WDR |
DWDR |
VIDEO/IMAGE |
Video
Compression |
Main
stream: H.265+/H.265/H.264+//H.264 |
Sub-Stream:
H.265/H.264 |
Frame
Rate & Resolutions |
Main
Stream |
Frame
Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps,
30fps |
Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080 |
Sub-Stream |
Frame
Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps,
30fps |
Resolution:
640x480, 352x288, 320x240 |
Video
Streaming |
Main
Stream |
Sub-Stream |
Settings |
Mirror,
Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance
Adjustable by Client Software |
Enhancement |
BLC/3D
DNR/Prevent Overexposure to Infrared Light |
Video
Bit Rate |
Main
Stream: 256 Kbps to 4 Mbps |
Sub-Stream:
64 Kbps to 512 Kbps |
SMART
FEATURE-SET |
Smart
Event |
Area
Intrusion Detection, Line-Crossing Detection, Human
Detection |
Basic
Event |
Motion
Detection, Camera Tampering Detection, Exception ( illegal
login) |
Linkage
Method |
Trigger
Notification: ONVIF, HTTPS |
Region
of Interest |
1
Region |
INTERFACES |
Network
Interface |
1
RJ45 10/100M Self-Adaptive Ethernet Port |
Audio
Input |
Built-in
Microphone |
Audio
Output |
Built-in
Speaker |
Button |
Reset
Button |
Slot |
Micro
SD
card |
