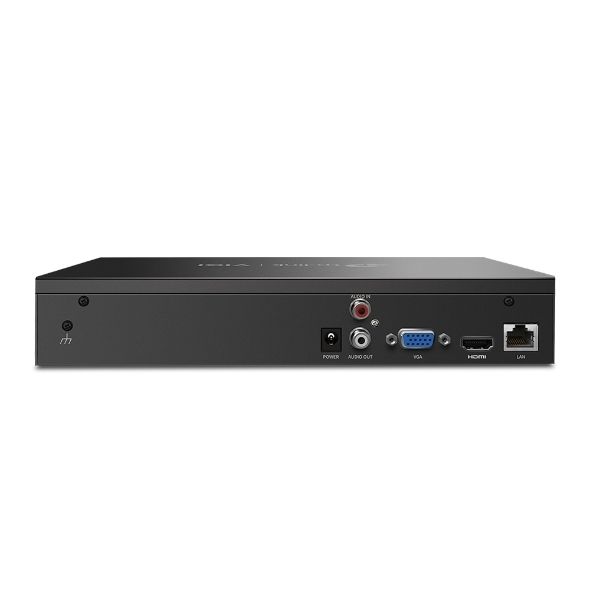

TP-Link VIGI NVR1016H VIGI 16 Channel Network Video
Recorder
Overview
- 24/7 Continuous Recording: Stores up to 10 TB of footage from connected
cameras to secure your data for quick, convenient access.
- 16-Channel Real-Time Live View: Sharp image definition up to 8MP and a
16-channel display ensures you capture every detail, from every
angle.
- Quick Lookup and Playback: Find the target footage easily by date, event
types, and tags. Replay with variable playback speeds to quickly review
footage.
- Remote Monitoring: Dedicated VIGI app is developed for remote monitoring,
providing ease and convenience.
- H.265+: Without using any extra bandwidth, your camera transmits
compressed crystal-clear video to save disk space, ease network loads, and
reduce monitoring costs without sacrificing image quality.
- ONVIF Ensure Compatibility*: Easily add IPCs from VIGI and other brands to
establish a powerful and varied network thanks to barrier-free
compatibility.
- 1 HDD Interface (up to 10 TB): Stores up to 10 TB (720 days of video) on a
SATA hard drive, keeping your data storage secured locally.
- Two-Way Audio: With voice intercom support, carry two-way conversations
while watching your feed from anywhere. Suitable for management.
Specifications
|
NETWORK |
|
Protocol |
TCP/IP,
DHCP, DNS, NTP, UPnP |
|
Incoming
Bandwith |
80
Mbps |
|
Outgoing
Bandwidth |
60
Mbps |
|
GENERAL |
|
Operating
Temperature |
-1055
C |
|
Dimensions(
H X W X D ) |
246.2
x 148.2 x 45 mm |
|
Weight |
578.5
g |
|
External
Power Supply |
12V
DC/1.5 A |
|
Power
Consumption |
4.25
W (without disk) |
|
13.10
W (with disk) |
|
VIDEO/IMAGE |
|
Video
Input |
16-Channel
IP Video Input, up to 8 MP Resolution |
|
Video
Output |
Recording
Resolution: 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA
/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
HDMI/VGA |
|
Output
Resolution: 1920 x 1080p/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1680 x
1050/60Hz, 1440 x 900/60Hz |
|
DECODING |
|
Decoding
Format |
H.265+/H.265/
H.264+/H.264 |
|
Live
View/Playback Resolution |
8
MP/5 MP/ 4 MP/3 MP/1080p/UXGA/ |
|
720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Capability |
1-ch
@ 8 MP, 2-ch @ 4 MP, 4-ch @ 2 MP |
|
HARD
DISK |
|
SATA |
1
SATA Interface |
|
Capacity |
Up
to 10 TB |
|
INTERFACES |
|
Network
Interface |
1
RJ-45 10/100 Mbps Self-Adaptive Ethernet
Interface |
|
USB
Interface |
2x
USB
2.0 |
