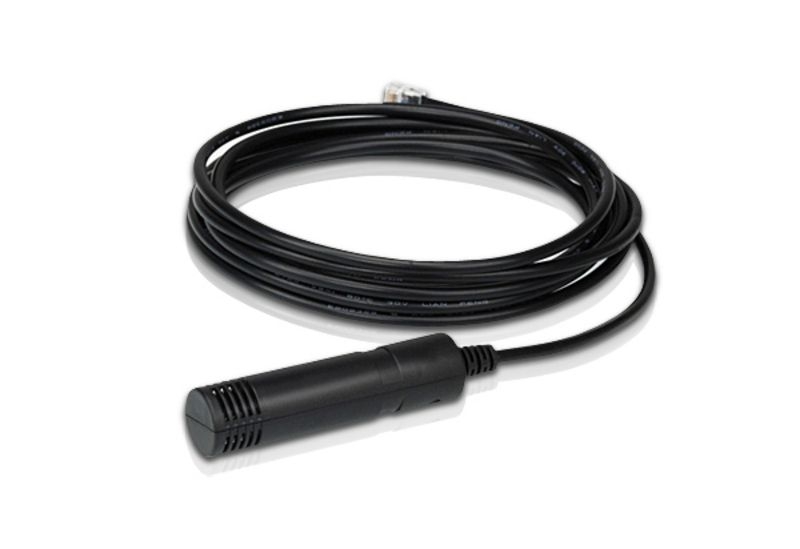

Aten EA1240 Temperature & Humidity Sensor
Overview
- Measurement range: 0 – 40°C (Temperature); 30 – 80% RH (Humidity)
- Measurement accuracy: +/- 1°C (Temperature); +/- 3% RH (Humidity)
- Compact design – built in 3 m cable
- High sensitivity
For environmental monitoring and management, ATEN provides sensor probes that
work in tandem with the Power Distribution Units, which enable you to get
readings of temperate and humidity. Environmental conditions can be monitored
with alarms according to customizable minimum/maximum thresholds set for
temperature and humidity.
*The Sensor is an optional accessory. You can use the ATEN PDU without
environmental sensors. However, if you want to have complete energy management
of your data center with the full use of ATEN solutions, a sensor installation
is required.
Package Contents
- 1x EA1240 Temperature & Humidity sensor
- 1x Sensor mount
- 4x Tie wrap
- 3x Adhesive cable tie holder
Features
- Measurement range: 0 – 40°C (Temperature); 30 – 80% RH (Humidity)
- Measurement accuracy: +/- 1°C (Temperature); +/- 3% RH (Humidity)
- Compact design – built in 3 m cable
- High sensitivity
- Easy operation
Diagram
Specifications
|
Connectors |
RJ-11
Male |
|
Measurement |
|
Range |
Temperature: 0 -
40C |
|
Humidity: 30 80%
RH |
|
Accuracy |
Temperature: +/-
1C |
|
Humidity: +/- 3 %
RH |
|
Supply
Voltage |
5 VDC
(Max) |
|
Current
Consumption |
5mA(Max);
2mA(Avg.) |
|
Environmental |
|
Operating
Temperature |
0 -
55C |
|
Storage
Temperature |
-20 -
70C |
|
Humidity |
< 95%
RH |
|
Physical
Properties |
|
Housing |
Plastic |
|
Weight |
0.06
kg |
|
Cable
Length |
3
m |
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH format. |
