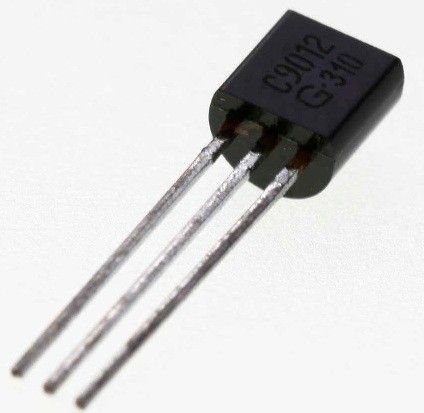

C9012 (5pcs) PNP EPITAXIAL PLANAR TRANSISTOR (GENERAL PURPOSE/ SWITCHING)

[Large image available]

Product May Vary From Image

Our Price:

$3.75

Quantity:

Part No:

446389

Brand:

NoBrand

Manuf No:

C9012

Usually Ships:

Same Day More info

Shipping:

Free Shipping Available

Product Description

C9012 PNP EPITAXIAL PLANAR PNP TRANSISTOR (GENERAL PURPOSE/ SWITCHING)

Pack of 5

1W OUTPUT AMPLIFIER OF POTABLE
RADIOS IN CLASS B PUSH-PULL OPERATION
• High total power dissipation(PT=625mW)
• High collector Current (Ic=-500mA)
• Complementary to 2N9013
• Excellent hEF Linearity

Rating Symbol Value Uint
Collector Base Voltage VCBO -40 V
Collector Emitter Voltage VCEO -20 V
Emitter Base Voltage VEBO -5 V
Collector Current Ic -500 A
Collector Dissipation Pc 625 W
Junction Temperature Tj 150 0
C
Storage Temperature Tstg -55 ~150 0
C

Product Warranty

1 Year Return to Base
