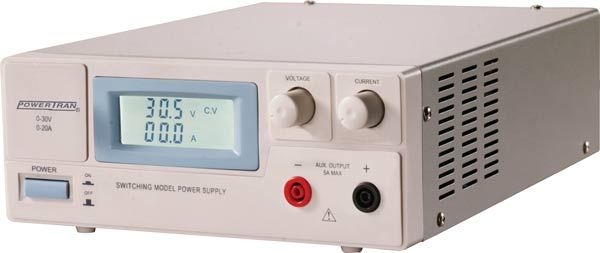

Powertran 30V 20A Regulated Bench Top Power Supply

Product May Vary From Image
Our Price:
$419.50
Quantity:
Part No:
433446
Brand:
Powertran  Web Site
Manuf No:
M8310
Usually Ships:
Same Day   More info
Ship Weight:
3 KG  Details
Product Description
A compact, efficient bench top power supply for use in servicing, repair and design of electronics. The low noise switchmode design offers excellent regulation for low current requirements. Offers the flexibility of both wide adjustable voltage and current range. Size: 336W x 87H x 214Dmm. Weight: 2.9kg.

Features

  • Up to 20A output
  • 0-30V adjustable
  • High efficiency switchmode design
  • Over temperature, voltage and overload protection
  • Low ripple &noise
  • High RFI stability

Specifications

  • Input voltage: a.c. 220-240V @ 50Hz
  • Output voltage: 0 - 30V d.c.
  • Output current max: 20A
  • Supply regulation: CV=1%+10mV
  • Load regulation: CV=1%+5mV
  • Ripple: 100mVp-p
  • Protection: Current limiting
  • Voltmeter: LCD ±2% +3 counts
  • Ammeter: LCD ±2% +3 counts
  • Operating Temperature: 0șC-40șC
  • Operating Humidity: 90%
  • Operating time: 8hrs
  • Dimensions: 87 x 214 x 336mm

      • *Specifications are subject to change without notice.



Product Warranty


12 Month Return To Base
