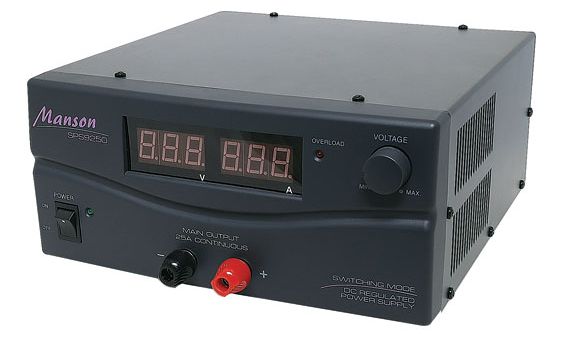

Manson Benchtop Lab Power Supply - 3 to 15V, 25A

Boasting a massive 25A this power supply is ideal for testing 2 way radios, car stereos, high power RF transmitters, inverters and the like. The output voltage can either be fixed at 13.8V or fully variable from 3 – 15V via the front panel control. When in the fixed 13.8V mode; the front panel control is disabled. It incorporates switchmode circuitry eliminating the need for a bulky, heavy mains transformer. Digital panel meters are included for both output voltage and current, thus keeping weight and size to a minimum. Perfect for test bench, service centres etc.

*Note current stock is black in colour.

Features:

• 3 to 15V @ 25A output • Regulated variable output voltage or fixed 13.8V (selectable) • Digital LED meters • Overload & short circuit protected • Extremely low ripple & noise • Excellent regulation • Highly efficient switchmode design

Specifications:

Voltage Output: 3 to 15V DC adj. @ 0-25A Auxiliary Outputs: NA Ripple & Noise: Less than 5mV Line Regulation: 50mV ±10% Load Regulation: 200mV 0-100% Load Display: Twin LCD meters Dimensions: 220W x 110H x 220L mm Net Weight: 3.2kg

1 Year Return to Base
