Vivotek SD8324E Speed Dome Network Camera - D1 SONY Exview HAD CCD Sensor, 30 FPS @ D1, 18x Zoom Lens, Weather-Proof IP66-Rated And NEMA4X Housing, Built-in SD/SDHC/SDXC - White

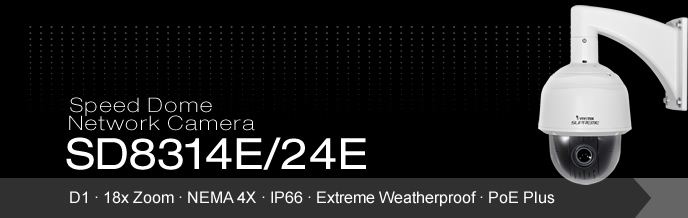

D1 18x Zoom NEMA 4X IP66 Extreme Weatherproof PoE Plus Speed Dome Network Camera SD83x4E
Overview
VIVOTEK SD8314E/24E is part of the SUPREME series product line offering D1 resolution with superb image quality. Adopting a 18x optical zoom lens, the SD8314E/24E is able to capture details at top-notch quality. The IP66- and NEMA 4X-rated housing protects the camera body against rain, dust, and corrosion within a wide temperature range of between -40C to 55C. This feature ensures operation under extreme weather conditions and hazardous environments. It is especially suitable for monitoring wide open indoor/outdoor spaces such as airports, highways and parking lots where high-level reliability and precision are always required.
The SD8314E/24E supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with resolution up to 30 fps @ D1. Boasting WDR Pro Technology, the SD8314E/24E can also cope with challenging lighting conditions and generate image quality close to the capabilities of the human eye. With a sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and 220-degree tilt. Users can also easily control the lens position via a mouse or a joystick to track the object of interest and set up to 256 preset positions. With the built-in auto tracking feature, the SD8314E/24E provides instantaneous reaction to suspicious moving objects in wide area locations before operators are aware of activity.
As with all VIVOTEK true day/night cameras, the SD8314E/24E features a removable IR-cut filter, maintaining clear images 24 hours a day. With Audio Detection, by recognizing increases or decreases in sound volume, an additional layer of intrusion detection is ensured. With other advanced features such as SD/SDHC/SDXC card slot, 802.3at compliant PoE Plus and 30 fps high quality video, the SD8314E/24E is the best choice for the most demanding outdoor surveillance applications.
Features
- D1 SONY Exview HAD CCD Sensor
- 30 fps @ D1
- 18x Zoom Lens
- WDR Pro for Unparalleled Visibility in High Contrast Environments
- Removable IR-cut Filter for Day & Night Function
- 360 Continuous Pan and 220 Tilt
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- Weather-proof IP66-rated and NEMA4X Housing
- -40C ~ 55C Wide Temperature Range for Extreme Weather Conditions
- Audio Detection for Instant Alerts
- Auto tracking for Moving Objects
- Built-in 802.3at Compliant PoE Plus
- 3D Privacy Masks for Additional Protection
- Built-in SD/SDHC/SDXC Card Slot for On-board Storage
Specifications
System Information
| CPU |
- Multimedia SoC (System-on-Chip)
|
| Flash |
|
| RAM |
|
|
Camera Features
| Image sensor |
|
| Maximum Resolution |
- 720x480/NTSC (SD8314E)
- 720x576/PAL (SD8324E)
|
| Lens Type |
- 18x optical zoom
- Auto focus
|
| Focal Length |
|
| Aperture |
|
| Auto-iris |
|
| Field of View |
- 3 ~ 48 (horizontal)
- 2 ~ 37 (vertical)
- 4 ~ 58 (diagonal)
|
| Shutter Time |
|
| WDR Technology |
|
| Day & Night |
- Removable IR-cut filter for day & night function
|
| Minimum Illumination |
- 0.01 Lux @ F1.4 ( Color ), 50 IRE (Color)
- 0.001 Lux @ F1.4 ( B/W ), 50 IRE (B/W)
|
| Pan speed |
|
| Pan range |
|
| Tilt speed |
|
| Tilt range |
|
| Preset Locations |
- 256 preset locations, 40 presets per tour
|
| Pan / Tilt / Zoom |
- 48x digital zoom (4x on IE plug-in, 12x built-in)
- Auto pan mode
- Auto patrol mode
|
| On-board Storage |
|
|
Video
| Compression |
|
| Maximum Frame Rate |
- SD8314E (In all compression)
- SD8324E (In all compression)
|
| Maximum Streams |
|
| S/N Ratio |
|
| Dynamic Range |
|
| Video Streaming |
- Adjustable resolution, quality and bit rate
|
| Image Settings |
- Adjustable image size, quality and bit rate
- Time stamp, text overlay, flip & mirror
- Configurable brightness, contrast, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24)
- Scheduled profile settings
|
|
Audio
| Audio Capability |
- Two-way Audio (full duplex)
|
| Compression |
|
| Interface |
- External microphone input
- External line output
|
|
Network
| Users |
- Live viewing for up to 10 clients
|
| Protocols |
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
|
| Interface |
- 10 Base-T / 100BaseTX Ethernet (RJ-45)
|
| ONVIF |
- Supported, specification available at www.onvif.org
|
|
Intelligent Video
| Video Motion Detection |
- Triple-window video motion detection
|
| Auto-Tracking |
- Auto-tracking on moving object
|
|
Alarm and Event
| Alarm Triggers |
- Video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
|
| Alarm Events |
- Event notification using digital output, HTTP, SMTP, FTP and NAS server
- File upload via HTTP, SMTP, FTP and NAS server
|
|
General
| Connectors |
- RJ-45 cable connector for Network/PoE connection
- Audio input
- Audio output
- AC 24V power input
- Digital input*4
- Digital output*2
- RS-485 for PTZ control (PelcoD protocol, Baud rate 2400)
|
| LED Indicator |
- System power and status indicator
|
| Power input |
- PoE plus (IEEE 802.3at compliant)
- High Power PoE
- AC 24V
|
| Power consumption |
- PoE plus:
- AC 24V:
- Max. 48W (heater on)
- Max. 19W (heater off)
- High Power PoE:
- Max. 48W (heater on)
- Max. 19W (heater off)
|
| Dimensions |
|
| Weight |
|
| Casing |
- Weather-proof IP66- and NEMA 4X-rated housing
|
| Safety Certifications |
- CE, C-Tick, FCC Class A, NEMA 4X, VCCI
|
| Operating Temperature |
- -5C ~ 55C (PoE Plus)
- -40C ~ 55C (AC 24V)
- -40C ~ 55C (High Power PoE)
|
| Warranty |
|
|
System Requirements
| Operating System |
- Microsoft Windows 7/Vista/XP/2000
|
| Browser |
- Mozilla Firefox 7~10 (Streaming only)
- Internet Explorer 7.x or 8.x
|
| Other Players |
- VLC: 1.1.11 or above
- QuickTime: 7 or above
|
|
|
|
|
