10/12
|
Vivotek IB8369 Bullet Network Camera - 2 Megapixel CMOS Sensor, 30 FPS @ 1920x1080, Real-Time H.264, MJPEG Compression (Dual Codec), Removable IR-Cut Filter For Day & Night Function - Silver
2MP 20M IR IP66 3DNR Cable Management Bullet Network Camera IB8369
Overview
VIVOTEK IB8369 is a best-in-class, bullet-style network camera designed for diverse outdoor applications. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the IB8369 is an all-in-one outdoor camera capable of capturing high quality and high resolution video up to 2 Megapixel.
In order to adapt to constantly changing outdoor lighting conditions, the IB8369 features a removable IR-cut filter as well as IR illuminators effective up to 20M for superior image quality around the clock. For protection against harsh outdoor environments, the camera is encased in an IP66-rated housing and weather-proof casing to withstand rain and dust. The IB8369 further strengthens the robustness of the camera by protecting the cable within the bracket.
The IB8369 supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With H.264 & MJPEG compatibility all included, multiple streams can be simultaneously transmitted in any of these formats at different resolutions, frame rates, and image qualities for versatile platforms. The streams can also be individually configured to meet different needs or bandwidth constraints, thereby further optimizing bandwidth and storage.
Incorporating a number of advanced features standard for VIVOTEK cameras, including tamper detection, 802.3af compliant PoE, MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the IB8369 is the ideal solution for your outdoor surveillance needs.
Features
- 2-Megapixel CMOS Sensor
- 30 fps @ 1920x1080
- Real-time H.264, MJPEG Compression (Dual Codec)
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, Effective up to 20 Meters
- Built-in 802.3af Compliant PoE
- Build-in MicroSD/SDHC/SDXC card slot for On-board Storage
- Supports ONVIF Standard to Simplify Integration and Enhance Interoperability
- Weather-proof IP66-rated Housing
- Mounting Bracket with Cable Management for Protected Installation
- 3D Noise Reduction
- Smart IR Technology to Avoid Overexposure
Specifications
System Information
| CPU |
- Multimedia SoC (System-on-Chip)
|
| Flash |
|
| RAM |
|
|
Camera Features
| Image sensor |
|
| Maximum Resolution |
|
| Lens Type |
|
| Focal Length |
|
| Aperture |
|
| Field of View |
- 84 (horizontal)
- 68 (vertical)
- 114 (diagonal)
|
| Shutter Time |
- 1/5 sec. to 1/32,000 sec.
|
| Day & Night |
- Removable IR-cut filter for day & night function
|
| Minimum Illumination |
- 0.78 Lux @ F2.0 ( Color )
- 0.006 Lux @ F2.0 ( B/W )
- 0 Lux @ IR LED ON
|
| Pan / Tilt / Zoom |
- ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
|
| IR Illuminators |
- Built-in IR illuminators, effective up to 20 meters with Smart IR
- IR LED*6
|
| On-board Storage |
- MicroSD/SDHC/SDXC card slot
|
|
Video
| Compression |
|
| Maximum Frame Rate |
|
| Maximum Streams |
|
| S/N Ratio |
|
| Dynamic Range |
|
| Video Streaming |
- Adjustable resolution, quality and bitrate
- Configurable video cropping for bandwidth saving
|
| Image Settings |
- Adjustable image size, quality and bit rate
- Time stamp, text overlay, flip & mirror
- Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
- Scheduled profile settings, 3D Noise Reduction
|
|
Network
| Users |
- Live viewing for up to 10 clients
|
| Protocols |
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP
|
| Interface |
- 10 Base-T / 100BaseTX Ethernet (RJ-45)
|
| ONVIF |
- Supported, specification available at www.onvif.org
|
|
Intelligent Video
| Video Motion Detection |
- Triple-window video motion detection
|
|
Alarm and Event
| Alarm Triggers |
- Video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection
|
| Alarm Events |
- Event notification using digital output, HTTP, SMTP, FTP and NAS server
- File upload via HTTP, SMTP, FTP and NAS server
|
|
General
| Connectors |
- RJ-45 for Network/PoE connection
|
| LED Indicator |
- System power and status indicator
|
| Power input |
|
| Power consumption |
|
| Dimensions |
|
| Weight |
- Net: 720 g
- Bracket: 300 g
|
| Casing |
- Weather-proof IP66-rated housing
- Mounting bracket with cable management
|
| Safety Certifications |
- CE, LVD, FCC Class A, VCCI, C-Tick
|
| Operating Temperature |
- Starting Temperature: -10C ~ 50C (14F~122F)
- Working Temperature: -20C ~ 50C (-4F ~ 122F)
|
| Warranty |
|
|
System Requirements
| Operating System |
- Microsoft Windows 7/Vista/XP/2000
|
| Browser |
- Mozilla Firefox 7~10 (streaming only)
- Internet Explorer 7/8/9/10
|
| Other Players |
- VLC: 1.1.11 or above
- QuickTime: 7 or above
|
|
|
|
|
|
10/12
|

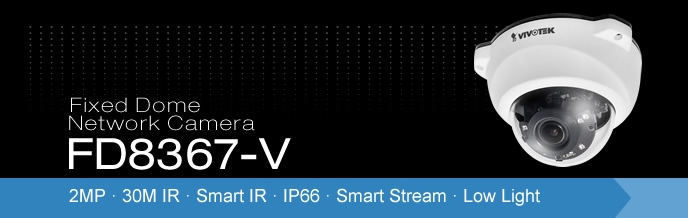

Vivotek FD8367-V Fixed Dome Network Camera - 2 Megapixel CMOS Sensor, 30 FPS @ 1920x1080, 2.8~12 mm Vari-focal, P-Iris Lens, Removable IR-Cut Filter for Day & Night Function, Two-Way Audio - White
2MP 30M IR Smart IR IP66 Smart Stream Low Light Fixed Dome Network Camera FD8367-V
Overview
VIVOTEK FD8367-V is a robust, outdoor-style network camera designed for diverse outdoor applications. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the FD8367-V is an all-in-one outdoor camera capable of capturing high quality and high resolution video up to 2 Megapixel, even in low light environment. Providing such a polished image quality, FD8367-V is also designed with VIVOTEK Smart Stream, 3DNR to save notable bandwidth for users.
To meet outdoor applications, FD8367-V is also designed with IP66-rated housing to help the camera body withstand rain and dust and high pressure water jets from any direction while its IK10-rated housing can provide the protection against the vandal act and impact.
Features
- 2-Megapixel CMOS Sensor
- 30 fps @ 1920x1080
- 2.8 ~ 12 mm Vari-focal, P-iris Lens
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, Effective up to 30 Meters
- Real-time H.264, and MJPEG Compression
- Two-way Audio
- WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
- 3D Noise Reduction
- Smart IR Technology to Avoid Overexposure
- Support Installation with AM-712 Conduit Box
Specifications
System Information
| CPU |
- Multimedia SoC (System-on-Chip)
|
| Flash |
|
| RAM |
|
|
Camera Features
| Image sensor |
|
| Maximum Resolution |
|
| Lens Type |
|
| Focal Length |
|
| Aperture |
|
| Auto-iris |
|
| Field of View |
- 35 ~ 99 (Horizontal)
- 20 ~ 54 (Vertical)
- 41 ~ 123 (Diagonal)
|
| Shutter Time |
- 1/5 sec. to 1/32,000 sec.
|
| WDR Technology |
|
| Day & Night |
- Removable IR-cut filter for day & night function
|
| Minimum Illumination |
- 0.06 Lux @ F1.8 (Color)
- 0.001 Lux @ F1.8 (B/W)
|
| Pan / Tilt / Zoom |
- ePTZ
- 48x digital zoom (4x on IE plug-in, 12x built-in)
|
| IR Illuminators |
- Built-in IR illuminators, effective up to 30 meters
- with Smart IR
- IR LED*6
|
| On-board Storage |
- MicroSD/SDHC/SDXC card slot
|
|
Video
| Compression |
|
| Maximum Frame Rate |
- 30 fps @ 1920x1080 in both compression modes
|
| Maximum Streams |
|
| S/N Ratio |
|
| Dynamic Range |
|
| Video Streaming |
- Adjustable resolution, quality and bitrate
|
| Image Settings |
- Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks,Scheduled profile settings, Seamless recording, smart stream, 3D Noise Reduction
|
|
Audio
| Audio Capability |
- Audio input /output (full duplex)
|
| Compression |
|
| Interface |
- External microphone input
- External line output
|
|
Network
| Users |
- Live viewing for up to 10 clients
|
| Protocols |
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP
|
| Interface |
- 10 Base-T / 100 BaseTX Ethernet (RJ-45)
|
| ONVIF |
- Supported, specification available at www.onvif.org
|
|
Intelligent Video
| Video Motion Detection |
- Triple-window video motion detection
|
|
Alarm and Event
| Alarm Triggers |
- Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
|
| Alarm Events |
- Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card
- File upload via HTTP, SMTP, FTP, NAS server and SD card
|
|
General
| Smart Focus System |
|
| Connectors |
- RJ-45 cable connector for Network/PoE connection
- Audio input
- Audio output
- DC 12V power input
- Digital input*1
- Digital output*1
|
| LED Indicator |
- System power and status indicator
|
| Power input |
- DC 12V
- IEEE 802.3af PoE Class 3
|
| Power consumption |
- Max: 8.6 W (DC12V)
- Max: 9.7 W (PoE)
|
| Dimensions |
|
| Weight |
|
| Casing |
- Weather-proof IP66-rated housing
- Vandal-proof IK10-rated metal housing
|
| Safety Certifications |
- CE, LVD, FCC Class A, VCCI, C-Tick, UL
|
| Operating Temperature |
- Starting Temperature: -10C ~ 50C (14F~ 122F)
- Working Temperature: -20C ~ 50C (-4F~ 122F)
|
| Warranty |
|
|
System Requirements
| Operating System |
- Microsoft Windows 7/8/Vista/XP/2000
|
| Browser |
- Mozilla Firefox 7~10 ( Streaming only )
- Internet Explorer 7.x ,8.x, 9.x, 10.x
|
| Other Players |
- VLC: 1.1.11 or above
- QuickTime: 7 or above
|
|
|
|
|
|
10/12
|
Vivotek FD8169 Fixed Dome Network Camera - 2 Megapixel CMOS Sensor, 30 FPS @ 1920x1080, Real-time H.264, MJPEG Compression (Dual Codec), Removable IR-cut Filter for Day & Night Function - White
2MP 15M IR 3DNR Fixed Dome Network Camera FD8169
Overview
VIVOTEK FD8169 is an easy-to-use fixed dome network camera specifically designed for indoor security applications with a compact, stylish exterior. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the FD8169 is an all-in-one camera capable of capturing high quality and high resolution video up to 2 Megapixel.
In order to adapt to constantly changing lighting conditions, the FD8169 features a removable IR-cut filter as well as improved IR illuminators effective up to 15M for superior image quality around the clock. Featuring 3D Noise Reduction Technology, it enables the FD8169 to capture clear, polished video under low-light conditions, which also helps to reduce bandwidth from sensor noise.
The FD8169 supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With H.264, and MJPEG compatibility both included, multiple streams can be simultaneously transmitted in any of these formats at different resolutions, frame rates, and image qualities for versatile platforms. Thereby it further optimizes bandwidth and storage efficiency.
Incorporating a number of advanced features standard for VIVOTEK cameras, including tamper detection, 802.3af compliant PoE, MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the FD8169 is the ideal solution for your indoor surveillance needs.
Features
- 2-Megapixel CMOS Sensor
- 30 fps @ 1920x1080
- Real-time H.264, MJPEG Compression (Dual Codec)
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, Effective up to 15 Meters
- Built-in 802.3af Compliant PoE
- Build-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Supports ONVIF Standard to Simplify Integration and Enhance Interoperability
- 3D Noise Reduction
- Smart IR Technology to Avoid Overexposure
Specifications
System Information
| CPU |
- Multimedia SoC (System-on-Chip)
|
| Flash |
|
| RAM |
|
|
Camera Features
| Image sensor |
|
| Maximum Resolution |
|
| Lens Type |
|
| Focal Length |
|
| Aperture |
|
| Field of View |
- 105 (Horizontal)
- 87 (Vertical)
- 135 (Diagonal)
|
| Shutter Time |
- 1/5 sec. to 1/32,000 sec.
|
| Day & Night |
- Removable IR-cut filter for day & night function
|
| Minimum Illumination |
- 1.22 Lux @ F2.0 (Color)
- 0.008 Lux @ F2.0 (B/W)
- 0 Lux @ IR LED ON
|
| Pan range |
|
| Tilt range |
|
| Rotation Range |
|
| Pan / Tilt / Zoom |
- ePTZ
- 48x digital zoom (4x on IE plug-in, 12x built-in)
|
| IR Illuminators |
- Built-in IR illuminators, effective up to 15 meters with Smart IR
- IR LED*6
|
| On-board Storage |
- MicroSD/SDHC/SDXC card slot
|
|
Video
| Compression |
|
| Maximum Frame Rate |
- 30 fps @ 1920x1080 in both compression
|
| Maximum Streams |
|
| S/N Ratio |
|
| Dynamic Range |
|
| Video Streaming |
- Adjustable resolution, quality and bit rate
- Configurable video cropping for bandwidth saving
|
| Image Settings |
- Adjustable image size, quality and bit rate
- Time stamp, text overlay, flip & mirror
- Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
- Scheduled profile settings, 3D Noise Reduction
|
|
Network
| Users |
- Live viewing for up to 10 clients
|
| Protocols |
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP
|
| Interface |
- 10 Base-T / 100 BaseTX Ethernet (RJ-45)
|
| ONVIF |
- Supported, specification available at www.onvif.org
|
|
Intelligent Video
| Video Motion Detection |
- Triple-window video motion detection
|
|
Alarm and Event
| Alarm Triggers |
- Video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection
|
| Alarm Events |
- Event notification using digital output, HTTP, SMTP, FTP and NAS server
- File upload via HTTP, SMTP, FTP and NAS server
|
|
General
| Connectors |
- RJ-45 for Network/PoE connection
|
| LED Indicator |
- System power and status indicator
|
| Power input |
|
| Power consumption |
|
| Dimensions |
|
| Weight |
|
| Safety Certifications |
- CE C-Tick FCC ( Class B ) LVD VCCI
|
| Operating Temperature |
- Starting Temperature: 0C ~ 50C (32F~122F)
- Working Temperature: -10C ~ 50C (14F ~ 122F)
|
| Warranty |
|
|
System Requirements
| Operating System |
- Microsoft Windows 7 / Vista / XP / 2000
|
| Browser |
- Mozilla Firefox 7~10 ( Streaming only )
- Internet Explorer 7/8/9
|
| Other Players |
- VLC: 1.1.11 or above
- QuickTime: 7 or above
|
|
|
|
|
|
10/12
|

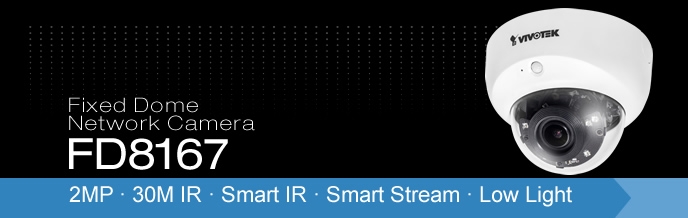

Vivotek FD8167 Fixed Dome Network Camera - 2 Megapixel CMOS Sensor, 30FPS @ 1920x1080, 2.8~12mm Vari-Focal, P-iris Lens, Removable IR-Cut Filter for Day & Night Function, Two-way Audio - White
2MP 30M IR Smart IR Smart Stream Low Light Fixed Dome Network Camera FD8167
Overview
VIVOTEK FD8167 is a stylish, indoor-style network camera designed for diverse indoor applications. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the FD8167 is an all-in-one indoor camera capable of capturing high quality and high resolution video up to 2 Megapixel, even in low light environment. Providing such a polished image quality, FD8167 is also designed with VIVOTEK Smart Stream, 3DNR to save notable bandwidth for users.
To emphasize the image quality, FD8167 also comes with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as image quality.
Features
- 2-Megapixel CMOS Sensor
- 30 fps @ 1920x1080
- 2.8 ~ 12 mm Vari-focal, P-iris Lens
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, Effective up to 30 Meters
- Real-time H.264, and MJPEG Compression
- Two-way Audio
- WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
- Smart IR Technology to Avoid Overexposure
- 3D Noise Reduction
- PIR
- Support Installation with AM-712 Conduit Box
Specifications
System Information
| CPU |
- Multimedia SoC (System-on-Chip)
|
| Flash |
|
| RAM |
|
|
Camera Features
| Image sensor |
|
| Maximum Resolution |
|
| Lens Type |
|
| Focal Length |
|
| Aperture |
|
| Auto-iris |
|
| Field of View |
- 35 ~ 99 (Horizontal)
- 20 ~ 54 (Vertical)
- 41 ~ 123 (Diagonal)
|
| Shutter Time |
- 1/5 sec. to 1/32,000 sec.
|
| WDR Technology |
|
| Day & Night |
- Removable IR-cut filter for day & night function
|
| Minimum Illumination |
- 0.06 Lux @ F1.8 (Color)
- 0.001 Lux @ F1.8 (B/W)
|
| Pan / Tilt / Zoom |
- ePTZ
- 48x digital zoom (4x on IE plug-in, 12x built-in)
|
| IR Illuminators |
- Built-in IR illuminators, effective up to 30 meters
- with Smart IR
- IR LED*6
|
| On-board Storage |
- MicroSD/SDHC/SDXC card slot
|
|
Video
| Compression |
|
| Maximum Frame Rate |
- 30 fps @ 1920x1080 In both compression modes
|
| Maximum Streams |
|
| S/N Ratio |
|
| Dynamic Range |
|
| Video Streaming |
- Adjustable resolution, quality and bitrate
|
| Image Settings |
- Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks,Scheduled profile settings, Seamless recording, smart stream, 3D Noise Reduction
|
|
Audio
| Audio Capability |
- Audio input /output (full duplex)
|
| Compression |
|
| Interface |
- Internal microphone input
- External line output
|
|
Network
| Users |
- Live viewing for up to 10 clients
|
| Protocols |
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP
|
| Interface |
- 10 Base-T / 100BaseTX Ethernet (RJ-45)
|
| ONVIF |
- Supported, specification available at www.onvif.org
|
|
Intelligent Video
| Video Motion Detection |
- Triple-window video motion detection
|
|
Alarm and Event
| Alarm Triggers |
- Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
|
| Alarm Events |
- Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card
- File upload via HTTP, SMTP, FTP, NAS server and SD card
|
|
General
| Smart Focus System |
|
| Connectors |
- RJ-45 cable connector for Network/PoE connection
- Audio input
- Audio output
- DC 12V power input
- Digital input*1
- Digital output*1
|
| LED Indicator |
- System power and status indicator
|
| Power input |
- 12V DC
- IEEE 802.3af PoE Class 3
|
| Power consumption |
- Max: 8.6 W (DC12V)
- Max: 9.7 W (PoE)
|
| Dimensions |
|
| Weight |
|
| Safety Certifications |
- CE, LVD, FCC Class B, VCCI, C-Tick, UL
|
| Operating Temperature |
- Starting Temperature: -10C ~ 50C (14F~ 122F)
- Working Temperature: -20C ~ 50C (-4F~ 122F)
|
| Warranty |
|
|
System Requirements
| Operating System |
- Microsoft Windows /8/Vista/XP/2000
|
| Browser |
- Mozilla Firefox 7~10 (Streaming only)
- Internet Explorer 7.x, 8.x, 9.x,10.x
|
| Other Players |
- VLC: 1.1.11 or above
- QuickTime: 7 or above
|
|
|
|
|
|
Previous Page
|
Next Page
|
|
