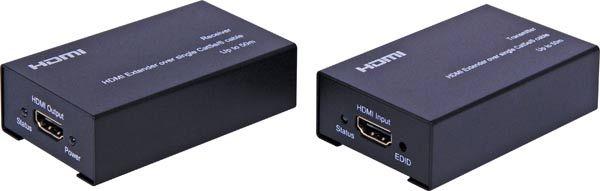

HDMI over Ethernet CAT 6 Extender STP/FTP Balun

Product May Vary From Image
Sharing & Social
Manuf No:
Usually Ships:
1-3 Days   More info
Part No:
Not Rated
Product Description

This long distance HDMI balun converter is designed as a substitute for long distance HDMI leads, which can be very expensive & are not readily available in lengths over 15m. With the addition of this extender and a single length of Cat 6 cable, distances up to 50m can be achieved. HDCP Compliant. Includes transmitter & receiver, plus power supplies. EDID copy and repeat function.

Shielded Twisted pair/STP or Foil Twisted Pair/FTP cable recommended


- 1080p, 1080i resolution
- Supports Deep Colour up to 36 bits
- Transmission range up to 50m
- Supports EDID data transmission
- Data transfer speed 6.75Gbps
- EDID copy function

  • Input Video Signal: 0.5-1.0V P-P
  • Input DDC Signal: 5V p-p (TTL)
  • Suported Video Formats: DTV, DTV: 480i, 576i, 480P,576P, 720P, 1080i, 1080P, 3D Video
  • Video Output: HDMI, HDCP
  • Supported Audio Format: DTS-HD Master Audio, Dolby True HD
  • Power Consumption: 5W max
  • Cable: Single Cat6 STP/FTP
  • Cable (HDMI): Version 1.3a or greater
  • Range: 50m 1080p 8-Bit
  • Power supply: 5V DC 1A
  • Dimensions (L x W x H) mm: 83 x 48 x 25
  • Weight: 125g
