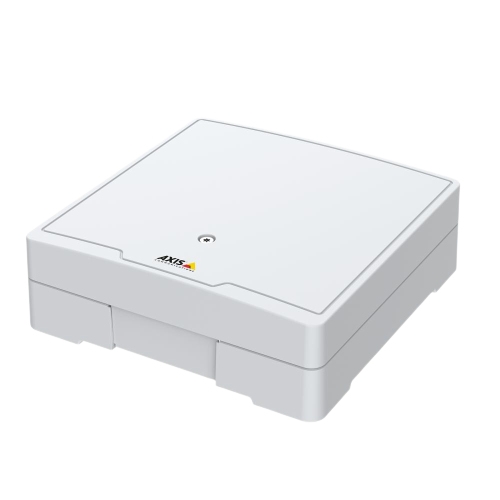

AXIS 01507-001 security door controller Housing 2 door(s) Ethernet, 512 MB RAM, 1GB Flash, white, UL 2043, 10-28 V

[Large image available]

Product May Vary From Image

Our Price:

$183.85

Quantity:

Part No:

536303

Brand:

AXIS

Manuf No:

01507-001

01507001

Usually Ships:

1-3 Days More info

Ship Weight:

1.35 KG Details

Product Description

Axis 01507-001 security door controller Housing 2 door(s) Ethernet

Manufacturer:	Axis
Category:	Home
Sub-Category:	Security Door Controllers
SKU:	01507-001
EAN:	7331021064287

Description

With door controllers from Axis, you install one smart, independent device by each door to create a scalable access control system. The open platform allows you to mix and match best-of-breed software and hardware, and enables easy integration with other systems such as video surveillance, intrusion detection, and time and attendance. AXIS A1601 Network Door Controller is ideal for advanced access management using a partner software, in mid-sized and large, multi-site installations. It has a powerful processor, expanded storage and memory, relays, and I/O ports. AXIS A1601 is powered by PoE+ and can also power connected equipment.

Specifications

Technical details
Maximum number of doors	2 door(s)
Case design	Housing
Interface	Ethernet
Supported network protocols	IPv4,IPv6, HTTP, HTTPSb, SSL/TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPÂ®, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
Performance
Internal memory	0.512 GB
Internal storage capacity	1 GB
Ethernet LAN	Yes
Number of built-in relays	2
Certification	EMC EN 55032 Class A, EN 50130â€“4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35 Safety IEC/EN/UL 62368-1, UL 2043, UL 294, UL 293 Environment EN 50581 Others CSA C22.2 No. 205-1983
Ethernet LAN data rates	10,100 Mbit/s
Wiegand interface	Yes
Power
DC voltage range	10.5 - 28 V
Operating voltage	12 V
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Operational conditions
Operating temperature (T-T)	-40 - 55 Â°C
Operating relative humidity (H-H)	20 - 85%
Storage temperature (T-T)	-40 - 55 Â°C
Weight & dimensions
Width	175 mm
Weight	1.2 kg
Height	60 mm
Depth	175 mm

Product Warranty

12 Month Return To Base
