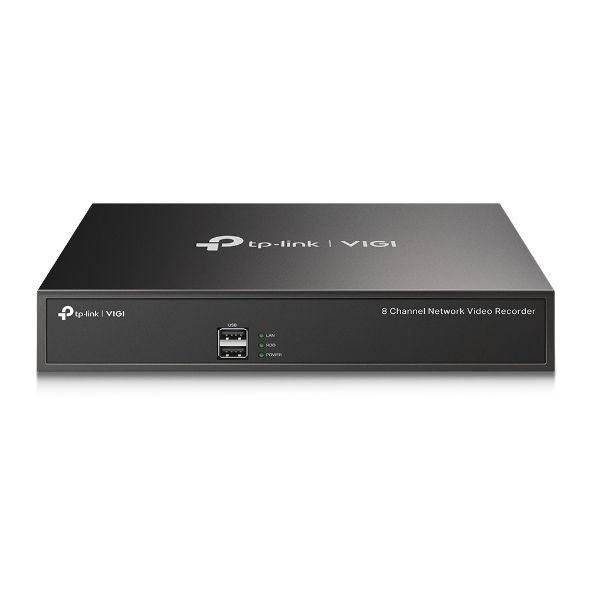

TP-Link VIGI NVR1008H VIGI 8 Channel Network Video
Recorder
Overview
- 24/7 Continuous Recording: Automatically stores up to 10 TB of footage
from connected cameras to secure your data for quick, convenient
access.
- 8-Channel Real-Time Live View: Sharp image definition up to 5MP and an 8
channel display ensures you capture every detail, from every angle.
- 4-Channel Simultaneous Playback: Replay the feed from up to 4 cameras at
the same time, increase replay speed, and find events in the video schedule to
easily review footage.
- Remote Monitoring: Dedicated VIGI app is developed for remote monitoring,
providing ease and convenience.
- H.265+: Without using any extra bandwidth, your camera transmits
compressed crystal-clear video to save disk space, ease network loads, and
reduce monitoring costs without sacrificing image quality.
- Onvif Ensure Compatibility**: Easily add IPCs from VIGI and other brands
to establish a powerful and varied network thanks to barrier-free
compatibility.
- 1 HDD Interface (up to 10 TB): Stores up to 10 TB (720 days* of video) on
a SATA hard drive, keeping your data storage secured locally.
- Two-Way Audio: With voice intercom support, carry two-way conversations
while watching your feed from anywhere. Suitable for management.
- 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your
NVR connects more cameras with high resolution. Based on laboratory testing
using VIGI cameras, VIGI NVR can connect up to eight 4MP cameras.
Specifications
NETWORK |
Protocol |
TCP/IP,
DHCP, DNS, NTP, UPnP |
Incoming
Bandwith |
80
Mbps |
Outgoing
Bandwidth |
60
Mbps |
GENERAL |
Operating
Temperature |
-1055
C |
Chassis |
1U
Chassis |
Dimensions(
H X W X D ) |
246.2
mm*148.2 mm*42.6 mm |
Weight |
578.5
g |
External
Power Supply |
12V
DC, no more than 18 W |
Power
Consumption |
4.25
W (without disk) |
13.10
W (with disk) |
VIDEO/IMAGE |
Video
Input |
8-Channel
IP Video Input, up to 5 MP Resolution |
Video
Output |
Recording
Resolution: 5 MP/ 4 MP/3 MP/1080p/UXGA
/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
HDMI/VGA
Output Resolution: 1920 x1080p/60Hz, 1280 x1024/60Hz, 1280 x720/60Hz, 1680
x1050/60Hz, 1440 x900/60Hz |
DECODING |
Decoding
Format |
H.265+/H.265/
H.264+/H.264 |
Live
View/Playback Resolution |
5
MP/ 4 MP/3 MP/1080p/UXGA/ |
720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Synchronous
Playback |
4
Channel |
Capability |
1-ch
@ 5MP, 2-ch @ 2MP, 4-ch @ 720p |
HARD
DISK |
SATA |
1
SATA Interface |
Capacity |
Up
to 10 TB |

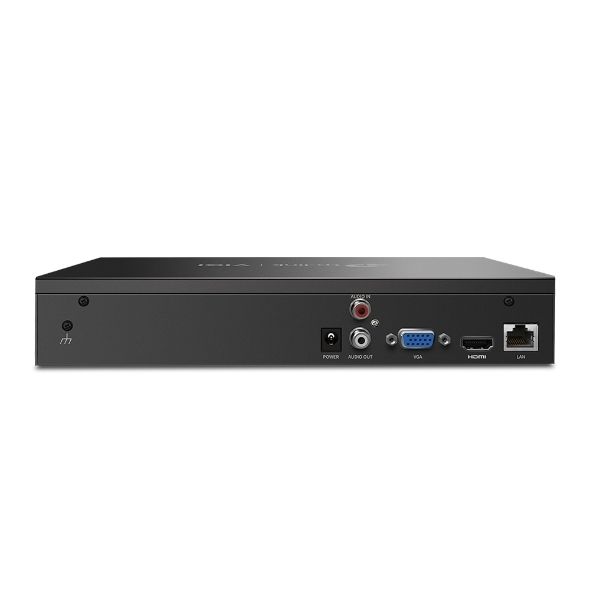

INTERFACES |
Network
Interface |
1
RJ-45 10/100 Mbps Self-Adaptive Ethernet
Interface |
USB
Interface |
2
xUSB
2.0 |
