Ezviz C6TC Full-Room Coverage, Motion Tracking Master
Camera
Overview

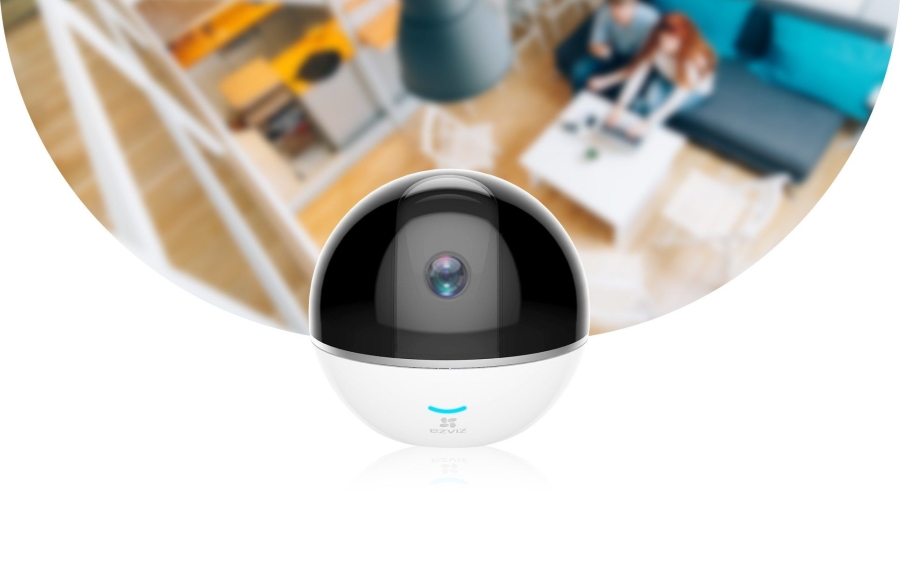

One Camera for the Whole Room
By combining 360 horizontal panorama and smart tracking, the C6TC is a Wi-Fi
pan-tilt camera that gives full-room coverage and delivers clear 1080p FHD video
in rich colors and sharp details.
- 1080p
- Privacy Shutter
- Two-Way Audio
- Smart Tracking
- True Day/Night, Auto Switch, Infrared Night Vision
- Supports MicroSD Card
- 360 Horizontal View

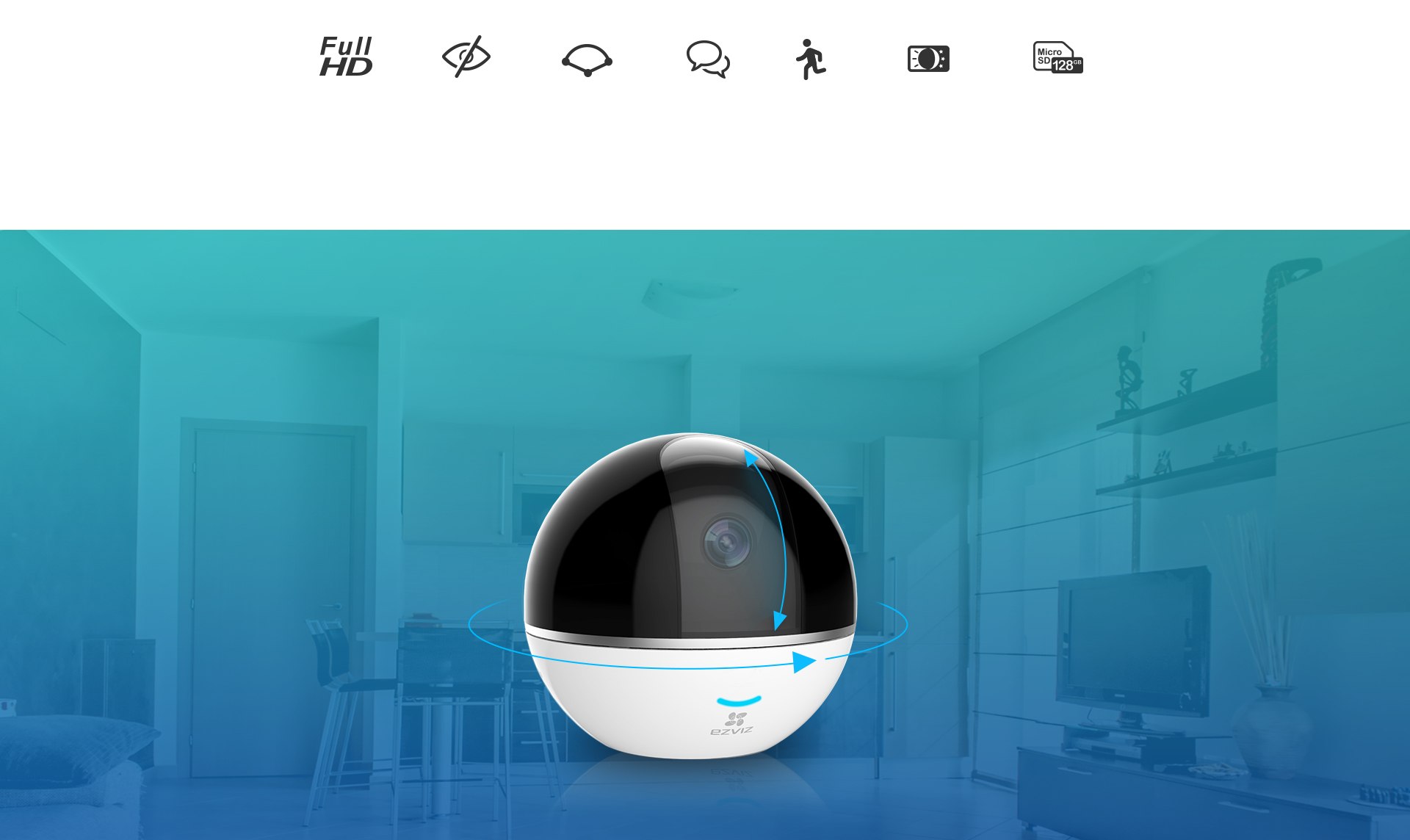

The beauty of this incredible HD pan-tilt camera is that you can place it
wherever you want and still see the whole room. The C6TC includes an expansive
field-of-view coverage with 340 horizontal, 80 vertical upward and 10 vertical
downward rotations.

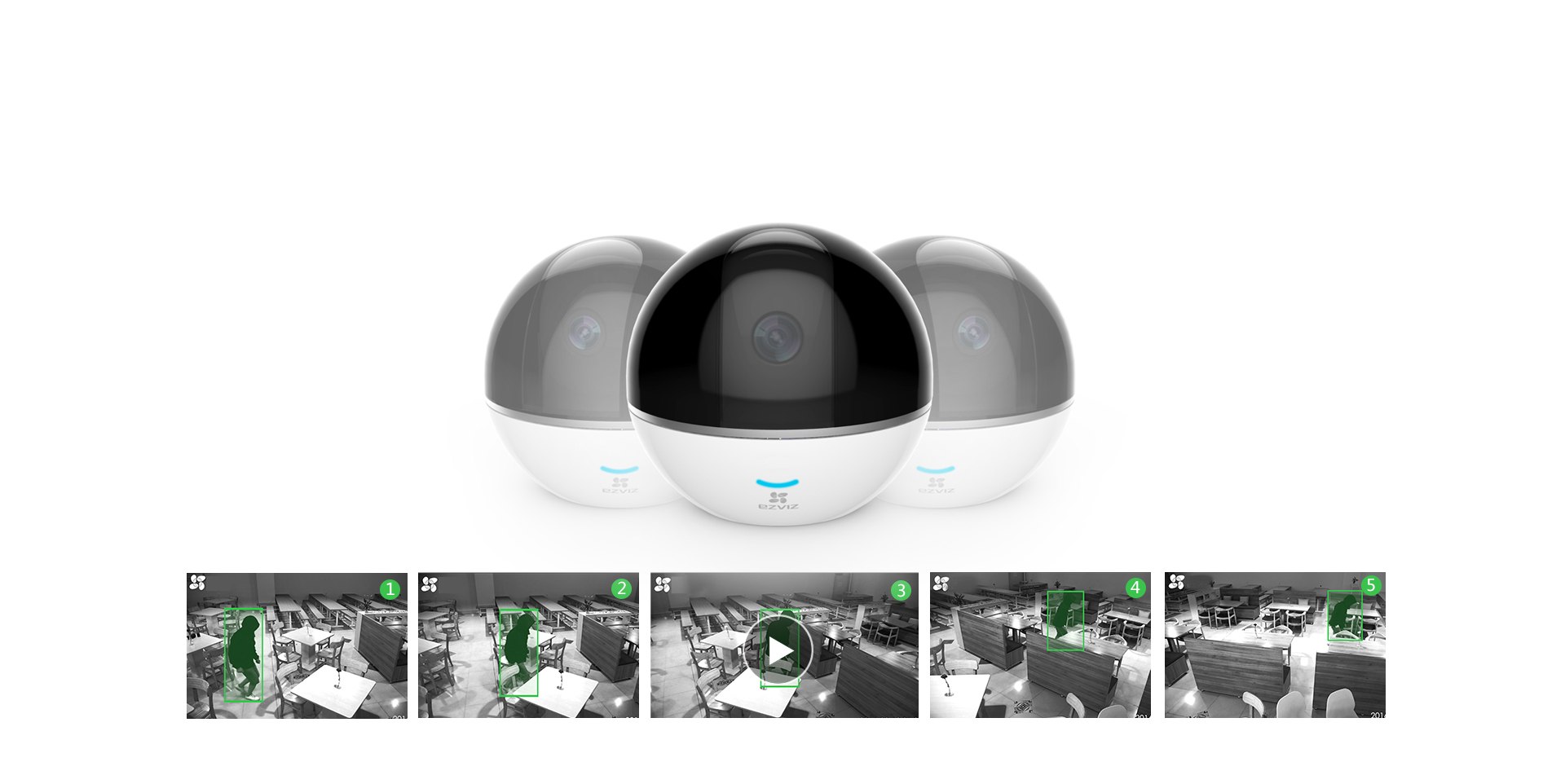

Smart Motion Tracking
Upon detection of movement, the C6TC automatically captures and tracks the
motion while delivering notifications and video recordings in real time.
One-Touch Privacy Shutter
Sometimes you want a little alone time. Dont worry, weve got you covered. The
thoughtfully-designed privacy shutter allows you to turn the lens off whenever
you need privacy.
Brilliant at Night
The C6TC is equipped with two powerful infrared lights for illumination up to
10 meters (depending on environment) large enough to cover just about any room.
Switches between day and night modes automatically.
Real-Time, Two-Way Talk
When you are away from home and want to speak to loved ones or pets, theres
two-way talk. Just press the button on the EZVIZ app and the C6TC will help you
do the rest.
Compatible with the EZVIZ Alarm Sensor
The C6TC can be integrated into the EZVIZ alarm system. Once an alarm is
triggered, the camera will capture a picture and video footage and send them to
the device owner.
Multiple Storage Options
With multiple storage options, you can choose where to save your recording.
The cameras can even save to all three locations at the same time for added
backup in case a camera is damaged or your network crashes.
- Supports MicroSD Card
- Encrypted Cloud Storage
- EZVIZ NVR

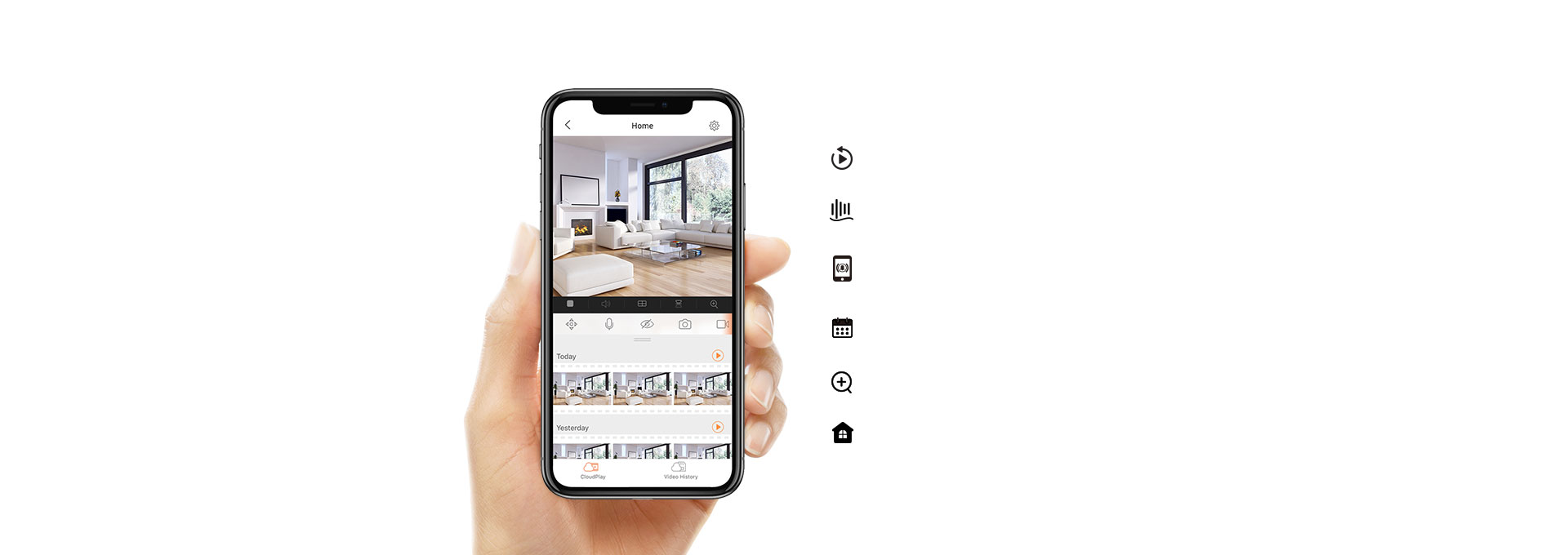

Security At Your Fingertips
With the EZVIZ app or EZVIZ Studio, you can protect, capture, save and share
whats valuable to you.
- Live View
- Audio Reception
- Instant Alerts
- Video History
- Up to 8x Zoom
- Smart Home Enabled
Specifications
|
Model
Parameters |
|
Model |
CS-CV248-A0-32WFR |
|
Camera |
|
Sensor |
2 Megapixel 1/3
Progressive Scan CMOS |
|
Shutter
Speed |
Self-adaptive
shutter |
|
Lens |
4mm@ F2.2, Diagonal
angle: 95 |
|
PT
Angle |
Pan: 340, Tilt:
90 |
|
Lens
Mount |
M12 |
|
Day &
Night |
IR-cut filter with
auto-switching |
|
DNR |
3D
DNR |
|
WDR |
Digital
WDR |
|
Compression |
|
Video
Compression |
H.264 |
|
H.264
Type |
Main
profile |
|
Video Bit
Rate |
HD, Balanced and
Smooth. Adaptive bit rate |
|
Image |
|
Max.
Resolution |
19201080 |
|
setting |
Brightness, contrast,
saturation, etc. (configurable via EZVIZ Studio) |
|
BLC |
Support |
|
Network |
|
Storage |
Support Micro SD card
(Max. 128G) |
|
Smart
Alarm |
Motion
detection |
|
Wi-Fi
Pairing |
SmartConfig (Wi-Fi
One-Key Configuration)/AP paring |
|
Protocol |
EZVIZ cloud proprietary
protocol |
|
Interface
Protocol |
EZVIZ cloud proprietary
protocol |
|
General
Features |
Anti-Flicker,
Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection,
Watermark |
|
Minimum Network
Requirements |
2Mbps |
|
Wi-Fi |
|
Standard |
IEEE802.11b, 802.11g,
802.11n |
|
Frequency
Range |
2.4 GHz ~ 2.4835
GHz |
|
Channel
Bandwidth |
Supports
20MHz |
|
Security |
64/128-bit WEP,
WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
|
Transmission
Rate |
11b: 11Mbps, 11g:
54Mbps, 11n: 135Mbps |
|
General |
|
Operating
Conditions |
-10C ~ 55C, Humidity
95% or less (non-condensing) |
|
Power
Supply |
DC
5V10% |
|
Power
Consumption |
Max.
8W |
|
IR
Range |
Max. 10
Meters |
|
Product
Dimensions |
100mm x 100mm x
90mm |
|
Packaging
Dimensions |
126mm x 126mm x
155mm |
|
Weight |
220g |
