EZVIZ C6P ez360 Pano Camera
3MP, M12, 3D DNR, Triple HD Video, Two-Way Audio, 360 Panoramic View, Wifi, Anti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark

Product May Vary From Image
Part No:
455299
Brand:
Manuf No:
CS-CV346-A0-7A3WFR

CSCV346A07A3WFR
Usually Ships:
No Longer Available   More info

Ship Weight:
0.222 KG  Details
Product Description

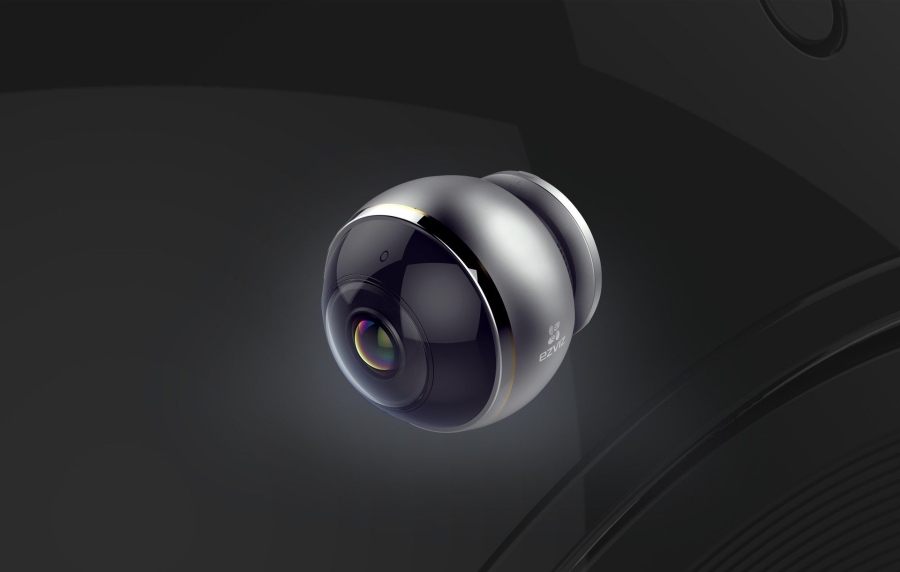

Ezviz C6P ez360 Pano Camera



Overview

360° Fisheye Security, Zero Blind Spots.

3MP Wireless Fisheye Camera

The C6P (ez360 Pano) features a premium fisheye lens and 3-megapixel HDR sensor to support 360 omnidirectional monitoring with four viewing modes: panoramic, expanded, dual-split screen and quad-split screen. A panoramic Wi-Fi camera offering complete coverage without any blind spots.

  • Metal Body
  • Triple HD Video
  • 360 Panoramic View
  • Multiple Viewing Modes
  • Two-Way Audio
  • Supports MicroSD Card (Up to 128GB)
  • True Day/Night, Auto Switch, Infrared Night Vision
  • 360 Panoramic View
  • With a 360 panoramic view, the C6P (ez360 Pano) is an all-seeing eye, giving you complete perspective.

360 Panoramic View

With a 360 panoramic view, the C6P (ez360 Pano) is an all-seeing eye, giving you complete perspective.

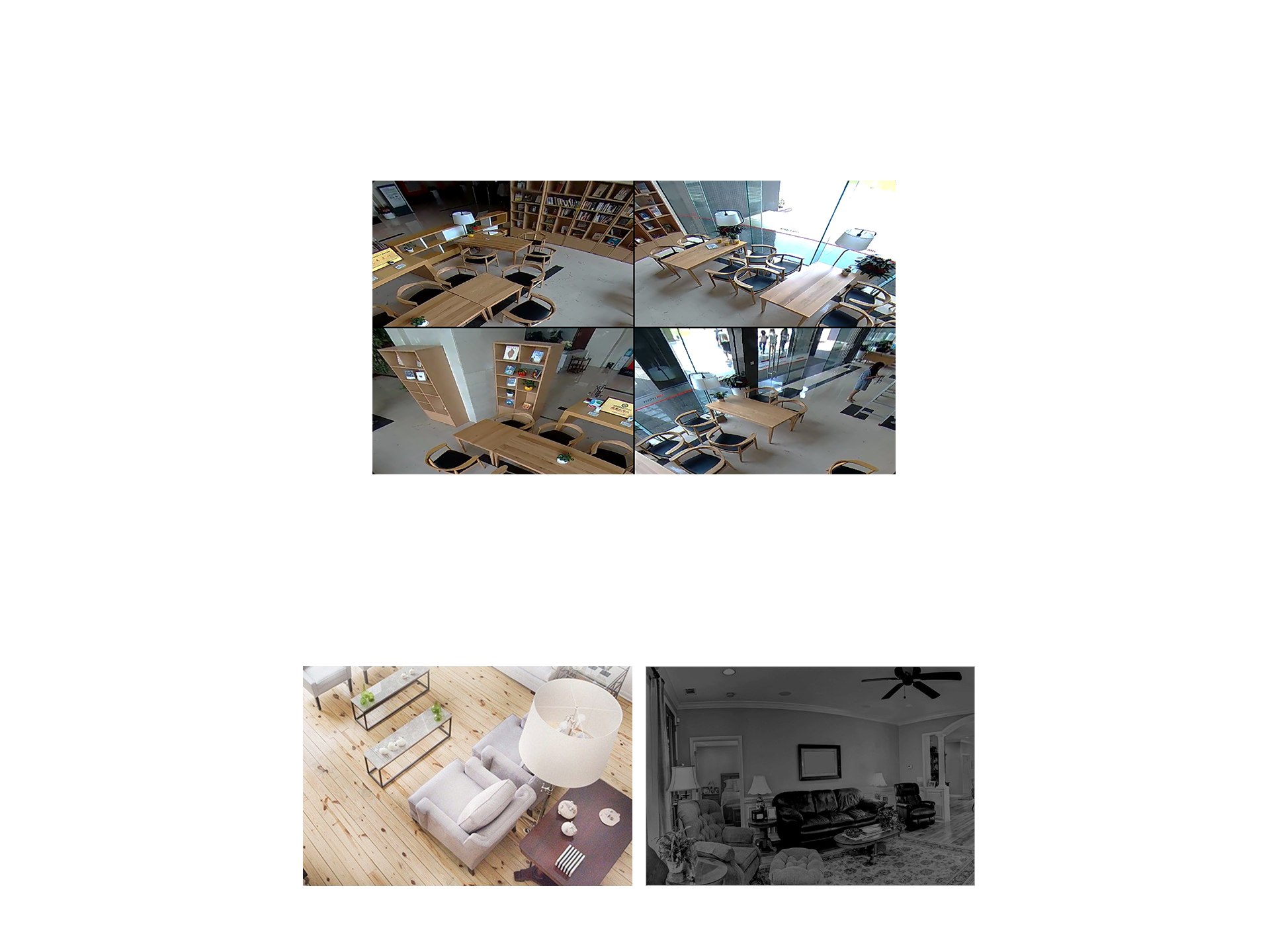

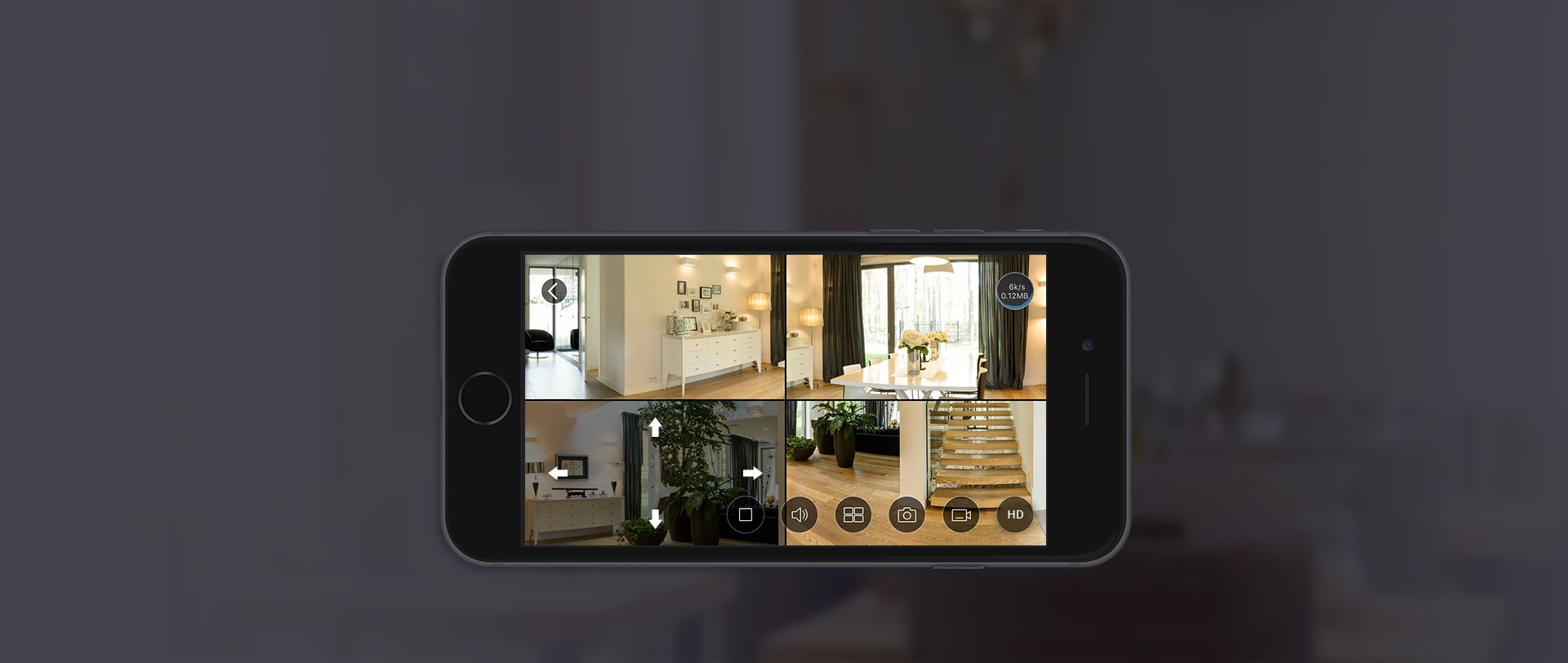

Four-Screen Split Mode

The C6P (ez360 Pano) can capture and display up to 4 assigned areas of coverage and allows you to navigate within each individual display.

Versatile Viewing Modes

Choose from four different viewing modes fisheye panoramic, expanded, dual-split screen and quad-split screen modes to meet your needs.

Triple HD Camera

Equipped with 3 MP starlight level sensor, resolution up to 1344x1344, the C6P (ez360 Pano) captures crystal clear, fine and vibrant images.

The C6P (ez360 Pano) stays sharp in the dark with the help of its four 850nm high-end LED infrared lights. Night vision with clear-as-day clarity up to 7.5 meters.

Dual-Band Wi-Fi Connection

The C6P (ez360 Pano) supports 2.4 GHz and 5 GHz Wi-Fi connectivity, ensuring stable and smooth wireless transmission with greater anti-interference and stability.

Real-Time Two-Way Talk

With a powerful speaker and independent sound cavity, the C6P (ez360 Pano) delivers real-time, crystal clear and smooth voice transmissions.

  • - Built-in microphone
  • - 5-meter pickup
  • - Supports full duplex voice intercom
  • - Crystal clear, smooth voice transmission

Durable Metal Body

Built with high-strength, anti-corrosion aluminum, the C6P (ez360 Pano) features smooth texture, long service life and rapid heat dissipation.

Multiple Storage Options

With multiple storage options, you can choose where to save your recording. The cameras can even save to all three locations at the same time for added backup in case a camera is damaged or your network crashes.

  • Supports MicroSD Card
  • Encrypted Cloud Storage
  • EZVIZ NVR

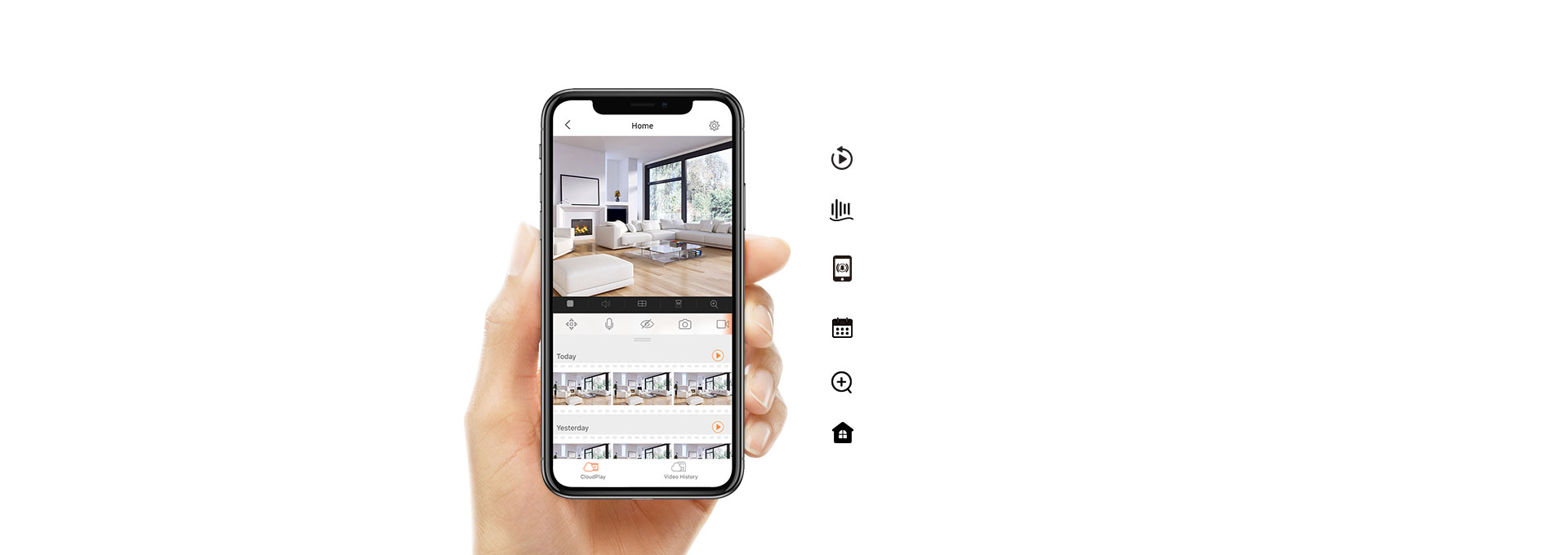

Security at Your Fingertips

With the EZVIZ app or EZVIZ Studio, you can protect, capture, save and share whats valuable to you.

  • Live View
  • Audio Reception
  • Instant Alerts
  • Video History
  • Up to 8x Zoom
  • Smart Home Enabled

Specifications

Model Parameters

Model

CS-CV346-A0-7A3WFR

Camera

Image Sensor

3 Megapixel 1/2.8 Progressive Scan CMOS

Minimum Illumination

0.01 lux @(F2.2,AGC ON), 0 lux with IR

Shutter Speed

Self-adaptive shutter

Lens

1.2mm@ F2.2, Horizontal angle: 180 Diagonal angle: 180

Lens Mount

M12

Day & Night

IR-cut filter with auto-switching

DNR

3D DNR

WDR

Progressive WDR

Compression

Video Compression

H.264

H.264 Type

Main profile

Video Bit Rate

HD, Balanced and Smooth. Adaptive bit rate


Max. Resolution

13441344

Image setting

Brightness, contrast, saturation, etc. (configurable via EZVIZ Studio)

BLC

Support

Network

Storage

Support Micro SD card (Max. 128G)

Smart Alarm

Motion detection

Wi-Fi Pairing

SmartConfig (Wi-Fi One-Key Configuration)

Protocol

EZVIZ cloud proprietary protocol

Interface Protocol

EZVIZ cloud proprietary protocol

General Features

Anti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark

Minimum Network Requirements

2Mbps

Wi-Fi

Standard

IEEE802.11a/b/g/n/ac

Frequency Range

2.412GHz ~ 2.462GHz/5.15GHz ~ 5.35GHz/ 5.725GHz ~ 5.825GHz

Channel Bandwidth

Supports 20MHz

Security

WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate

11b: 11Mbps, 11g: 54Mbps, 11n: 135Mbps

General

Operating Conditions

-10C ~ 45C, Humidity 95% or less (non-condensing)

Power Supply

DC 5V 5%

Power Consumption

Max. 8W

IR Range

Max. 7.5meters

Product Dimensions

70mm x 70mm x 70.6mm

Packaging Dimensions

109.5mm x 109.5mm x 123mm

Weight

222g


Product Warranty


12 Month Return To Base
