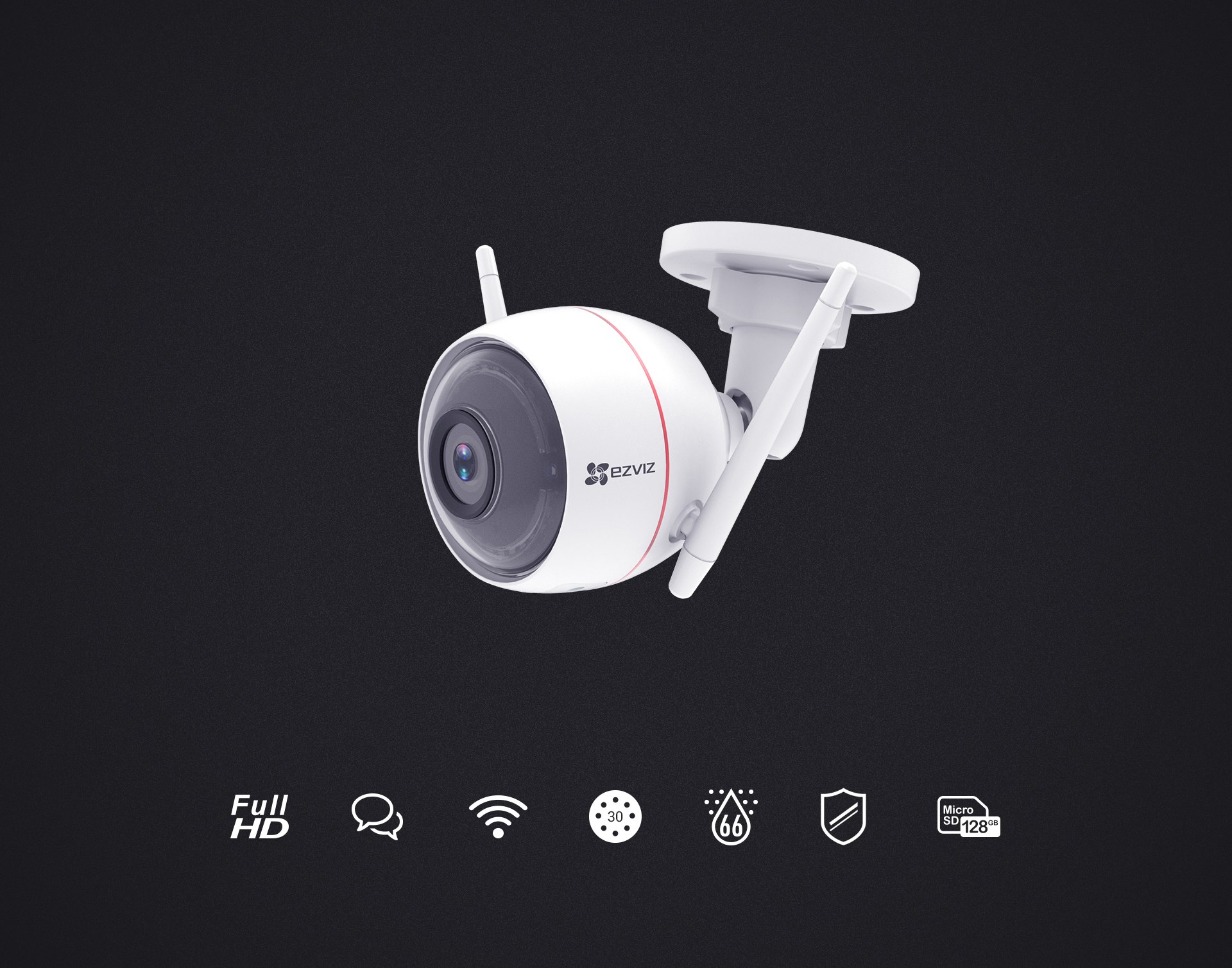

Ezviz C3W ezGuard Camera
Overview
A Camera with Pro Deterrence
The C3W (ezGuard), a Full HD wall-mounted outdoor Wi-Fi camera, uses a
built-in strobe light and alarm fordeterrence, while also offeringtwo-way talk
and durability in any type of weather.
- 1080p Video
- Two-Way Audio
- Supports 2.4GHz Wi-Fi
- Infrared Night Vision
- IP66 Dust and Water Protection
- Active Defense
- Supports MicroSD Card
- Your Most Vigilant Guard
Your Most Vigilant Guard
Want to keep an close eye on your home from afar?Leave the C3W (ezGuard) in
charge to notify you when you have visitors. If you know them,talk to them, if
not, use the siren to scare them away.
Active Light and Sound Alarmsfor Enhanced
Defense
Upon detection, the C3W (ezGuard) activates a loud siren and strobe light to
scare off intruders. The siren can reach up to 100 dB strong enough to act as a
deterrent.
Two-Way Talk with HiFi Quality
Not every outdoor security camera supports two-way audio. The C3W (ezGuard)
comes with a built-in microphone and HiFi quality speaker for enhanced two-way
talk.
See Everything with 30m Night Vision
The integration of efficient infrared lighting, an anti-reflection panel and
ICR infrared filter enables excellent night vision up to 30 meters.
External Dual Wi-Fi Antennas
Featuring powerful antennas, the C3W (ezGuard) delivers long-range
transmission with strong penetration and anti-interference
capabilities.
Designed for All Weather
The IP66-certified C3W (ezGuard) is a reliable and durable camera that can
protect you in all types of weather: rain, sunshine or even snow.
360 Swivel and Base
With the 360 swivel and base, the C3W (ezGuard) supports both ceiling and
wall-mounted installations to meet your security needs.
Multiple Storage Options
With multiple storage options, you can choose where to save your recordings.
The cameras can even save to all three locations at the same time for added
backup in case a camera is damaged or your network crashes.
- Supports MicroSD Card
- Encrypted Cloud Storage
- EZVIZ NVR

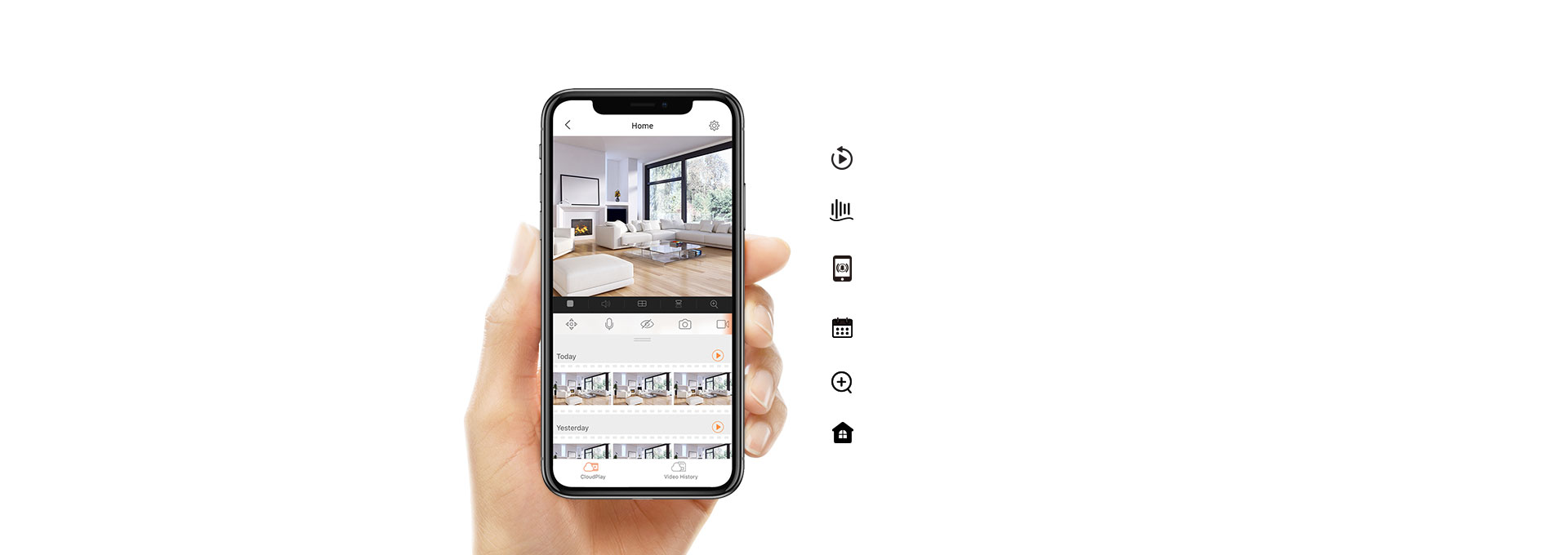

Security at Your Fingertips
With EZVIZ app or EZVIZ Studio, you can protect, capture, save and share
whats valuable to you.
- Live View
- Audio Reception
- Instant Alerts
- Video History
- Up to 8x Zoom
- Smart Home Enabled
Specifications
|
Model
Parameters |
|
Model |
CS-CV310-A0-1B2WFR |
|
Camera |
|
Sensor |
1/2.7 Progressive Scan
CMOS |
|
Minimum
Illumination |
0.02 lux @(F2.0, AGC
ON), 0 lux with IR |
|
Shutter
Speed |
Self-adaptive
shutter |
|
Lens |
2.8mm@ F2.2, Horizontal
angle: 103 Diagonal angle: 118 4mm@ F2.0, Horizontal angle: 87 Diagonal
angle: 104 6mm@ F2.0, Horizontal angle: 54 Diagonal angle:
62 |
|
Lens
Mount |
M12 |
|
Day &
Night |
IR-cut filter with
auto-switching |
|
DNR |
3D
DNR |
|
WDR |
Digital
WDR |
|
Compression |
|
Video
Compression |
H.264 |
|
H.264
Type |
Main
profile |
|
Video Bit
Rate |
HD, Balanced and
Smooth. Adaptive bit rate. |
|
Image |
|
Max.
Resolution |
1920 x
1080 |
|
setting |
Brightness, contrast,
saturation, etc. (configurable via EZVIZ Studio) |
|
BLC |
Support |
|
Network |
|
Storage |
Support Micro SD card
(Max. 128G) |
|
Smart
Alarm |
Intelligent motion
detection |
|
Wi-Fi
Pairing |
SmartConfig (Wi-Fi
One-Key Configuration)/AP paring |
|
Protocol |
EZVIZ cloud proprietary
protocol |
|
Interface
Protocol |
EZVIZ cloud proprietary
protocol |
|
General
Features |
Anti-Flicker,
Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection,
Watermark |
|
Communication
Interface |
RJ45 10M/100M
self-adaptive Ethernet port*1 |
|
Minimum Network
Requirements |
2Mbps |
|
Wi-Fi |
|
Standard |
IEEE802.11
b/g/n |
|
Frequency
Range |
2.4 GHz ~ 2.4835
GHz |
|
Channel
Bandwidth |
Supports
20MHz |
|
Security |
64/128-bit WEP,
WPA/WPA2, WPA-PSK/WPA2-PSK |
|
Transmission
Rate |
11b: 11Mbps, 11g:
54Mbps, 11n: 150Mbps |
|
General |
|
Operating
Conditions |
-30C ~ 60C, Humidity
95% or less (non-condensing) |
|
Power
Supply |
DC
12V10% |
|
Power
Consumption |
Max.
6W |
|
IP
Grade |
IP66 |
|
IR
Range |
Max.
30meters |
|
Product
Dimensions |
150.44mm x 85.80mm x
71.64mm |
|
Packaging
Dimensions |
252mm x 110mm x
92mm |
|
Weight |
326g |
