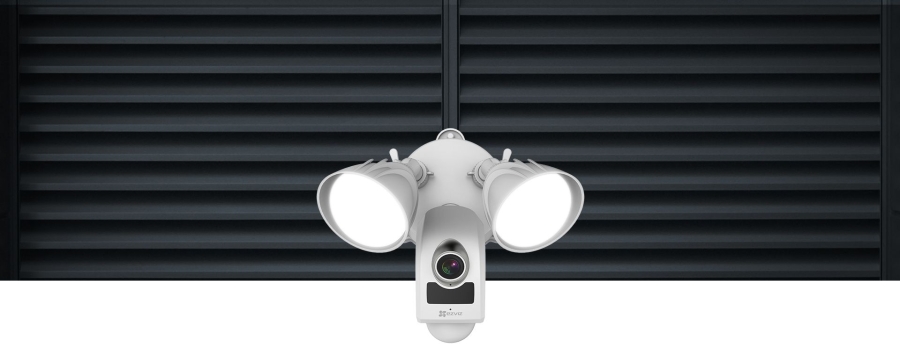

Ezviz LC1 Smart Security Camera
Overview
Light up dark spots and add security to outdoor areas around your house with
a powerful full-HD security camera armed with ultra-bright lights and
defense.
- Dual Lights, 2500-Lumen Brightness
- IP65 Dust and Water Protection
- PIR Motion Detection (270-degree)
- FHD1080p
- Active Defense
- Two-Way Talk
- Night Vision (up to 18 meters)
- Supports MicroSD Cards (Up to 128 GB)
Light the Way Back Home
With dual lights that produce a combined brightness of 2500 lumens, the LC1
brightens up your way home and illuminates every dark corner of your front
porch, backyard, and anywhere else that needs light.
Extra Protection with Active Defense
When someone enters LC1s 270-degree PIR motion detection area, it emits a 100
dB alarm with flashing light to deter potential intruders. Simultaneously it
sends an alert with captured images to your smartphones. You can also customize
the detection area to keep an eye on places where you need it the
most.
Sharpest Night Guard
The LC1 supports night vision up to 18 meters (60 ft.). It renders sharp,
full-HD 1080p images even where there are no lights, so you keep a vigilant eye
all night long.
Strong and Durable
Design for outdoor use, the LC1 braves any weather sun, rain, or snow, it
stands strong.
Multiple Storage Solutions
The LC1 comes with a built-in MicroSD card slot that can store up to 128 GB
of recorded footage. You can also save your images to EZVIZ Cloud* for
additional back-up.
Security at Your Fingertips
With the EZVIZ App and EZVIZ Studio Software, you can capture, save, protect,
and share whats valuable to you.
- Live View
- Real-Time Talk
- Instant Alerts
- Video History
- Up to 8x Zoom
- Smart Home Enabled
Specifications
|
Model
Parameters |
|
Model |
CS-LC1-A0-1B2WPFRL |
|
System
Parameters |
|
Processor |
High-Performance
Embedded SOC Processor |
|
Operation
System |
Embedded
Linux |
|
Light
Parameters |
|
Lamp |
2 |
|
LED |
SMD
LED |
|
Brightness |
2500LM
(-10%) |
|
CRI |
80 |
|
Color
Temperature |
3000k |
|
Life-span |
@B50L70 @Ta 25
48000H |
|
PIR Sensor
Detection |
|
Detection
Distance |
30
ft |
|
Detection
Range |
270
degrees |
|
Motion
Detection |
Supports |
|
Camera
Parameters |
|
Resolution |
1080p |
|
Field of
View |
140(Diagonal),
115(Horizontal) |
|
Night
Vision |
Up to
18m/60ft |
|
Video
Parameters |
|
Compression
Standard |
Smart
H.264 |
|
Max.
Resolution |
1920 1080,
FHD |
|
Frame
Rate |
50Hz @ 25fps, 60Hz @
30fps Adaptive frame rate of network transmission |
|
DNR |
3D
DNR |
|
BLC |
Supports |
|
Audio
Parameters |
|
Audio
Input |
Built-in omni-direction
microphone |
|
Audio
Output |
Built-in
loudspeaker |
|
Audio
Quality |
Noise
suppression |
|
Network
Parameters |
|
Wireless |
Wireless 802.11 b/g/n
@2.4GHz only (2T2R, Dual-antenna) |
|
Network
Configuration |
Soft AP
Configuration |
|
Minimum network
requirement |
2.0
Mbps |
|
Storage
Parameters |
|
Local
Storage |
Support Micro SD Card
(Up to 128GB) |
|
Cloud
Storage |
EZVIZ Cloud Storage
(Optional) |
|
Event |
|
Sensor |
PIR Motion Detection
Sensor |
|
Alarm |
Customized Alert
Area |
|
Intelligence |
Motion
Detection |
|
General |
|
Siren |
100-decibel
alram |
|
Fixture
Material |
Cast aluminum (Lights)
and Plastics (Camera) |
|
Operating
Conditions |
-30C ~ 50C (-20F ~
120F), Humidity 95% or les |
|
Power
Supply |
Hardwired
(110V-240V) |
|
Power
Consumption |
2W (normal),8W
(max) |
|
Ingress Protection
Grade |
IP65 on camera (Wet
Location for light) |
|
Product
Dimensions |
196mm x 211mm x
227mm |
|
Package
Dimensions |
235mm x 250mm x 270
mm |
|
Weight |
1757g |
