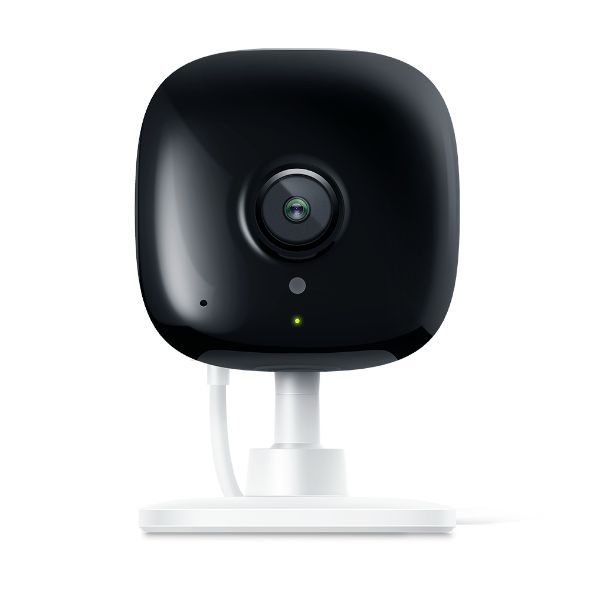

TP-Link KC100 KC Spot Camera
Overview
-
Crystal Clear Video- Sharp and clear
1080p full-HD provides high-quality video right in the palm of your
hand.
-
Wide Angle Field Of View- The Spot's
130, wide-angle field of view makes sure nothing is out of view. Set it up in
a corner and get a full view of your living room or place it on top of a shelf
to get a great view of your kitchen.
-
Instant Activity Alerts- No need to
check your Kasa Spot throughout the day. Get automatic alerts when your Spot
detects motion or sound.
-
Night Vision- Even in the dark, the
Kasa Spot has Night Vision up to 20 feet. Never miss a thing at night and
still get the same high-quality video youre used to.
-
Two-way Audio- Use crisp two-way audio
to communicate with nosy roommates, family or even mischievous pets.
-
Activity Zones- Configure up to 4
customizable zones for more meaningful alerts at no cost to you. Place zones
around your front door, kitchen or anywhere you like to focus your cameras
view.
-
24/7 Live View- Keep an eye on whats
important to you real-time from anywhere with the Kasa Smart app. Even stream
live video to any Alexa or Google Assistant supported display, like a Fire TV,
Echo Show or
Chromecast.
Kasa Spot Always Spot On
1080P Full-HD Video
130 Field of View
Instant Activity Alerts
Two-Way Audio
20 ft. Night Vision
Up to 30 days of Cloud Storage
Small and Mighty
Keep an eye on your things with the highly affordable Kasa Spot indoor
security camera. Receive instant alerts and live stream 1080p HD video to your
smartphone, Alexa or Google Assistant supported displays. The Spot even provides
HD video up to 20 ft. with Night Vision. Set custom activity zones around
important areas to control what alerts you receive. And, with two-way audio,
chat with nosy roommates, family or pets.
24/7 Live View
Keep an eye on whats important to you real-time from anywhere with the Kasa
Smart app. Even stream live video to any Alexa or Google Assistant supported
display, like a Fire TV, Echo Show or Chromecast.
Typical Smart Camera 110° Angle Lens
Kasa Spot Camera 130° Angle Lens
Four Customizable Activity Zones
Create multiple activity zones around areas that are important and receive
alerts you care about.
Voice Control
Works with Amazon Alexa and Google Assistant supported devices for a
hands-free experience.
Instant Activity Alerts
No need to check your Kasa Spot throughout the day. Get automatic alerts when
it detects motion or sound.
Two-Way Audio
Use crisp two-way audio to communicate with nosy roommates, family or even
mischievous pets.
Protect Every Pixel
All your video streams are protected with industry-standard 128-bit AES
encryption with SSL/TLS right from the camera.
Crystal Clear Video
Sharp and clear, wide-angle 1080p video makes sure you never miss a
thing.
Activity Zones
Control what alerts you receive by creating up to 4 custom activity zones at
no charge, around areas that are important to you.
Making Your Connected Home a Smart Home
With a catalog that crosses several categories, including light switches,
lighting, security cameras, and plugs, Kasa Smart provides every consumer a way
to turn their home into a smart home without breaking the bank. With Kasa Smart,
your smart home is always within reach.
Specifications
|
ACTIVITY
NOTIFICATIONS |
|
Input
Trigger |
Motion detection, Audio
detection |
|
Output
Notification |
Push
notification |
|
|
|
VIDEO |
|
Video
Compression |
H.264 |
|
Frame
Rate |
15fps |
|
Video
Streaming |
1080p |
|
Audio
Compression |
AAC |
|
|
|
SYSTEM |
|
Regulatory
Certification |
FCC, IC,
CE |
|
System
Requirements |
iOS 10+, Android
4.4x+ |
|
|
|
ENVIRONMENT |
|
Operating
Temperature |
0C~40C
(32F~104F) |
|
Storage
Temperature |
-20C~70C
(-4F~158F) |
|
Operating
Humidity |
10%~90%RH
non-condensing |
|
Storage
Humidity |
5%~90%RH
non-condensing |
|
|
|
PACKAGE
CONTENTS |
|
Package
Contents |
Kasa
Spot |
|
Power
Adapter |
|
10 ft USB
Cable |
|
Quick Start
Guide |
|
Mounting
Screws |
|
Mounting
Template |
|
|
|
HARDWARE |
|
Button |
RESET
button |
|
Indicator
LED |
System
LED |
|
Adapter
Input |
100-240VAC, 50/60Hz,
0.2A |
|
Adapter
Output |
5.0VDC,
1.0A |
|
Product Dimensions (W x
D x H) |
2.3 x 2.0 x 3.5 in. (59
x 49.6 x 88.6 mm) |
|
|
|
CAMERA |
|
Sensor |
1/2.7(6.6) |
|
Resolution |
1080p HD 15
fps |
|
Lens |
F/NO: 2.0; Focal
Length: 3.21mm |
|
Viewing
Angle |
FOV =
130 |
|
Night
Vision |
850 nm IR LED up to 20
ft |
|
|
|
AUDIO |
|
Audio
Communication |
2-way
audio |
|
Audio Input &
Output: |
Built-in microphone and
speaker |
|
|
|
NETWORK |
|
Security |
128 bit AES encryption
with SSL/TLS |
|
Wireless
Rate |
11Mbps(802.11b) |
|
54Mbps(802.11g) |
|
150Mbps(802.11n) |
|
Frequency |
2.4GHz |
|
Wireless
Security |
WEP,
WPA/WPA2-PSK |
