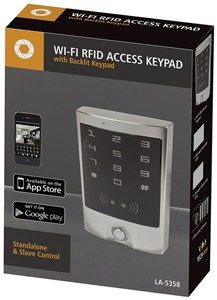

Generic Wi-Fi RFID Access Keypad

Product May Vary From Image
Our Price:
Part No:
Manuf No:
Ship Weight:
1 KG  Details
Usually Ships:
1-3 Days   More info
Product Description
Open the door remotely with your Android or iOS smartphone through this Wi-Fi access card reader. It can be connected to a door strike, exit button and external alarm to open doors and sound the alarm. Can be used as a standalone access card reader or controlled by an external access controller. Also includes a timer function for allowing people access for a temporary period of a time such as a delivery man.

. Control Doors Remotely
. Free iOS &Android App
. Touch Keypad
. Control Via Access Controller or Single Door Entry
. Waterproof
. Backlit keypad
. Anti-Tamper &Anti-Vandal

Voltage: 12-24VDC
Card Type: EM 125KHz / HID
Card Reading Distance: 3-6cm
Adjustable Door Relay time: 0-99 seconds
Adjustable Alarm Time: 1-3 minutes
Weigand Interface: 26-37 bit
Wiring Connection: Electric Lock, Exit Button, External Alarm
IP Rating: IP65
Standby Current: 35mA


IP Rating : 65
Width : 83.0mm
Height : 125.0mm
Depth : 22.0mm
DC Voltage : 12.0V, 24.0V
Number of Buttons : 12.0

Product Warranty

1 Year Return to Base
