Overview
The all-seeing-eye that gives you 360 coverage that captures it all.
Fisheye lens High-resolution 3-megapixel sensor Distortion correction
The Vigilance Camera Range offers professional video surveillance that is
easy to install and highly affordable.

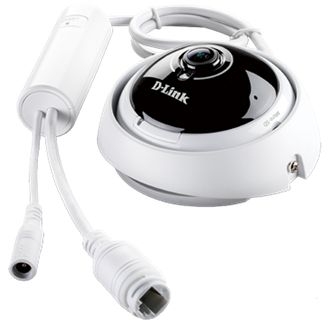

DCS-4622 is a Full HD 360° network camera as an entry type for video
surveillance and security. This camera adopts 3 megapixel progressive scan CMOS
sensor The camera is designed for both indoor and day/night applications, thus,
the camera built-in removable IR-cut filter and IR LED which can support up to
25 ft distance.
The DCS-4622 has a built-in 802.3af compliant PoE module that simplifies
installation by providing power and networking connectivity with a single cable,
reducing the need to drill holes or lay additional cabling. The included D-Link
D-ViewCam™ is sophisticated software which allows users to manage up to 32
network cameras, set e-mail alert notifications, create recording schedules, and
use motion detection to record directly to a hard drive. D-ViewCam™ also allows
users to upload a floor plan to create a realistic layout of the premises where
cameras are located, further simplifying the management process.
360 Surveillance
The DCS-4622 uses a fisheye lens to provide incredible wide angle coverage;
simply place it on a wall for panoramic 180 wall-to-wall coverage of a room, or
place it on a ceiling for a full 360 view without blind spots. Distortion
correction fixes the camera video so you can use ePTZ to zoom in, zoom out and
pan across your cameras video to survey a large area with ease.
Security in High Definition
Crisp Full HD, 3 megapixel video gives you a clear view of what's going on.
High definition resolution and a compact design makes the DCS-4622 Ideal for
small, medium and large enterprise installations.
Continuous Monitoring with Night Vision
Built-in IR LED illuminators automatically turn on depending on lighting
conditions, allowing the camera to capture video even in low-light or no-light
conditions.
Combined with the IR-Cut filter, the DCS-4622 can also provide sharp
grayscale video in low-light conditions. Embedded with a powerful SoC
(System-on-Chip), the camera provides real-time video compression in H.264 and
MJPEG formats.
Motion Detection
Motion detection lets you record events with ease and can even save snapshots
and video before the event even happens so you can get the whole picture.
PoE = Convenience
Power over Ethernet makes surveillance installation simpler, safer and less
expensive. The DCS-4622 has a built-in 802.3af compliant PoE module, allowing
for single cable deployment and reducing the need to drill holes or lay
additional cabling.
*The DCS-4622 can also be powered by a standard 12V DC, 1.5A power
adapter (not included).
Video Management Software (VMS)
Manage your cameras with the free VMS solution called D-ViewCam, a complete
surveillance software package that enables you to view, manage and record up to
32 cameras on a single computer. In addition, the DCS-4622 is Onvif-compliant
and supported by several VMS solutions to seamlessly integrate with other vendor
IP cameras and NVRs.
Specifications
Night Vision Range : |
8m |
Motion Detection : |
Yes |
Lens Focal Length : |
1.1mm |
Email Notification : |
Yes |
Video Compression : |
MJPEG|H.264 |
Lens Type : |
Fixed |
Horizontal Field of View : |
180 (H) 360 (V) degrees |
Image Enhancement : |
3D Filter|WDR|BLC|AES|AGC|AWB |
Vandal-proof : |
No |
Power : |
PoE, Optional Power Supply |
Memory Card Slot : |
Micro SD |
ONVIF Compliant : |
Yes |
Dimensions (Size) : |
97 x 97 x 48 mm |
Warranty : |
Limited Lifetime |
Motorised Pan / Tilt : |
No |
Optical Zoom : |
Digital zoom magnifies image area up to 10 times |
Max Resolution : |
Full HD + |
Camera Type : |
Dome |
Design : |
Night Vision|PoE |
Housing Type : |
Dome |
Indoor / Outdoor : |
Indoor |
Megapixels : |
3 MP |
Max. Video Resolution : |
1920 x 1536 @ 25fps |
Night Vision : |
Yes |
