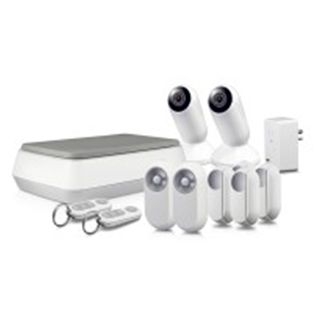

Swann SWO-ASH01K Advanced Smart Home Control Kit
Includes 2xIndoor Cameras, 2xMotion Sensor, 4xWindow & Door Sensors, 2xKeyfob, 1xSmart Plug, To Suit iOS & Android Devices

Product May Vary From Image
Sharing & Social
Manuf No:
Usually Ships:
1-3 Days   More info
Part No:
Not Rated
Product Description



Combine alarm & video monitoring security with appliance & energy management for larger homes and businesses in one simple solution


Bring together advanced security features along with energy management for a complete smart home or business with the SwannOne Advanced Smart Home Control Kit.

With four door & window sensors, two motion sensors and two high definition indoor cameras, the Advanced Smart Home Control Kit enables you to protect a large number of areas within your home or business.Combined with the SwannOne app you can monitor and control your home or business from anywhere.

Mobile alerts on your Smartphone or tablet will keep you updated when a sensor has been triggered, while the Smart Hub listens out for glass door and window breakage. You can also turn any plug-in appliance on or off remotely, while monitoring its energy usage with the included Smart Plug.

Plug & Play Out of the Box

When you register with SwannOne youwill have access to the Home EssentialsPlan. This entitles you to the followingadvantages free of charge


Email alerts and Smartphone push notifications for 2 users

Appliance Control

Turn appliances on, off & create schedules

Live video Streaming

Real-time footage of what is going on at your home

Intelligent Sound Alerts

Includes access to the glass door & window breakage sound alerts


A user portal allowing you to control your SwannOne system & customize it to the way you like it - manage your contacts, personal details, change rules & more

Expandable to your needs


To get even more out of your SwannOnesystem, you can select from a rangeof flexible plans which are available forpurchase on a Pay as You Go (PAYG)basis or monthly subscriptions with nolock-in contracts


The paid services will provide you with the ability to add additional users to your system, enhanced automation & rules capabilities, access to multiple properties, additional sound alerts, cloud video storage & professional services including centralized security monitoring.



  • Detect Entry

    Detects open & closed status, with magnetic sensor on either side of door & window frames

  • Detect Motion

    If the PIR sensor detects movement an audible alarm can be triggered & an alert is sent to your Smartphone

  • Detects Sounds

    In-built microphone to hear glass door & window breakage. Additional sounds are available via optional plans

  • Easy Set Up

    Fitted with a 3M Command strip to enable easy installation & relocation. No drilling, no holes!

  • Energy Management

    Measure the energy consumption for any plug-in devices eg TV, washing machine, DVD player, floor lamp & more

  • High Definition

    Enjoy crisp video footage of your home or business in 720p high definition

  • Mobile Alerts

    Receive alerts on your Smartphone or tablet

  • Night Vision

    Keep an eye on things, day & night with infrared night vision

  • Remote Viewing

    View all your cameras from the SwannOne app on your Smartphone or tablet

  • Remotely Control Appliances

    Turn any plug-in electrical appliances on or off from your Smartphone or web browser via the SwannOne app

  • Secure and Private

    All communications are secured with international best practice encryption, ensuring your privacy

  • SwannOne App

    Monitor & control your home security from anywhe



                                                                                  Technical Specifications

                                                                                  SwannOne Smart Hub

                                                                                  Protocol: ZigBee, Wi-Fi

                                                                                  USB Port: 2 x USB 2.0

                                                                                  Wireless range: Up to 165ft / 50m, typically 65ft / 20m

                                                                                  Dimensions: 8.9 x 5.5 x 2.4 / 227 x 140 x 60.5mm

                                                                                  Weight: 23oz / 640g

                                                                                  Mobile app: iOS & Android devices

                                                                                  Number of devices supported: Up to 400

                                                                                  SwannOne SoundView Indoor Camera

                                                                                  Video quality: 720p HD

                                                                                  Viewing angle: 76

                                                                                  IR LEDs: 10

                                                                                  Dimension: 1.6 x 1.6 x 4.2 (body), 2.8 x 2.8 (base) / 41 x 41 x 106mm (body), 70 x 70mm (base)

                                                                                  Weight: 8.9oz / 253g

                                                                                  Power: 5VDC, 1.0A

                                                                                  Indoor: Indoor use only

                                                                                  SwannOne SmartPlug

                                                                                  Protocol: Zigbee HA 1.2

                                                                                  Wireless Range: 65ft / 20m^

                                                                                  Dimensions: 2.9 x 2.0 x 2.2 / 75 x 50 x 55mm

                                                                                  Weight: 3.8oz / 108g

                                                                                  Rated Voltage: 110V 60 Hz

                                                                                  Maximum Load: 1800W / 15A

                                                                                  SwannOne Motion Sensor

                                                                                  Temperature: 32158 F / 070 C

                                                                                  Dimensions: 3.76 x 1.89 x 1.26 / 95.5 x 48 x 32mm

                                                                                  Weight: 2.8oz / 80g

                                                                                  Batteries: AAA x 2 (included)

                                                                                  SwannOne Window/Door Sensor

                                                                                  Temperature: 32158 F / 070 C

                                                                                  Dimensions: 3.15 x 1.65 x 0.79 / 80 x 42 x 20mm

                                                                                  Weight: 1.6oz / 45g

                                                                                  Batteries: AAA x 2 (included)

                                                                                  SwannOne Key Fob Remote Control

                                                                                  Protocol: Zigbee HA 1.2

                                                                                  Dimensions: 2.5 x 1.05 x 0.47 / 63.5 x 26.75 x 12mm

                                                                                  Weight: 1oz / 30g

                                                                                  Batteries: CR2032 x 1 (included)

                                                                                  System Requirements

                                                                                  Internet Connection: High-Speed

                                                                                  Minimum Upload Speed: 256kbps per camera

                                                                                  Wireless Network: Wi-Fi b/g/n

                                                                                  Internet Browser: Internet Explorer 9+, Firefox, Safari 7+, Chrome

                                                                                  Compatible Devices: iOS 7, iPhone, iPod Touch, iPad or Android devices.

                                                                                  Windows & Mac Operating Systems
