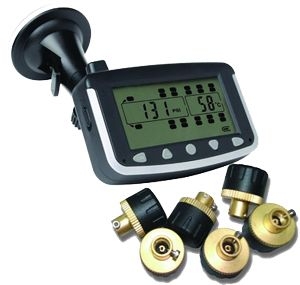

AXIS External Cap TPMS Tyre Pressure Monitoring System - 6 Sensors, Heavy Vehicle
LCD Screen, Pressure Range 0-188 PSI, Operating Temperature -40C - 80C, Fast Leakage Alert

Product May Vary From Image
Sharing & Social
Brand:
Manuf No:
EK215H6
Usually Ships:
1-3 Days   More info
Part No:
410356
Rating:
Not Rated
Price:
$476.85
Quantity:
Product Description

Specifications

Monitor

  • - Reliable & easy to install
  • - Large LCD screen
  • - Can detect up to 22 Sensors
  • - 8~30V DC Power
  • - Built in rechargable lithium battery
  • - Auto backlight
  • - Configurable high/low pressure warnings
  • - Configurable high temperature warnings
  • - Visible and audible alerts
  • - Selectable pressure units
  • - Long range between sensors and monitor
  • - Per axle measurements can be configured on tractor
  • - On-glass holder
  • - Operating Temperature: -20C - 80C
  • - Charger Input Voltage: DC 8 - 30V
  • - Transmission Frequency: 433.92MHz
  • - Size: 116(L) x 68(W) x 25(H)mm
  • - Weight: 138g

Sensors

  • - Reliable cap type
  • - Easy to install
  • - Water resistant
  • - Replaceable sensor batteries (approx 2 year battery life)
  • - Fast leakage alert
  • - Individually coded sensors
  • - Anti-theft design
  • - Pressure range: 0 to 188 PSI
  • - Operating Temperature: -40C - 80C
  • - Pressure Accuracy: 1.5 psi
  • - Temperature Accuracy: 3C
  • - Transmission Power < 10dBm
  • - Transmission Frequency: 433.92MHz
  • - Size: 24mm (diameter), 19.5mm (height)
  • - Weight: 30g

Optional Repeater (RP02)

For trailer-exchange applications

  • - Maintains signal stability
  • - Records sensor ID, trailer ID and
  • tyre pressure & temperature limits
  • - Supports truck & trailer exchange
  • - Transferable trailer sensor data between monitor
  • - Visible and audible alerts
  • - Fixed alerts for high temp (90)

For signal booster application

  • - Enhance the signal from sensors and ensure that the stablility of receiving signal from sensors
  • - Operating Temperature: -20C - 80C
  • - Working Voltage: 12-24V
  • - Transmission Power < 18dBm
  • - Transmission Frequency: 433.92MHz
  • - Size: 91(L) x 38(W) x 15(H)mm
  • - Weight: 42g

Optional

  • - Add up to 22 Sensors (H188)
  • - Transceiver for Trailer (RP02)
