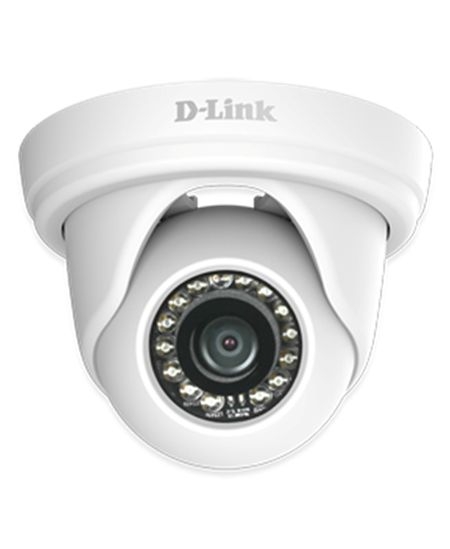

D-Link DCS-4802E Vigilance Full HD Day & Night Camera
Full HD 1920x1080, 1/3 2 Megapixel Progressive CMOS Sensor, 60 ft IR Illumination, 10x Digital Zoom, IP66, H.264 & MJPEG

[Large image available]

Product May Vary From Image

Part No:

409451

Brand:

D-Link Web Site

Manuf No:

DCS-4802E

DCS4802E

Usually Ships:

No Longer Available More info

Ship Weight:

2 KG Details

Product Description

Overview

The D-Link DCS-4802E Vigilance Full HD Outdoor Mini Dome Network Camera is a high definitionprofessional surveillance and security solution suitable for small, medium, and largeenterprises. The camera uses a high-sensitivity 1/3 megapixel progressive scan CMOS sensorwith digital WDR image enhancement to deliver balanced video in varying lighting conditions.The compact rugged design makes this camera ideal for deployment in a wide variety ofsurveillance applications. The unique design with 3-axis adjustment allows for precisepositioning of the lens, supporting 360 Pan, 360 Rotation, and 75 Tilt.

High-Quality Streaming & Recording

To maximize bandwidth efficiency and improve image quality, the DCS-4802E provides realtimevideo compression using the H.264 and MJPEG codecs, and supports three separateprofiles for simultaneous video streaming and recording. This versatility enables a wide varietyof security applications, such as monitoring public areas to detect incidents and to coordinateresponses, enforcing access control to restricted areas, deterring criminal activity, or monitoringinventory.

Continuous Monitoring

The DCS-4802Es digital wide dynamic range (WDR) video enhancement gives you improvedimage quality in environments with uneven or difficult lighting, so you can identify subjectsthat are backlit or in brightly lit areas. In low-light situations, the IR cut filter automatically slidesout of the way to use all available light. The DCS-4802E also has built-in IR LED illuminatorswith a 60 foot range, allowing the camera to keep watch even in complete darkness. Thesefeatures work together to give you a reliable surveillance camera capable of monitoring anarea 24 hours a day.

Flexible Connectivity

The DCS-4802E has a built-in 802.3af compliant PoE module that simplifiesinstallation by providing power and networking connectivity with a singlecable, reducing the need to drill holes or lay additional cabling.

Five Year Warranty

D-Link stands behind the quality of the DCS-4802E with an includedlimited 5-year warranty. An optional extended warranty doubles the warranty to 10 years and adds next business day hardware replacement.*

Features

2 Megapixel Full HD Video

1/3 megapixel progressive CMOS sensor
Full HD resolution (1920 x 1080)
Digital Wide Dynamic Range
H.264 & MJPEG codec support for streaming and recording
Motion detection
Privacy mask
3D filtering reduces noise in low-light environments

Indoor or Outdoor Placement

Built-in IR LED illuminator with a 60 foot range for use in dark areas
Range of mounting options for flexible placement
3-axis adjustment allows for precise positioning of lens
Rugged IP66 weatherproof housing

Network

Power over Ethernet (PoE) provides easy and flexible integration into your network
ONVIF compliant

Specifications

Camera
Hardware Profile	1/3 2 Megapixel Progressive CMOS Sensor
	60 ft IR Illumination Distance
	Minimum illumination
	1 Lux Color mode
	0.55 Lux Black and White mode
	0 Lux Black and White mode with IR LED on
	Automatic Infrared-Cut Filter module for night viewing
	10x digital zoom
	Minimum object distance: 8"
	Focal length: 2.8mm
	Aperture F2.0
	Angle of view
	(H) 96
	(V) 54
	(D) 108
	Adjustment angle (non-motorized)
	Pan: 360
	Tilt: 75
	Rotation: 360
Camera Housing	IP66 compliant weatherproof housing
Image Features	Configurable image size, quality, frame rate, and bit rate
	Time stamp and text overlays
	Configurable motion detection windows
	Configurable privacy mask zones
	Configurable exposure time, brightness, saturation, contrast, contrast, sharpness, digital WDR and 3D filter
Video Compression	Simultaneous H.264/MJPEG triple format compression
	H.264 multicast streaming
	JPEG for still images
Video Resolution	16:9 - 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360
Video Resolution	4:3 - 1440 x 1080, 1280 x 960, 1024 x 768, 800 x 592, 640 x 480
Frame Rate	Up to 30 fps
External Device Interface	10/100 BASE-TX Ethernet port
External Device Interface	Supports 802.3af PoE Class 2
Network
Network Protocols	IPv6
	IPv4
	ARP
	TCP/IP
	UDP
	ICMP
	DHCP client
	NTP client (D-Link)
	DNS client
	DDNS client (D-Link)
	SMTP client
	FTP client
	HTTP / HTTPS
	Samba client
	PPPoE
	UPnP/UPnP port forwarding
	RTP / RTSP/ RTCP
	IP filtering
	CoS
	QoS/DSCP
	SNMP
	Bonjour
	ONVIF compliant
Security	Administrator and user group protection
	Password authentication
	HTTP and RTSP digest encryption
System Management
System Requirements for Web Interface	Browser: Internet Explorer 8 or higher, Firefox, Chrome, Safari
Event Management	Motion detection
	Event notification and uploading of snapshots/video clips via e-mail or FTP
	Supports multiple SMTP and FTP servers
	Multiple event notifications
	Multiple recording methods for easy backup
Remote Management	Take snapshots/video clips and save to local hard drive or NAS via web browser
Remote Management	Configuration interface accessible via web browser
OS Support	Windows 2000/XP/Vista/Windows 7/iPhone/iPad/Android
D-ViewCam System Requirements	Operating System: Microsoft Windows 8/7/Vista
	Web Browser: Internet Explorer 7 or higher
	Protocol: Standard TCP/IP
D-ViewCam Software Functions	Remote management/control of up to 32 cameras
	Supports all management functions provided in web interface
	Viewing of up to 32 cameras on one screen
	Scheduled motion triggered, or manual recording options
General Specifications
Weight	0.82 lbs (370 grams) 5%
Power over Ethernet	802.3af Class 2
Power Adapter (not included)	Input: 100 to 240V AC, 50/60 Hz
Power Adapter (not included)	Output: 12V DC 1.5A
Power Consumption	5.2 Watts 5%
Operating Temperature	-22 to 124 F (-30 to 50 C)
Storage Temperature	-4 to 158 F (-20 to 70 C)
Operating Humidity	20% to 80% non-condensing
Storage Humidity	5% to 95% non-condensing
Certifications	CE (Class A)
	CE LVD
	FCC (Class A)
	C-Tick
Dimensions	Diameter: 4.45 (113 mm)
Dimensions	Heigth: 3.35 (85 mm)
Warranty
Warranty	12 Month Warranty1

5-YearWarranty available only in the USA.

Product Warranty

12 Month Return To Base
