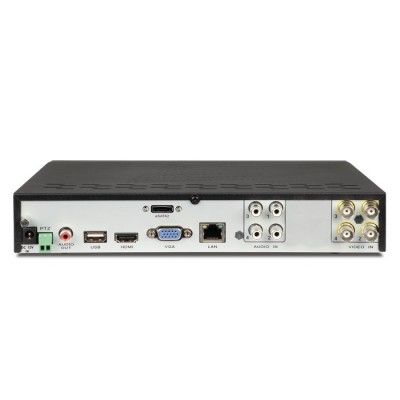

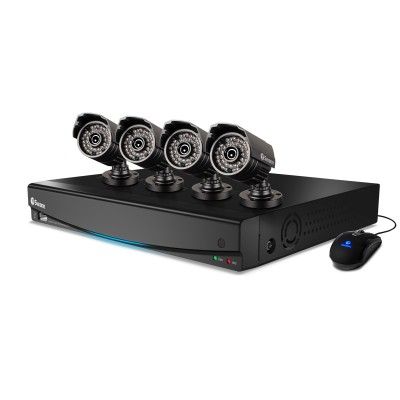

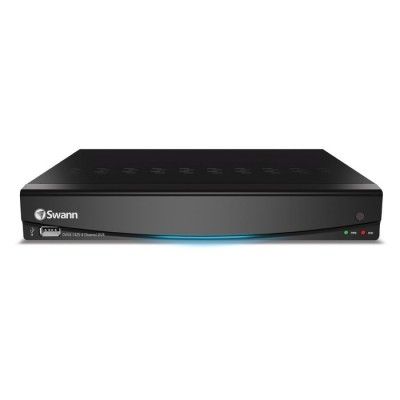

DVR4-1425 4 Channel D1 Digital Video Recorder & 4 x PRO-510 Cameras
SWDVK-414254
4 Channel D1 Digital Video Recorder with pre-installed 500GB HDD / 4 x 540 TVL line Cameras / H.264 latest recording technology / HDMI Output / Web and Smartphone remote viewing / Transfer incidents to USB flash drive,
D1 Security Recording Kit with Internet & Smartphone Viewing. Protect your home and business from the palm of your hand!
D1 Real Time Full Screen Resolution
+ 30 days recording achieved using lower settings, default settings give 6 days recording * Mobile phones not included, check the website for the latest models Not all handset models supported ** Applies to modems that have UPnP function
Video Inputs
4 x Channels BNC
Display Resolution
1024 x 768, 1280 x 1024, 1280 x 720, 1920 x1080
Display Frame Rate
NTSC: 30fps/channel / PAL: 25fps/channel
Audio Output
1 RCA Output
Recording Resolution
NTSC: D1 (704 x 480), CIF (352 x 240)
PAL: D1 (704 x 576), CIF (352 x 288)
Recording Frame Rate
NTSC: 30fps D1 / PAL: 25fps D1
Recording Modes
Manual / Schedule / Motion
Multiplex Operation
Multiplex
HDD Interface / Memory Type
500GB SATA2 HDD (installed)
Hard Drive Support
Up to 2TB SATA2 HDD
Network Interface
One RJ45 port
Network Protocol
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP
Remote Operation
IE, MyDVR, CMS, SwannView
Dimensions
10.23" x 9.0" x 1.6" / 260mm x 230mm x 40mm
Back-up Method
USB to Flash Drive / Network
Remote Control
Yes (uses 2 x AAA, included)

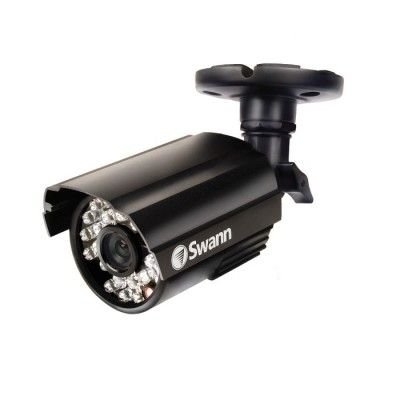

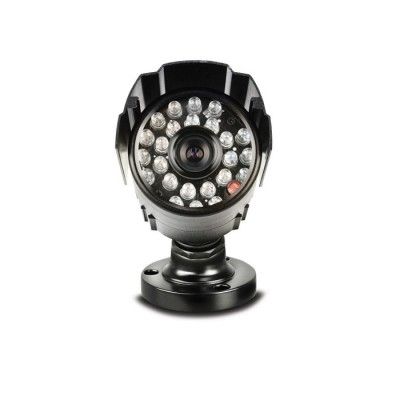

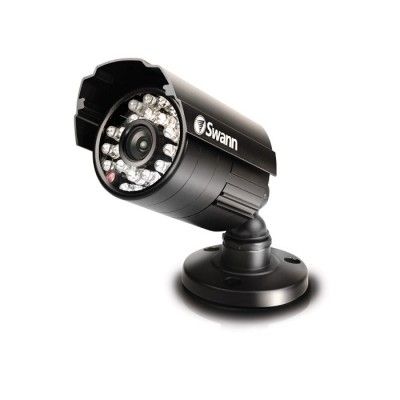

PRO-510 Camera
Image Sensor
SwannTruColor (STC)
Video Quality
540 TV Lines
Minimum Illumination
0 Lux (IR on)
Day/Night Mode
Color during day / switches to B&W at night
Electronic Shutter
1/60 - 1/100,000 NTSC
1/50 - 1/100,000 PAL
Viewing Angle
60 degrees
Night Vision
Night Vision Distance
Up to 65ft / 20m
Number of Infra-Red LEDs
24
Operation Temperature
-4 degrees F to 113 degrees F
-20 degrees C to +45 degrees C
Body Construction
Aluminum
Camera & Stand Dimensions
6.5 x 4.5 x 3.15
165mm x 115mm x 67mm
Camera & Stand Weight
1.02lbs / 465g
