Home & Business Security Monitoring Starter Kit – 4 Channel DVR4-950 / 2 x PNP-150 Day/Night Cameras
Monitor & record up to 4 cameras simultaneously with this value for money DVR kit. Includes 2 indoor/outdoor day/night cameras. Motion detection records activity to hard drive or use USB for easy back-up of incidents.
When it comes to your security, knowledge truly is power. While a quality alarm system may help ward off intruders, it won’t give you the vital information you need to prevent future break-ins. For true night-and-day protection every day of the year, you need to capture the evidence at the source.
With the DVR4-950™ 4 Camera Monitoring & Recording System from Swann, peace of mind has never been easier—or more affordable. With the ability to monitor, record and view four day/night, indoor/outdoor cameras simultaneously, the DVR4-950™ protects your home or business with total coverage, without any security “blind spots.” By switching to the state-of-the-art motion detection mode, the DVR4-950™ only records activity so there’s no “dead” footage to wade through, saving hard drive space in the process. With its ultra-compact design and small footprint, it won’t clutter up your home or work environment. It even comes with a built-in remote so you’ll never get stuck searching for the control. The DVR4-950™ system also includes four security cameras that can see in the dark up to 30 feet / 9m with the ability to monitor indoors or outdoors thanks to their sturdy anti-corrosive construction. Best of all, the DVR4-950™ 4 Camera Monitoring & Recording System is incredibly easy to connect to your TV or transfer video footage to a USB flash drive / memory stick, making it an ideal solution for even the least technical of users. The DVR4-950™ Monitoring & Recording System from Swann.
Arm yourself with true knowledge.
Product Info
* Monitor & record up to 4 cameras simultaneously.
* Complete peace of mind 24/7 at an affordable price with no ongoing costs
* Set & forget by recording continuously from four cameras for over 60+ days
* Easily backup & retain video footage if there's an incident
* Includes 2 indoor, outdoor, day & night security cameras, add 2 more cameras for 4 channel monitoring
* Protect the people you care about & reduce the cost of crime
Specifications

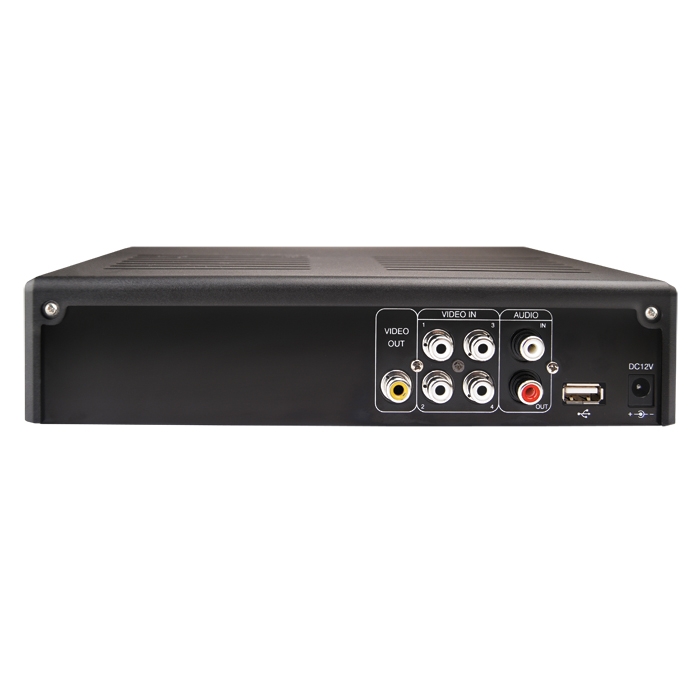

| DVR4-950 |
| |
Video |
|
Video Format
|
NTSC or PAL |
|
Video Inputs
|
4CH Composite |
|
Video Outputs
|
1CH Composite |
|
Display Resolution
|
NTSC: 640 x 448
PAL: 640 x 544 |
|
Display Frame Rate
|
NTSC: 120fps (4 x 30)
PAL: 100fps (4 x 25) |
| |
Audio |
|
Audio Input
|
1 RCA Input |
|
Audio Output
|
1 RCA Output |
| |
Recording |
|
Compression Format
|
Advanced MJPEG |
|
Recording Resolution
|
NTSC: 640 x 224
PAL: 640 x 272 |
|
Recording Frame Rate
|
NTSC: 60fps Quad View
PAL: 50fps Quad View |
|
Recording Modes
|
Manual / Schedule / Motion |
|
Multiplex Operation
|
Triplex |
|
HDD Interface / Memory Type
|
SATA |
|
Hard Drive Support
|
Up to 1TB |
| |
Network |
|
LAN Connection
|
No |
|
Network Interface
|
No |
|
Network Protocol
|
No |
|
Remote Operation
|
No |
| |
General |
|
Operating Power
|
DC 12V |
|
Dimensions
|
8.9" x 8.2" x 2.1"
225mm x 208mm x 53mm |
|
Weight
|
2.8lbs / 1.3kg |
|
Back-up Method
|
USB to Flash Drive |
|
Mouse Support
|
No |
|
Remote Control
|
Yes |
|
Remote Control Battery Type x Qty
|
Lithium battery CR2025 / 3V |
| PNP-150 |
|
|
Video
|
|
Image Sensor
|
1/3" CMOS |
|
Video Quality
|
400 TV Lines |
|
Number of Effective Pixels
|
510 x 492 (NTSC), 628 x 582 (PAL) |
|
Minimum Illumination
|
0 Lux (IR on) |
|
Day/Night Mode
|
Color during day / switches to B&W at night |
|
White Balance
|
Automatic |
|
Signal / Noise Ratio
|
> 50dB |
|
Electronic Shutter
|
1/60 - 1/15,000 NTSC
1/50 - 1/15,000 PA |
|
Gain Control
|
Automatic |
|
Backlight Compensation
|
Automatic |
|
Wide Dynamic Range
|
N/A |
|
Lens
|
6mm |
|
Viewing Angle
|
53 |
|
|
Audio
|
|
Microphone
|
No |
|
Audio Range
|
N/A |
| |
Night Vision
|
|
Night Vision Distance
|
Up to 30ft / 9m |
|
IR Cut Filter
|
No |
|
Number of Infra-Red LEDs
|
30 |
|
Infra-Red Wavelength
|
850nm |
|
Infra-Red LED Life
|
10,000 hours |
| |
General
|
|
Indoor / Outdoor
|
Indoor / Outdoor |
|
Operating Temperature
|
14F ~ 122F
-10C ~ 50C
|
|
Body Construction
|
ABS Plastic |
|
Dimensions - Camera & Stand
|
N/A |
|
Dimensions - Camera
|
5.5 x 2.8 x 2.8 (140mm x 70mm x 70mm) |
|
Dimensions - Stand
|
4.5 x 2.3 x 2.3(120mm x 60mm x 60mm) |
|
Weight - Camera
|
0.4lbs / 180g |
|
Weight Camera & Stand
|
0.5lbs / 235g |
|
Cable Length
|
50ft / 15m |
|
