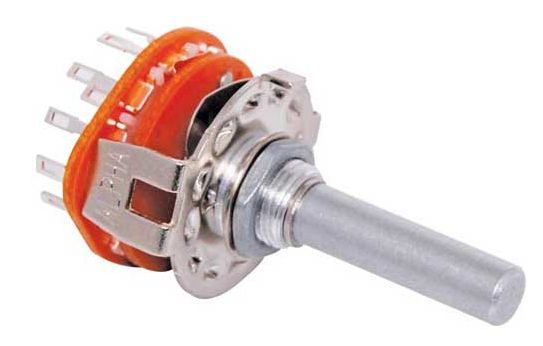

NoBrand 2 Pole 6 Position Wafer Rotary Switch

[Large image available]

Product May Vary From Image

Part No:

115114

Brand:

NoBrand

Manuf No:

S3036

Usually Ships:

No Longer Available More info

Ship Weight:

0.0126 KG Details

Product Description

Specifications

Shaft Ø: 6.35mm
Shaft Length: 30mm
Shaft Shape: Round
Contact Timing: Break before make
Contact Rating: 125V AC/DC @350mA
Termination: Solder Tag Terminals

Top View

Profile Diagram

PCB Pad Layout

Product Warranty

1 Year Return to Base
