NoBrand Ring Terminal - Blue, 6mm, Pack of 100

[Large image available]

Product May Vary From Image

Part No:

106795

Brand:

NoBrand

Manuf No:

H2057B

Usually Ships:

No Longer Available More info

Ship Weight:

0.174 KG Details

Product Description

Wire: 1.5 - 2.5mm
Stud: 6mm
Max Voltage: 600V
Pack Qty: 100

What is a double crimp?
A double crimp features two crimping surfaces. Firstly, an inner crimping ring which is directly attached to the spade lug, this crimps to the exposed cable core. Secondly the outer crimping ring secures both the cable core and outer sheath to the crimp terminal. This results is a vastly more reliable connection.

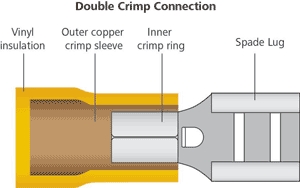

The diagram below shows how the outer crimping ring surrounds the inner ring, ensuring a quality connection every time. For best results, use the Altronics T 1552A.

Note: Crimp shown is an example only.

Product Warranty

1 Year Return to Base
