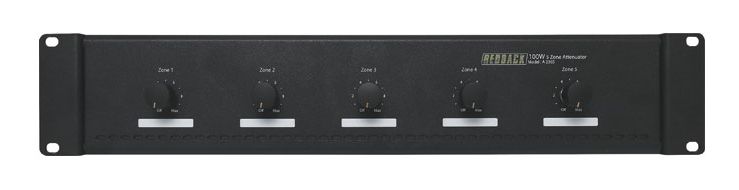

Redback Attenuator Volume Control 5 Zone Evac 100W / 100V Line

These controllers can be configured as either five single inputs to five outputs or one input to five outputs. Each zone has a 100W load capacity, with a total panel capacity of 500W. The 100W model has ten position plus off. The input and outputs are connected via heavy duty screw terminals on the rear panel. They are housed in a 2 unit rack panel and are supplied with an engraving strip to label the speaker zones. Suitable for 100V line commercial PA systems only.

Features
Standard 2 unit (88mm) 19" rack mount dimensions
Five Zone outputs
Accepts 1 to 5 inputs
Each zone has 10 positions plus off
500W total load capacity (100W per zone)

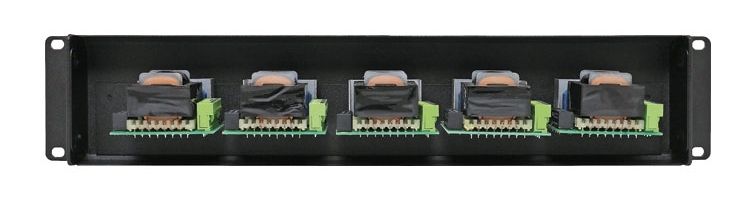

Easy to terminate screw terminals
Unit is supplied with an engraving strip which can be fitted with double sided tape (supplied)
Includes 24V DC override relay for bypassing volume controller settings.

Specifications
Power rating: 500W Total (100W per zone)
Relay override voltage: 24VDC
Attenuation: 0, 3, 6, 9, 12, 15, 18, 21, 27, 33 dB
Dimensions: ˜ 484W x 50D x 88Hmm
Colour: Black
Weight: 4Kg
*Specifications are subject to change without notice.

10 Years
