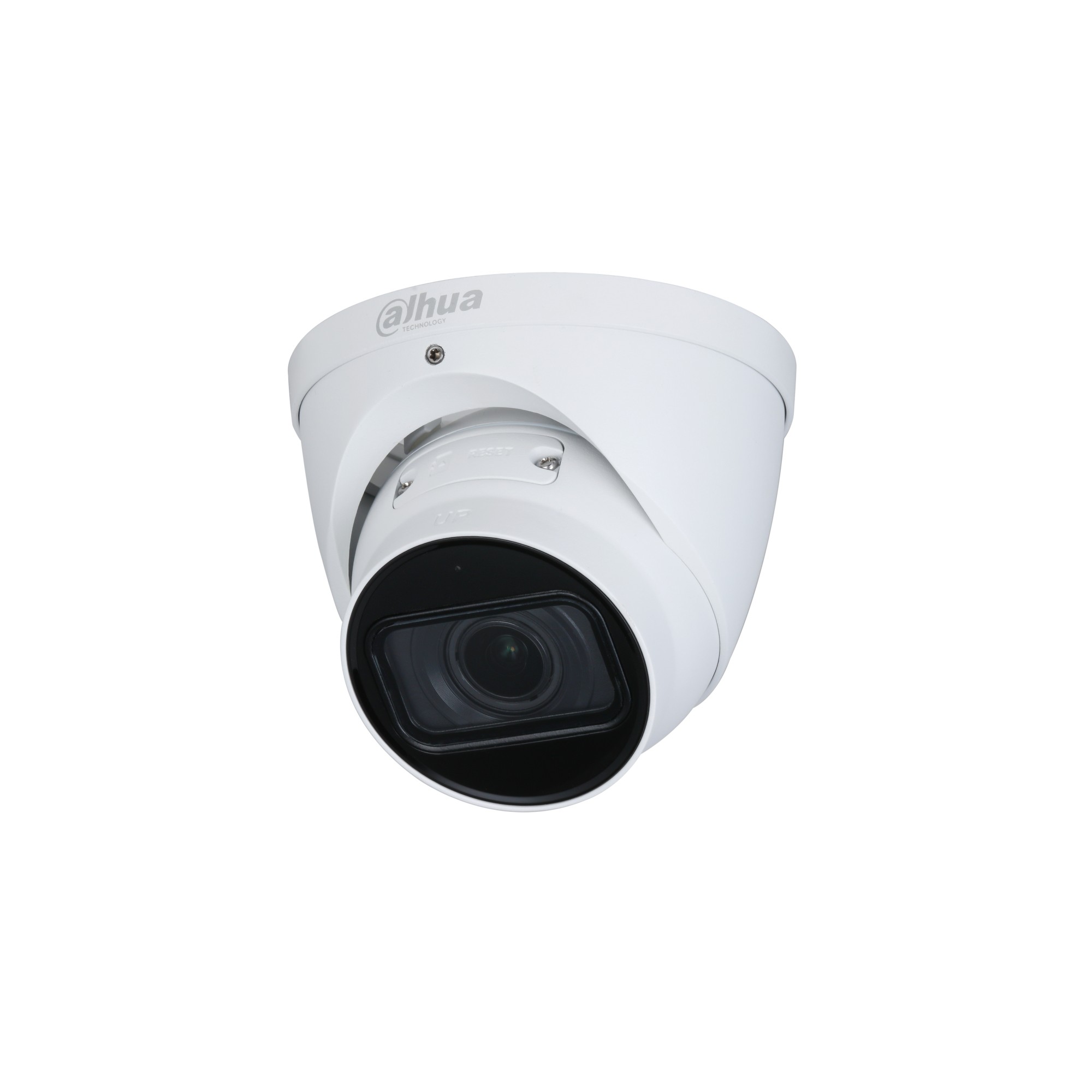

Dahua Technology WizSense DH-IPC-HDW3841TP-ZAS security camera Dome IP security camera Outdoor 3840 x 2160 pixels Ceiling/Wall/Pole
Dahua Technology WizSense DH-IPC-HDW3841TP-ZAS security camera Dome IP security camera Outdoor 3840 x 2160 pixels Ceiling/Wall/Pole
| Manufacturer: |
Dahua Technology |
| Category: |
Home |
| Sub-Category: |
Security Cameras |
| SKU: |
DH-IPC-HDW3841TP-ZAS |
| EAN: |
|
Description
Series Overview
With advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion) are largely reduced.
Starlight
Dahua Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee the good image effect.
Cyber Security
Dahua network camera is equipped with a series of key security technologies, such as security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, which improve its security defense and data protection, and prevent malicious programs from invading the device.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Specifications
| Performance |
|---|
| Type | IP security camera | | Connectivity technology | Wired | | Placement supported | Outdoor | | Wide Dynamic Range (WDR) | Yes | | Certification | CE-LVD: EN62368-1, CE-EMC: Electromagnetic Compatibility Directive, FCC: 47 CFR FCC Part 15, Subpart B, UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 | | Design |
|---|
| Form factor | Dome | | Product colour | White | | Mounting type | Ceiling/Wall/Pole | | International Protection (IP) code | IP67 | | Housing material | Metal | | Camera |
|---|
| Adjustment shutter speed | Auto/Manual | | Minimum illumination | 0.0007 lx | | Tilt angle range | 0 - 78° | | Pan range | 0 - 360° | | White balance | Auto, Lamp, Manual, Natural, Outdoor | | Angle of rotation | 360° | | Camera shutter speed | 1/3 - 1/100000 s | | Progressive scan | Yes | | Image sensor |
|---|
| Sensor type | CMOS | | Progressive scan | Yes | | Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") | | Number of sensors | 1 | | Lens system |
|---|
| Number of lenses | 1 | | Maximum aperture number | 1.5 | | Closest focusing distance | 0.8 m | | Focal length range | 2.7 - 13.5 mm | | Night vision |
|---|
| Night vision | Yes | | Night vision distance | 50 m | | LED type | IR | | Number of illumination LEDs | 2 | | Video |
|---|
| Noise reduction | Yes | | Privacy masking | Yes | | Gain control type | Auto/Manual | | Region of Interest (ROI) encoding | Yes | | Highlight Compensation (HLC) | Yes | | Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) | | Bit rate | 3 kbps–8192 kbps, H.265: 3 kbps–8192 kbps | | Back Light Compensation (BLC) | Yes | | Noise reduction technology | 3D noise reduction | | Maximum resolution | 3840 x 2160 pixels | | Supported graphics resolutions | 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2592 x 1944, 2688 x 1520, 3072 x 1728, 3072 x 2048, 3840 x 2160 | | Analog signal format system | PAL | | Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG | | Frame rate | 30 fps | | Total megapixels | 8 MP | | Audio |
|---|
| Signal-to-Noise Ratio (SNR) | 56 dB | | Built-in microphone | Yes | | Audio formats supported | G.711 A-law, G.711 μ-law, G.726 | | Audio detection | Yes | | Network |
|---|
| Ethernet interface type | Fast Ethernet | | Networking standards | IEEE 802.3af | | Number of users | 20 user(s) | | Streaming method | Multicast | | Ethernet LAN | Yes | | Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP | | Storage |
|---|
| ROM capacity | 128 MB | | Card reader integrated | Yes | | Compatible memory cards | MicroSD (TransFlash) | | Maximum memory card size | 256 GB | | Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports | 1 | | Connectivity technology | Wired | | Security |
|---|
| Intelligent Video Surveillance (IVS) system features | Intrusion, Tripwire | | Video motion detection | Yes | | IP address filtering | Yes | | Mirror | Yes | | Digital watermark | Yes | | Management features |
|---|
| Web browser | Yes | | Power |
|---|
| Power source type | DC, PoE | | Power consumption (Power over Ethernet (PoE)) | 7.3 W | | Power consumption (typical) | 2.6 W | | Power consumption (max) | 6 W | | DC output voltage | 12 | | Certificates |
|---|
| Certification | CE-LVD: EN62368-1, CE-EMC: Electromagnetic Compatibility Directive, FCC: 47 CFR FCC Part 15, Subpart B, UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 | | Operational conditions |
|---|
| Operating temperature (T-T) | -30 - 60 °C | | Storage temperature (T-T) | -40 - 60 °C | | System requirements |
|---|
| Mobile operating systems supported | Android, iOS | | Weight & dimensions |
|---|
| Width | 122 mm | | Depth | 122 mm | | Height | 108.3 mm | | Weight | 685 g | | Package weight | 828 g | | Packaging content |
|---|
| Number of cameras | 1 | | Other features |
|---|
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
|
|
|
