Overview

• Sony STARVIS 3MP Outdoor Bullet Camera
• Brickcom WDR EnhancementTechnology
• SmartFocusUpgrade to Focus Rapidly and Remotely
• HDTV Quality (Full HD 3M @ 30fps Streaming)
• i-Mode for Different Environments
• Removable IR-cut Filter /Auto Light Sensor for Day and Night
• IK10 & IP67 Outdoor Enclosure Built-in Fan (-70C ~ 60C) and Heater
• Built-in IR Illuminators, Effective up to 60 Meters
• Two-way Audio
• Built-in Micro SD/SDHC/SDXC Memory Card Slot for Local Storage
• P-Iris
• 1 DI/DO for External Alarm and Sensor Device/ TV out Connector Supported
• PoE(802.3at) / PoE(802.3af)/ DC12V(*)/ AC24V(*)/DC48V(*) Supported
• Smart IR to Get a Better Illuminated Image
• *with PB-03

Overview

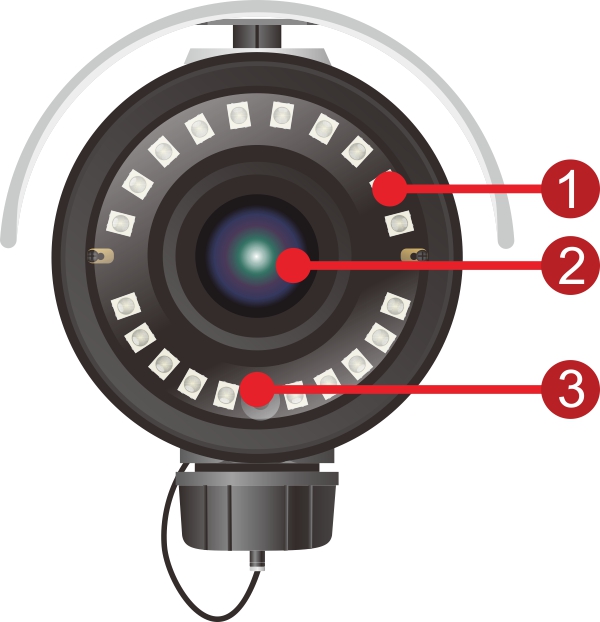

	IR LED(20pcs)
	Lens
	Light Sensor

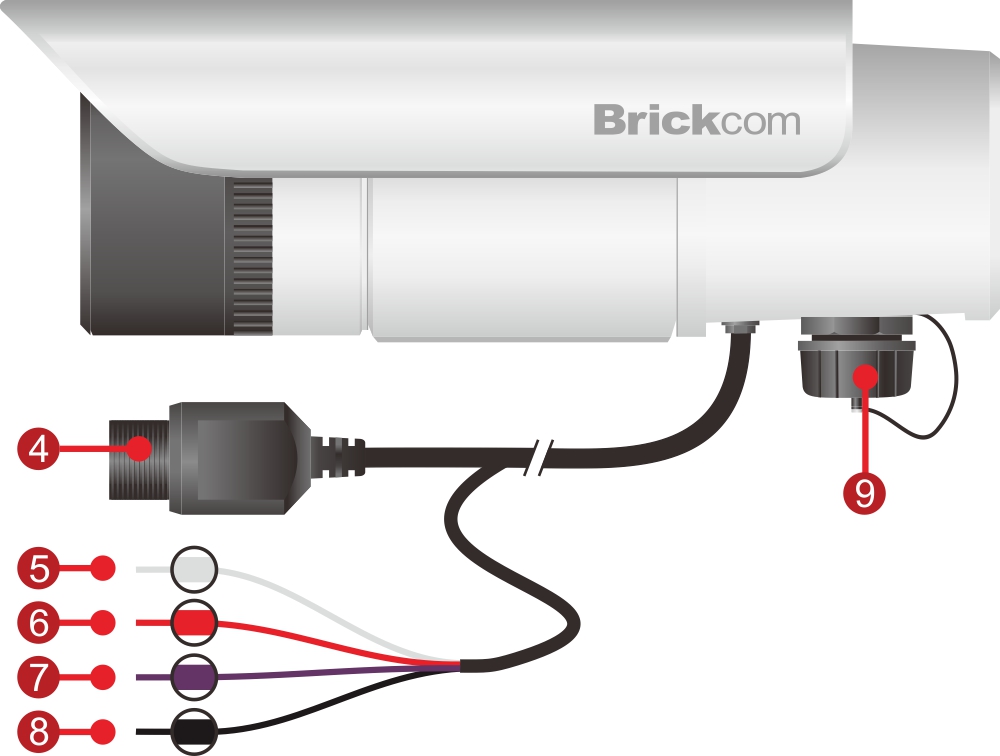

	RJ45 Connector 1 (For Ethernet, 802.3at PoE Plus and 802.3af PoE)
	DC12V
	DC12V
	Gnd
	Gnd
	RJ45 Connector 2 (For Audio in/out, RS485, DI/DO)

Overview

Vibration/ Vandal/ Weather Resistant and designed for Transportation Surveillance

The Brickcom MD-500Ap-A1 is a mini dome network camera designed for outdoor use. MD-500Ap-A1 has a compact and stylish design and provides Full HDTV video (1080p @ 30fps). IP67 certified, IK10 vandal-proof and EN50155 Anti-vibration and shock resistant, the MD-500Ap-A1 is perfect for outdoor surveillance, and surveillance in buses, trains, subway cars and emergency vehicles.

HDTV Video

The MD-500Ap-A1 is designed to provide end-users with high quality video for an easily accessible security system. By offering H.264/ M-JPEG/ MPEG-4 triple codec compression, it is able to offer a flexible system which does not require high bandwidth and storage. The internal micro SD/ SDHC memory card slot allows for local storage, which prevents data loss if the data connection is lost. The MD-500Ap-A1 comes with a wide-angle lens, and pan (35 degree )/ tilt (0-90 degree )/ rotation (180 degree ) wide angle adjustment, allowing a wide open view for maximum coverage.

Different from other dome cameras, MD-500Ap-A1 supports exchangeable lenses for different conditions.

Easy Installation Design

The MD-500Ap-A1 is designed for easy installation. With the TV-Out connector, the camera can be connected to a monitor which makes it easier for installers to adjust the picture focus while setting up the camera. The MD-500Ap-A1 is equipped with a specially designed mounting adapter and can be installed on a curved surface. The camera supports different power inputs such as PoE 802.3af and DC12V.

Benefits & Features

• 30 fps @ 1920 x 1080p (Full HDTV) resolution
• 10 fps @ 2592 x 1944 (5 mega) resolution
• H.264/ MPEG-4/ MJPEG triple codec compression
• f=4mm, F1.6 aperture
• TV out/ camera angle adjustment pan 35 degree, tilt 0-90 degree, rotation 180 degree
• Anti-vibration (EN50155)
• Built-in microphone
• Weather-proof (IP67)
• Vandal-proof (IK10)
• Built-in micro SD/ SDHC memory card slot
• PoE 802.3af/ DC12V
• -20 degree C ~ 50 degree C (-4 degree F ~ 122 degree F)

In the box

• (1) Network Camera
• (1) Product CD-ROM
• (2) Screw Bag
• (1) Easy Installation Guide
• (1) Warranty Card (2-Yrs.)
• (1) Allen Key
• (1) Dry Bag / Double-Sided Tape
• (1) Lens Adjustment Tool
• (1) Mounting Adapter
• (1) Alignment Sticker

Specifications

Overview

• Small and Compact 5 Megapixel Mini Dome Camera

• Built-In ImmerVision Enables Panomorph Lens

• 180 Panoramic View or 360 Surrounding View

• Built-in 802.3af Compliant PoE (Power over Ethernet)

• Built-in Micro SD Card Slot

• Weather-Proof (IP67) and Vandal-Proof (IK10)

• EN50155 Certified for Transportation Application

• Built-in Microphone

• M12 Ethernet Connector (*)

Overview

(*) These are optional features. Please refer to the Buying Guide for the full list of optional features available for this product.

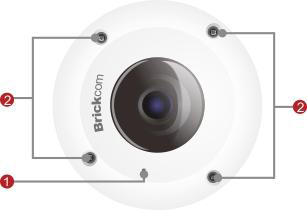

	Microphone
	Security Screws
	Screw Holes
	NTSC/PAL Switch
	TV Out Connector
	LED Indicators
	Reset Button
	Micro SD/SDHC Card Slot
	Ethernet RJ-45 Connector
	Ethernet M12 Connector(*)
	DC12V Connector
