Overview

• 4MP video quality / 100ft 30m clear night vision / Cable threaded through stand for additional security / Weather proof IP66 casing / 60ft 18m CAT5E Ethernet cable / Easily connects to your HD NVR
• Durable & Powerful 4MP. Waterproof casing and hidden enclosed cabling to survive the harshest conditions!
• See every detail in rich, super HD

Description

• State-of-the-art dome security camera with digital imaging technology for 9 x the picture sharpness of traditional security systems including analog D1
• Super high definition camera able to generate amazing 3 Megapixels video images, a massive 50% superior to 1080p
• Camera features a built-in microphone so you can see & hear whats happening^
• See everything during the day & night with the latest infrared cut filter for amazing night vision to 100ft/30m
• Built to suit any conditions with weather resistant rating of IP66 for indoor & outdoor use
• Includes Cat 5E Ethernet cable & everything needed for HD security made easy
• This camera can only be used in combination with Swanns Full HD Network Video Recorders including NVR-7300 series for cutting-edge IP surveillance in super HD
• Professional surveillance dome camera gives you the peace of mind from being able to see the detail you need including license plates, faces, clothing colors & more, all in super HD

Specifications

Overview

• 4MP video quality / 100ft 30m excellent night vision / Cable threaded through stand for additional security / Weather proof IP66 casing / 60ft 18m CAT5E Ethernet cable / Easily connects to your HD NVR.
• Durable & Powerful 4MP. Waterproof casing and hidden enclosed cabling to survive the harshest conditions!
• See every detail in rich, super HD

Description

• State-of-the-art security camera with outstanding 4 Megapixels Super HD video image clarity from 75% more pixels than 1080p & enhanced digital zoom providing close-up detail that has to be seen to be believed
• Camera features a built-in microphone so you can see & hear whats happening^
• See everything during the day & night with wide 75 viewing angle & the latest infrared cut filter for amazing night vision to 100ft/30m
• Built to suit any conditions with weather resistant rating of IP66 for indoor & outdoor use
• Includes Cat 5E Ethernet cable & everything needed for HD security made easy
• This camera can only be used in combination with Swanns Super HD Network Video Recorders including NVR4-7400, NVR8-7400 & NVR16-7400 for cutting-edge IP surveillance
• Professional surveillance camera gives you the peace of mind from being able to see the detail you need including license plates, faces, clothing colors & more, all in stunning 4 Megapixels

Specifications

 Diagram

What's Included

• NHD-818 Camera

• Ethernet Cable 60ft / 18m

• Mounting Screws & Plugs

• Operating Instructions

• Theft Deterrent Stickers

Overview

• 3 Megapixel High Resolution Outdoor Vandal Dome Camera
• FocusEasy to Ease the Focus Adjustment via the Buzzer for notification
• HDTV Quality (Full HD 1080p @ 30fps Streaming)
• MPEG-4, MJPEG and H.264 Triple Codec Compression
• Intelligent Multi-Profile Sensor Management for Different Environments
• Removable IR-cut Filter /Auto Light Sensor for Day and Night
• 1 DI/DO for External Alarm and Sensor Device
• 3 Axis design
• Two-way Audio/Built-in SD/SDHC/SDXC Memory Card Slot for Local Storage
• IK10 Vandal Proof and IP67 Weather Proof Outdoor Enclosure
• Power over Ethernet/DC 12V/AC 24V support
• Smart IR to adjust the IR LED light across the entire area to get a well illuminated image

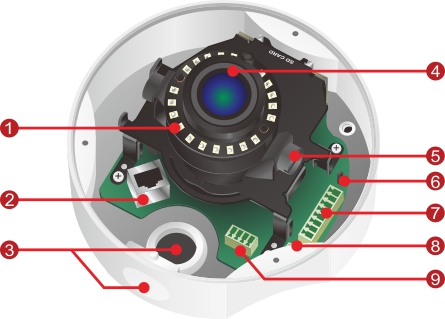

Overview

(*) These are optional features. Please refer to the Buying Guide for the full list of optional features available for this product.

	Fan (*)
	LEDs
	RJ45 Connector (For Ethernet and 802.3at PoE Plus)
	Conduit Plug and Hole
	LENS
	Tilt Screw
	Reset Button/ FocusEasy Button
	Terminal Block (For Audio in/out, DIDO)
	TV Out Connector
	Terminal Block (For DC12V/AC24V)
	Focus Control Bar
	View Angel Control Bar
	SD Card Slot

Features

• 3 Megapixel High Resolution Indoor Fixed Dome Camera
• SmartFocus to Ease the Zoom and Focus Adjustment Remotely
• HDTV Quality (Full HD 1080p @ 25fps Streaming)
• MPEG-4, MJPEG and H.264 Triple Codec Compression
• Intelligent Multi-Profile Sensor Management for Different Environments
• Removable IR-cut Filter /Auto Light Sensor for Day and Night
• 1 DI/DO for External Alarm and Sensor Device
• 3 Axis design
• Two-way Audio/Built-in SD/SDHC/SDXC Memory Card Slot for Local Storage
• Power over Ethernet/DC 12V/AC 24V Support
• Smart IR to adjust the IR LED light across the entire area to get a well illuminated image

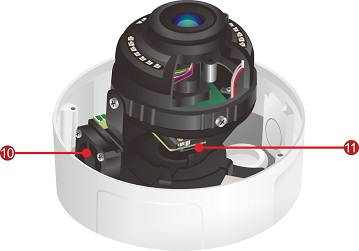

Overview

(*) These are optional features. Please refer to the Buying Guide for the full list of optional features available for this product.

	LEDs
	RJ45 Connector (For Ethernet and 802.3at PoE Plus)
	Conduit Plug and Hole
	Lens
	Tilt Screw
	Reset Button
	Terminal Block (For Audio in/out, DIDO)
	TV Out Connector
	Terminal Block (For DC12V / AC24V)
	SD Card Slot

Features

• N-Series Sony Exmor TM 3M Vandal Dome Camera
• FocusEasy to Ease the Focus Adjustment via the Buzzer for notification
• Support HDTV Video Quality (Full HD 1080p @ 30fps Streaming)
• Brickcom WDR Enhancement technology inside
• MPEG-4, MJPEG and H.264 Triple Codec Compression
• Intelligent Multi-Profile Sensor Management for Different Environments
• Removable IR-cut Filter /Auto Light Sensor for Day and Night
• 1 DI/DO for External Alarm and Sensor Device
• 3 Axis design
• Two-way Audio/Built-in SD/SDHC Memory Card Slot for Local Storage
• IK10 Vandal Proof and IP67 Weather Proof Outdoor Enclosure
• Power over Ethernet/DC 12V/AC 24V support
• Smart IR to adjust the IR LED light across the entire area to get a well illuminated image

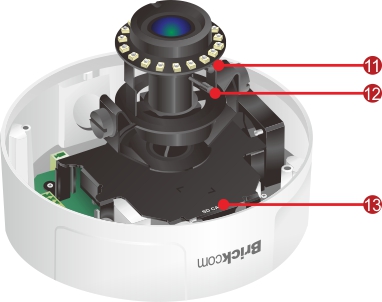

(*) These are optional features. Please refer to the Buying Guide for the full list of optional features available for this product.

	Fan (*)
	LEDs
	RJ45 Connector (For Ethernet and 802.3at PoE Plus)
	Conduit Plug and Hole
	LENS
	Tilt Screw
	Reset Button/ FocusEasy Button
	Terminal Block (For Audio in/out, DIDO)
	TV Out Connector
	Terminal Block (For DC12V/AC24V)
	Focus Control Bar
	View Angel Control Bar
	SD Card Slot

Features

• Sony STARVIS 3MP Vandal Dome Camera
• SmartFocus Upgrade to Focus Rapidly and Remotely
• HDTV Video Quality (Full HD 3M @ 30fps)
• Brickcom WDR Enhancement Technology
• H.264, MJPEG and MPEG-4 Triple Codec Compression
• i-Mode for Different Environments
• Removable IR-cut Filter / Auto Light Sensor for Day and Night
• 1 DI/DO for External Alarm and Sensor Device
• TV-out Supported
• Two-way Audio
• P-Iris
• Built-in Micro SD / SDHC / SDXC Memory Card Slot for Local Storage
• IK10 Vandal-Proof and IP67 Weather-Proof Outdoor Enclosure
• Power over Ethernet/DC 12V/AC 24V Support
• Smart IR to Get a Better Illuminated Image

Overview

(*) These are optional features. Please refer to the Buying Guide for the full list of optional features available for this product.

	RJ45 Connector 1 (For Ethernet, 802.3at PoE and 802.3af PoE)
	Tilt Screw
	Conduit Plug and Hole
	IR LED
	LENS
	Reset Button
	Terminal Block (For Audio in/out, DIDO)
	TV Out Connector
	Terminal Block (ForDC12V/AC24V)
	Fan
	Micro SD/SDHC/SDXC Card Slot

Features

• Megapixel High Resolution Indoor Fixed Dome Camera
• HDTV Quality (Full HD 1080p @ 25fps Streaming)
• Cost Effective/ Full Features Camera
• Easy Installation Dome Type Camera, Suitable for Project
• Build In IR Leds, effective up to 10 m
• MPEG-4, MJPEG and H.264 Triple Codec Compression
• Intelligent Multi-Profile Sensor Management for Different Environments
• Removable IR-cut Filter / Auto Light Sensor for Day and Night
• 1 DI/DO for External Alarm and Sensor Device
• Two-way Audio
• Power over Ethernet / DC 12V Power Input

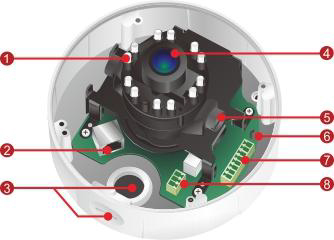

Overview

(*) These are optional features. Please refer to the Buying Guide for the full list of optional features available for this product.

	LEDs
	RJ45 Connector (for Ethernet and PoE)
	Conduit Plug and Hole
	Fixed Lens
	Tilt Screw
	Reset Button
	Terminal Block (for Audio in/out, DIDO)
	Terminal Block (for Power DC12V 1A)

Features

• 3 Megapixel High Resolution Indoor Fixed Dome Camera
• FocusEasy to Ease the Focus Adjustment via the Buzzer for notification
• HDTV Quality (Full HD 1080p @ 25fps Streaming)
• MPEG-4, MJPEG and H.264 Triple Codec Compression
• Intelligent Multi-Profile Sensor Management for Different Environments
• Removable IR-cut Filter /Auto Light Sensor for Day and Night
• 1 DI/DO for External Alarm and Sensor Device
• 3 Axis design
• Two-way Audio/Built-in SD/SDHC/SDXC Memory Card Slot for Local Storage
• Power over Ethernet/DC 12V/AC 24V Support
• Smart IR to adjust the IR LED light across the entire area to get a well illuminated image

Overview

(*) These are optional features. Please refer to the Buying Guide for the full list of optional features available for this product.

	LEDs
	RJ45 Connector (For Ethernet and 802.3at PoE Plus)
	Conduit Plug and Hole
	Lens
	Tilt Screw
	Reset Button/ FocusEasy Button
	Terminal Block (For Audio in/out, DIDO)
	TV Out Connector
	Terminal Block (For DC12V / AC24V)
	Focus Control Bar
	View Angel Control Bar
	SD Card Slot

Features

• Most Intelligent, Compact and Affordable 3M Outdoor Bullet Camera
• Cost Effective/ High Resolution/ Full Features Camera
• HDTV Quality (Full HD 1080p @ 30fps Streaming)
• Intelligent Multi-Profile Sensor Management for DifferentEnvironments
• Removable IR-cut Filter /Auto Light Sensor for Day and Night
• Unique Design for Low Lux Application (1/2.5 Sensor)
• Built-in Micro SD/SDHC Memory Card Slot for Local Storage
• IP66 Outdoor Enclosure
• 1 DI/DO for External Alarm and Sensor Device
• Power over Ethernet

Overview

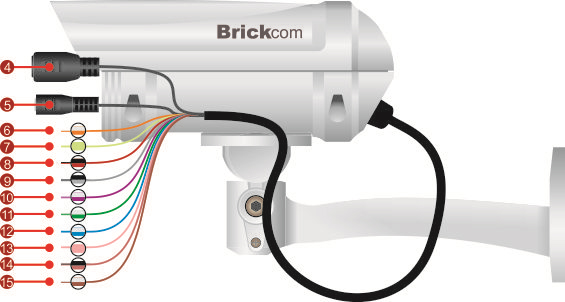

(*) These are optional features. Please refer to the Buying Guide for the full list of optional features available for this product.

	IR LED
	Lens
	Light Sensor
	RJ45 Connector 1 (For Ethernet and PoE 802.3af)
	Power Connector (DC12V)
	Ground
	Power+5V
	Digital Input
	Digital Output
	RS485+
	RS485-
	Line In
	Line InGround
	Line Out
	Line Out Ground

Overview

HDTV Grade Superior Video Quality

The Brickcom OB-302Ap provides a 3 megapixel resolution and full frame rate FULL HDTV video at 1080p@30fps. The OB-302Ap supports H.264, Motion JPEG and MPEG-4 in multiple streams to meet different quality needs. Moreover, equipped with removable IR-cut Filter, Auto Light Sensor and IR Illuminators (effective up to 15 meters) the OB-302Ap provides reliable day and night video surveillance. With the megapixel sensor, the OB-302Ap provides clear, sharp video and color fidelity.

Smart Design and Intelligent Surveillance Software Features

The OB-302Ap is designed with powerful software features to maximize the camera's capabilities and adapt to variable environments to provide the optimal video quality. The Brickcom Intelligent Multi-Profile Sensor Management(tm) supports 5 profiles, allowing users to configure multiple image parameters, such as brightness, contrast, and exposure. This will enable to camera to capture better video surveillance in changing lighting environments. The profiles can be configured to switch automatically according to the user-defined schedule. Up to 3 pre-set profiles (Day, Night, and Sunset) and 2 user-defined profiles are provided for the camera for unprecedented flexibility.

Easy and Flexible Installation

The OB-302Ap offers a wide variety of data transmission options to meet different needs. The OB-302Ap supports DC12V power supply and PoE (Power over Ethernet) which allows the cameras to transmit data and receive power through the same cable, user and choose suitable option to meet different inquiry of cabling. The OB-302Ap also can support WiFi and 3G wireless connectivity. The OB-302Ap can create a secure wireless solution that can be easily installed in locations where Ethernet cabling is too difficult or expensive.

Stand-Alone Surveillance System & DI/DO

With the SDHC/Micro-SD card inserted, the Brickcom OB-302Ap can record the video locally, and the user can either play back the video clips right on the camera's web UI or download them for viewing at a later time. With live view, recording and playback functions incorporated into the camera. The Brickcom OB-302Ap is a complete stand-alone surveillance system. Also the DI/DO terminal allows users to connect the OB-302Ap to an external alarm and sensor devices for added security protection.

IP67 Weather Proof Enclosure - Suitable for Extreme Weather

For protection against the elements the OB-302Ap Outdoor Bullet cameras are furnished with an IP67-rated, weather-proof housing to withstand rain and dust. The OB-302Ap also equipped with built-in fan and heater, allow the cameras to operate perfectly in a harsh temperature range of -40 degree C to +60 degree C (-40 degree F to +140 degree F). These features enhance the OB-302Ap performance and reliability in extremely cold and warm weather.

Features

• 30fps@1080p HDTV
• 20fps@2048 x 1536(3 Mega)
• H.264/MPEG4/MJPG Codec
• f = 3.3-10.5mm lens,F = 1..4 aperture
• Mechanical ICR (true day/night)
• IR-LED night vision (~ 15 M)
• IP67 weather-proof
• Vari-Focal Lens
• Built-in fan & heater
• Micro SD/SDHC slot
• 2-way audio
• 1 DI/DO
• Auto Iris
• PoE

In The Box

Features

• Most Intelligent and Professional 3M Outdoor Bullet Camera
• HDTV Quality (Full HD 1080p @ 30fps Streaming)
• Intelligent Multi-Profile Sensor Management for Different Environments
• Removable IR-cut Filter /Auto Light Sensor for Day and Night
• IP67 Outdoor Enclosure Built-in Fan (-40C ~ 60C) and Heater
• SmartFocus to Ease the Zoom and Focus Adjustment Remotely (*)
• Built-in IR Illuminators, effective up to 25 Meters(*)
• Two-way Audio/Built-in Micro SD/SDHC/SDXC Memory Card Slot for Local Storage
• 1 DI/DO for External Alarm and Sensor Device
• PoE(802.3at) / PoE(802.3af)/ DC12V (*)/ AC24V (*) Supported
• Smart IR to adjust the IR LED light across the entire area to get a well illuminated image (*)
  (*)- V5 only

Overview

(*) These are optional features. Please refer to the Buying Guide for the full list of optional features available for this product.

	IR LED
	LENS
	Light Sensor
	RJ45 Connector 1 (For Ethernet, 802.3at PoE Plus and 802.3af PoE)
	DC12V/ AC24V Connector (*)
	RJ45 Connector 2 (For Audio in/out, RS485, DI/DO)
	(*) V5 only

Overview

Brickcom Corporation, a leading manufacturer of IP surveillance equipment and wireless surveillance solutions, announces that the Brickcom OB-300Np&OB-302Np Bullet series which provide ideal Day& Night Outdoor Surveillance Solution.

• N-Series Sony Exmor 3M Outdoor Bullet Camera
• Brickcom WDR Enhancement Technology inside
• FocusEasy to Ease the Focus Adjustment via the Buzzer for notification (*)
• HDTV Quality (Full HD 1080p @ 30fps Streaming)
• Intelligent Multi-Profile Sensor Management for Different Environments
• Removable IR-cut Filter /Auto Light Sensor for Day and Night
• IP67 Outdoor Enclosure Built-in Fan (-40C ~ 60C) and Heater
• Built-in IR Illuminators, effective up to 25 Meters
• Two-way Audio/Built-in Micro SD/SDHC Memory Card Slot for Local Storage
• 1 DI/DO for External Alarm and Sensor Device/ TV out Connector Supported
• PoE(802.3at) / PoE(802.3af)/ DC12V (*)/ AC24V (*) Supported
• Smart IR to adjust the IR LED light across the entire area to get a well illuminated image(*)
  (*V5 only)

Overview

(*) These are optional features. Please refer to the Buying Guide for the full list of optional features available for this product.

	IR LED
	LENS
	Light Sensor
	RJ45 Connector 1 (For Ethernet, 802.3at PoE Plus and 802.3af PoE)
	DC12V/ AC24V Connector (*)
	RJ45 Connector 2 (For Audio in/out, RS485, DI/DO)
	(*) V5 only
