04/08
|
IVSEC NC309A Dome IP Camera - 1 Megapixel @ 25FPS, 1/2.8" Sony, 2.8mm Lens, PoE, IP65, Vandal Resistant, IR - White NC309A IP Cameras
Overview
Product description
The NC309A security camera uses a 2.8mm fixed lens, records at 25fps at 1280x720 resolution, and has a Sony sensor.
Its infrared illumination enables recording in darkness or poor lighting situations up to a range of 15 metres.
Reduce installation labour and parts required by using one cable for both data and electricity with Power over Ethernet.
It has a vandal and water resistant dome which means this surveillance camera can also be used both indoors and out.
The NC309A is a sound option for an entry level IP surveillance camera.
Main features:Dome IP Camera, 1MP @ 25fps, Sony sensor, 2.8 mm lens, PoE, Vandal Resistant, IP65, IR, 3 year warranty.
Specifications
Additional Information
| Camera Type |
Dome |
| Outdoor Use |
Outdoor Use |
| Vandal Resistant |
Yes |
| Image Sensor |
1/2.8" Sony 1MP |
| Maximum Video Resolution |
1280x720 |
| Maximum Video Resolution (Megapixels) |
1 |
| Frame Rate Resolution |
25 |
| Lens |
2.8 mm |
| Lens Type |
Fixed |
| Minimum Illumination |
0 Lux (IR ON) |
| Day/Night Mode |
Auto |
| Maximum Night IR Distance (M) |
15 |
| Protocols |
TCP/IP, UDP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPnP, SMTP |
| Intelligent Video |
Motion Detection, Video Loss, Network Anomaly, Tampering Detection, Storage Exception |
| Software |
Device Tool Manager, Video Monitoring Software, Mobile App. |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Connectors |
RJ-45, DC Power Input |
| UPNP |
Yes |
| In The Box |
Power Adapter, Power Cable, CD-ROM (User Manual, Free Bundle Software) |
| Model |
NC309A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 55C (-14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
93x83.3 mm |
| Weight |
0.550000 |
|
|
|
|
04/08
|
IVSEC HC718A Bullet HC718A HD Analogue Cameras - 2MP @ 30fps, 1/2.8" SONY Exmor, 2.8-12mm, IP66, IR, ICR, Low Lux, Vari-Focal - White HC718A HD Analogue Cameras
Product description

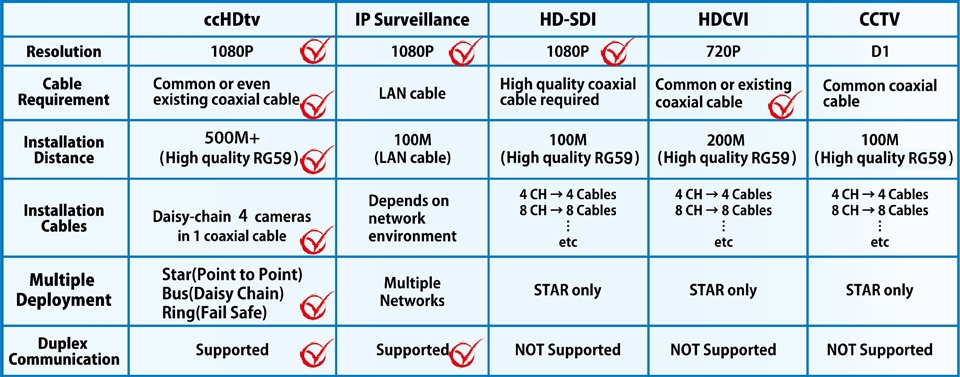

The HC718A is part of the high-definition analogue security cameras. It achieves a substantial 1080p (1920x1080) resolution with a Sony Exmor image sensor, and has a 2.8-12mm varifocal lens. With resolution of 1080p this security camera has approximately 200% larger recording area than 720p, 400% more than 960H, and 600% more than the standard D1 analogue cameras.
The coax cabling can run from camera to camera, rather than in each of the CCTV cameras running directly to the HD DVR. This substantially reduces the costs of expensive cabling, and the labour to run and connect it.
The HC718A surveillance cameras can connect in a variety of different network topologies for additional data transmission redundancy. As an advantage of effective use of topologies, in a fail-safe ring or mesh configuration, if one cable fails all other cameras will continue to operate normally.
The HC718A employs Infrared Cut Filter Removal (ICR) to give distanced footage at night up to a maximum of 40 metres.
These white, visually appealing bullet-style CCTV security cameras are designed for use in outdoor settings, with existing coaxial cable infrastructure.
Main features: Bullet ccHDtv Camera, 2MP @30fps, Sony sensor, 2.8-12mm, IP66, IR, ICR, Low lux, 2 year warranty.
Specifications
Additional Information
| Camera Type |
Bullet |
| Outdoor Use |
Outdoor Use |
| Image Sensor |
1/2.8 SONY Exmor |
| Maximum Video Resolution |
1920x1080 |
| Maximum Video Resolution (Megapixels) |
2 |
| Frame Rate Resolution |
30 |
| Lens |
2.8-12 mm |
| Lens Type |
Vari-Focal |
| Minimum Illumination |
0.01 Low Lux |
| Day/Night Mode |
ICR |
| Maximum Night IR Distance (M) |
40 |
| Image Enhancement |
Brightness, Contrast, Saturation, Sharpness, Hue, Image Adjustment, Back Light Compensation (BLC), Anti-Flicker, De-Noise, Defog |
| Power Supply |
DC12V |
| Connectors |
DC Power Input, BNC |
| Model |
HC718A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 50C (14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
270x148 mm |
| Weight |
1.200000 |
|
|
|
|
04/08
|
IVSEC NC532B Box IP Camera - 2 Megapixel, 25 FPS, 1/2.8" SONY 2MP, PoE, IP66, Low Lux, 0.05 Lux, Low Light Solution, MicroSD/SDHC Card Support, 32G - White/Black NC532B IP Cameras
Product description
A box type security camera, the NC532B is versatile with interchangeable lens options.
With its low lux level of 0.05, colour is recorded substantially longer as light levels diminish before automatically switching to night mode.
This IP camera comes with an analogue video output which can be used with TV monitors, which is an excellent criminal deterrent.
There is a MicroSD card slot to record directly to the camera.
The NC532B is a CCTV camera and has simple installation software and Power over Ethernet (PoE) for reduced installation time, and setup costs.
With its choice of housing options, the P1BX-N surveillance camera can be used internally or externally.
Main features:Box IP Camera, 2MP @ 25fps, SONY sensor, PoE, Low lux, 3 year warranty.
Specifications
Additional Information
| Camera Type |
Box |
| Outdoor Use |
Indoor Use |
| Image Sensor |
1/2.8" SONY 2MP |
| Maximum Video Resolution |
1920x1080 |
| Maximum Video Resolution (Megapixels) |
2 |
| Frame Rate Resolution |
25 |
| Minimum Illumination |
0.05 Lux, Low Light Solution |
| Day/Night Mode |
Auto |
| Edge Recording |
microSD/SDHC Card Support, 32G |
| Audio Compression |
G.711A |
| Audio Streaming |
Yes |
| Protocols |
TCP/IP, UDP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP |
| Intelligent Video |
Motion Detection, Video Loss, Tampering Detection, Storage Exception |
| Software |
Device Manager Tool, Video Monitor Software, Mobile App. |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Connectors |
RJ-45 , 2-pin Terminal Block for DC Power Input, Analog Video Output, Audio Line In/Out, Alarm In/Out, RS-485, microSD Card Slot, USB, Reset |
| UPNP |
Yes |
| In The Box |
Power Adapter, Power Cable, CD Rom (User Manual, Free Bundle Software) |
| Comments |
With housing this can be used outdoors |
| Model |
NC532B |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 55C (-14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
147x80.67 mm |
| Weight |
1.100000 |
|
|
|
|
04/08
|
IVSEC NC514A Mini Dome IP Camera - 2 Megapixel, 25FPS, 1/2.8" Sony, Vandal Resistant, 2.8mm Lens, PoE, IP65, Vandal Resistant, 0.05 Lux, Low Light Solution - White NC514A IP Cameras
Overview
Product description
The NC514A security camera uses a 2.8mm fixed lens, records at 25fps at 1080p (1920x1080) resolution, and has a Sony sensor.
Automatic day and night mode and a very low lux level of 0.05, means colour is recorded for longer as light levels diminish before the camera switches to night mode.
Together with its sleek low profile and mini-dome design, these CCTV cameras are an excellent indoor and general use surveillance camera, with smooth footage and clarity. Its vandal and water resistance means this surveillance camera can also be used externally.
The NC514A IP cameras Power over Ethernet (PoE), and simple to use software can reduce installation costs for cabling and labour.
Main features: Mini Dome IP Camera, 2MP @ 25fps, Sony sensor, 2.8 mm lens, PoE, Vandal Resistant, IP65, 3 year warranty.
Additional Information
| Camera Type |
Mini Dome |
| Outdoor Use |
Outdoor Use |
| Vandal Resistant |
Yes |
| Image Sensor |
1/2.8" Sony 2MP |
| Maximum Video Resolution |
1920x1080 |
| Maximum Video Resolution (Megapixels) |
2 |
| Frame Rate Resolution |
25 |
| Lens |
2.8 mm |
| Lens Type |
Fixed |
| Minimum Illumination |
0.05 Lux, Low Light Solution |
| Day/Night Mode |
Auto |
| Audio Compression |
G.711A |
| Audio Streaming |
Yes |
| Protocols |
TCP/IP, UDP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPnP, SMTP |
| Intelligent Video |
Motion Detection, Video Loss, Network Anomaly, Tampering Detection, Storage Exception |
| Software |
Device Manager Tool,Video Monitor Software, Mobile App. |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Connectors |
RJ-45, DC Power Input, Analogue Video Output |
| UPNP |
Yes |
| In The Box |
Power Adapter, Power Cable, CD-Rom (User Manual, Free Bundle Software) |
| Model |
NC514A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 55C (-14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
110x59 mm |
| Weight |
0.500000 |
|
|
|
|
04/08
|
IVSEC HC787A CCHDTV Camera - 2 Megapixel, 1/2.7" Image Sensor, 30FPS, Low Lux - White HC787A HD Analogue Cameras
Product description

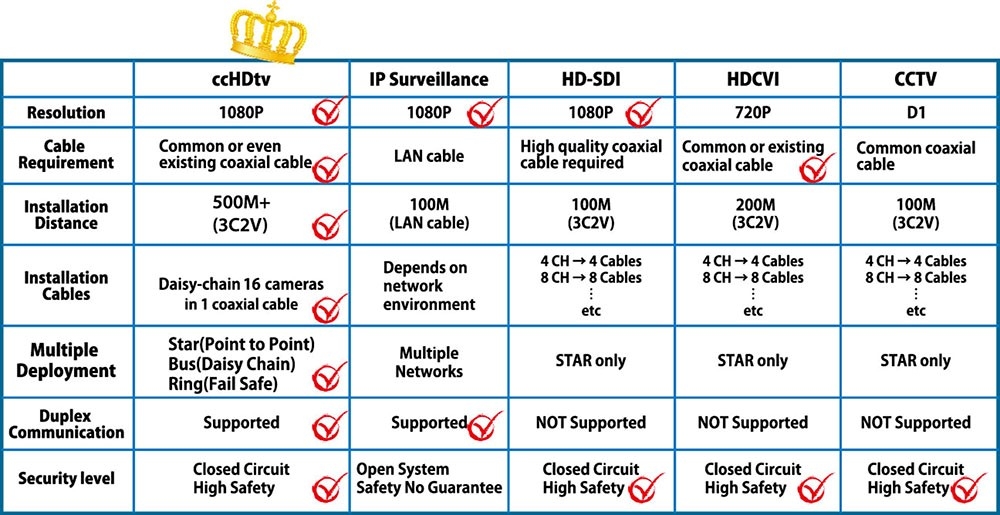

The HC787A is part of our range of high-definition analogue security cameras. It achieves a substantial 1080p (1920x1080) resolution., and has an interchangeable lenses (not included) using CS-Mount. 1080p has approximately 200% larger recording area than 720p, 400% more than 960H, and 600% more than standard D1 analogue cameras.
The cabling can run from camera to camera, rather than each of the CCTV cameras running directly to the HD DVR. This substantially reduces the costs of expensive cabling, and the labour to run and connect it.
The HC787A surveillance cameras can connect in a variety of different network topologies for additional data transmission redundancy. As an advantage of effective use of topologies, in a fail-safe ring or mesh configuration, if one cable fails all other cameras will continue to operate normally.
Customise your image through the following image enhancements available to this security camera: Brightness, Contrast, Color Saturation, Sharpness, White Balance, Backlight Compensation, Exposure Control, Flicker Control, Fine Tuning of Behavior under Low Light Conditions, Noise Filter, Vertical and Horizontal.
Main features: Box ccHDtv Camera, 2MP @30fps, Low lux, 2 year warranty.
Additional Information
| Camera Type |
Box |
| Outdoor Use |
Indoor Use |
| Image Sensor |
1/2.7 2 MP |
| Maximum Video Resolution |
1920x1080 |
| Maximum Video Resolution (Megapixels) |
2 |
| Frame Rate Resolution |
30 |
| Minimum Illumination |
0.03 Lux |
| Image Enhancement |
Brightness, Contrast, Color Saturation, Sharpness, White Balance, Backlight Compensation, Exposure Control, Flicker Control, Fine Tuning of Behavior under Low Light Conditions, Noise Filter, Vertical and Horizontal |
| Power Supply |
DC12V |
| Connectors |
DC Power Input, BNC |
| Model |
HC787A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 50C (14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
61x120 mm |
| Weight |
1.000000 |
|
|
|
|
04/08
|
IVSEC AC118A Analogue CCTV Dome Camera - 1/3" SONY Super HAD II CCD 960H, 2.8-12mm, Vari-Focal, 0.06 Lux, Motion Detection, Privacy Zones - Black AC118A Analogue CCTV Cameras
Product description
From the analogue range of security cameras, the AC118A uses a 2.8-12mm varifocal lens, and has a Sony Super HAD II CCD 960H (976x582) sensor. This CCTV camera has 30% greater resolution (700TVL) than standard analogue cameras.
With automatic day/night recording, this security camera uses infrared, recording up to a maximum of 25 metres without external light sources.
The subtle dark grey housing blends well in environments such as hotels and clubs with dark ceilings. The housing incorporates a rotating ball joint, allowing easy adjustment of the cameras recording position.
Use for internal or external applications, the AC118A surveillance cameras are resistant to water and vandals.
Main features: Dome Analogue, 960H, Sony sensor, 2.8-12 mm lens, IR, 3 year warranty.
Additional Information
| Camera Type |
Dome |
| Outdoor Use |
Outdoor Use |
| Vandal Resistant |
Yes |
| Image Sensor |
1/3" SONY Super HAD II CCD 960H |
| Maximum Video Resolution |
700TVL |
| Lens |
2.8-12 mm |
| Lens Type |
Vari-Focal |
| Minimum Illumination |
0.06 Lux |
| Day/Night Mode |
Auto |
| Maximum Night IR Distance (M) |
25 |
| Image Enhancement |
White Balance (ATW) |
| Intelligent Video |
Motion Detection, Privacy Zones |
| Power Supply |
DC12V |
| Connectors |
DC Power Input, 1.0V p-p, 75 Ohms (BNC) |
| In The Box |
CD-ROM (User Manual, Free Bundle Software) |
| Model |
AC118A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 55C (14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 Months Parts & Labour Warranty |
| Dimensions |
70x95 mm |
| Weight |
0.750000 |
|
|
|
|
04/08
|
IVSEC AC132A Box Analogue CCTV Cameras - 1/3" SONY Super HAD II CCD 960H, 0.03 Low Lux, SWDR up to 128 dB, Low-Lux - White/Black AC132A Analogue CCTV Cameras
Overview
Product description
A box type security camera, the AC132A is versatile with interchangeable lens options.On board is a Sony Super HAD II CCD 960H (976x582) sensor, 750TVL.
The AC132A records at 30% better resolution than standard analogue cameras. With its low lux level of 0.03, colour is recorded substantially longer as light levels diminish before automatically switching to night mode.
Loaded with multiple image enhancement functions for greater picture quality, the AC132A utilises: White Balance (AWB), 3DNR, Image Adjustable (Lightness, Contrast, Sharpness, Hue, Gain), SWDR up to 128dB, BLC/HLC, AGC, Mirror, Lens Shading Compensation, IR Optimisation, Digital Image Stabilisation, Anti-flickerWhite Balance (AWB), 3DNR, Image Adjustable (Lightness, Contrast, Sharpness, Hue, Gain), SWDR up to 128dB, BLC/HLC, AGC, Mirror, Lens Shading Compensation, IR Optimisation, Digital Image Stabilisation and Anti-flicker.
This analogue camera comes with an analogue video output which can be used with TV monitors, which is an excellent criminal deterrent.
Main features: Box Analogue, 960H, Sony sensor, Low-Lux, 3 year warranty. (Lens not included)
Additional Information
| Camera Type |
Box |
| Outdoor Use |
Indoor Use |
| Image Sensor |
1/3" SONY Super HAD II CCD 960H |
| Maximum Video Resolution |
750TVL |
| Frame Rate Resolution |
25 |
| Minimum Illumination |
0.03 Low Lux |
| Day/Night Mode |
Auto |
| Dynamic Range |
SWDR up to 128 dB |
| Image Enhancement |
White Balance (AWB), 3DNR, Image Adjustable (Lightness, Contrast, Sharpness, Hue, Gain), SWDR up to 128dB, BLC/HLC, AGC, Mirror, Lens Shading Compensation, IR Optimisation, Digital Image Stabilisation, Anti-flicker |
| Intelligent Video |
Motion Detection, Privacy Zones |
| Power Supply |
DC12V |
| Connectors |
DC Power Input, 1.0V p-p, 75 Ohms (BNC) |
| In The Box |
CD-ROM (User Manual, Free Bundle Software) |
| Comments |
Sony Effio-V DSP, Can be used outdoors with additional housing |
| Model |
AC132A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 55C (14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
241x121 mm |
| Weight |
0.600000 |
|
|
|
|
04/08
|
IVSEC AC158A Bullet Analogue Camera - 1/3" SONY Super HAD II CCD 960H, Vari-Focal, 2.8-12mm, IP66, WDR Up to 128dB, IR, ICR, Low-Lux - White AC158A Analogue CCTV Cameras
Product description
The peak performer among analogue surveillance cameras, the AC158A has 66 LEDs, and Infrared Cut Filter Removal (ICR) for a night mode maximum of up to 45 metres. It records at 30% better resolution than standard analogue cameras.
On board is a Sony Super HAD II CCD 960H (976x582) sensor, 750TVL, and a 2.8-12mm varifocal lens.
It has a super low lux level of 0.03 which means colour is recorded for substantially longer as light levels diminish, before this security camera switches to infrared (night) mode.
Loaded with multiple image enhancement functions for greater picture quality, the AC158A utilises: White Balance (AWB), 3DNR, Image Adjustable (Lightness, Contrast, Sharpness, Hue, Gain), SWDR up to 128dB, BLC/HLC, AGC, Mirror, Lens Shading Compensation, IR Optimisation, Digital Image Stabilisation, and Anti-flicker.
Due to their Wide Dynamic Range (WDR) up to 128dB, these sleek white bullet style CCTV security cameras are ideal for capturing optimum footage in difficult lighting situations.
Main features:Bullet Analogue, 960H, Sony sensor, 2.8-12mm, IP66, WDR up to 128dB, IR, ICR, Low-Lux, 3 year warranty.
Additional Information
| Camera Type |
Bullet |
| Outdoor Use |
Outdoor Use |
| Image Sensor |
1/3" SONY Super HAD II CCD 960H |
| Maximum Video Resolution |
750TVL |
| Lens |
2.8-12 mm |
| Lens Type |
Vari-Focal |
| Minimum Illumination |
0.03 Low Lux |
| Day/Night Mode |
Built in ICR |
| Maximum Night IR Distance (M) |
45 |
| Dynamic Range |
SWDR up to 128 dB |
| Image Enhancement |
White Balance (AWB), 3DNR, Image Adjustable (Lightness, Contrast, Sharpness, Hue, Gain), SWDR up to 128 dB, BLC/HLC, AGC, Mirror, Lens Shading Compensation, IR Optimisation, Digital Image Stabilisation, Anti-flicker |
| Intelligent Video |
Motion Detection, Privacy Zones |
| Power Supply |
DC12V |
| Connectors |
DC Power Input, 1.0V p-p, 75 Ohms (BNC) |
| In The Box |
CD-ROM (User Manual, Free Bundle Software) |
| Comments |
Sony Effio-V |
| Model |
AC158A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 55C (14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 Months Parts & Labour Warranty |
| Dimensions |
241x121 mm |
| Weight |
1.400000 |
|
|
|
|
04/08
|
IVSEC AC125A Bullet Analogue CCTV Cameras - 1/3" SONY Super HAD II CCD 960H, 2.8-12 mm, Vari-Focal, IP66, IR, Motion Detection, Privacy Zones - Black AC125A Analogue CCTV Cameras
Overview
Product description
The AC125A is an analogue surveillance camera with a Sony Super HAD II CCD 960H (976x582) sensor, 700TVL, and a 2.8-12mm varifocal lens. It has 30% better resolution than standard analogue cameras.
With infrared, these CCTV cameras record in light and dark conditions without external light sources, to a maximum of 25 metres.
This dark grey bullet camera is great for high external installations, for example, service stations and warehouses.
Main features:Bullet Analogue Camera, 960H, Sony Sensor, 2.8-12 mm, IP66, IR, 3 year warranty.
Additional Information
| Camera Type |
Bullet |
| Outdoor Use |
Outdoor Use |
| Image Sensor |
1/3" SONY Super HAD II CCD 960H |
| Maximum Video Resolution |
700TVL |
| Lens |
2.8-12 mm |
| Lens Type |
Vari-Focal |
| Minimum Illumination |
0.06 Lux |
| Day/Night Mode |
Auto |
| Maximum Night IR Distance (M) |
25 |
| Image Enhancement |
White Balance (AWB), 2DNR, Image Adjustable (Lightness, Contrast, Sharpness, Hue, Gain), DWDR, BLC, AGC, Mirror |
| Intelligent Video |
Motion Detection, Privacy Zones |
| Power Supply |
DC12V |
| Connectors |
DC Power Input, 1.0V p-p, 75 Ohms (BNC) |
| In The Box |
CD-ROM (User Manual, Free Bundle Software) |
| Model |
AC125A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 55C (14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 Months Parts & Labour Warranty |
| Dimensions |
269x77.3 mm |
| Weight |
1.100000 |
|
|
|
|
04/08
|
IVSEC NC591A Speed Dome IP Camera - 2 Megapixel, 1/2.9" Sony, 4.3mm-129mm, IP66, IR, Vandal Resistant, 0.05 Lux, Low Light Solution - White NC591A IP Cameras
Overview
Product description
The NC591A IP is a speed dome security camera that has a SONY sensor, and records as 25fps at 1080p (1920x1080) resolution with a mechanical optical lens of 4.7-94 mm. This PTZ camera can be remotely controlled to Pan, tilt and zoom covering a very large area.
In dimly lit to pitch dark areas, continue to capture footage without light sources with the NC591A's outstanding infrared technology. The resolution, varifocal lens and infrared give you vision in darkness to a massive maximum range of 100 metres.
This low noise and double metallic structure has this surveillance camera well protected from water and vandal resistant. The NC591A is an excellent outdoor camera option that can have presets to send the PTZ on a 360 degree patrol with lens angles of 54 degrees in wide angle to a large zoom of 2.93 degrees. This quality speed dome is easy to use and will be sure to exceed expectations.
Main features:Speed Dome IP Camera, 2MP @ 25fps, SONY sensor, 4.7mm-94mm, Vandal Resistant, IP66, IR, 3 year warranty.
Specifications
Additional Information
| Camera Type |
Speed Dome |
| Outdoor Use |
Outdoor Use |
| Vandal Resistant |
Yes |
| Image Sensor |
1/2.9" SONY 2 MP |
| Maximum Video Resolution |
1920x1080 |
| Maximum Video Resolution (Megapixels) |
2 |
| Frame Rate Resolution |
25 |
| Lens |
4.7-94 mm |
| Lens Type |
PTZ |
| Minimum Illumination |
0.05 Lux, Low Light Solution |
| Day/Night Mode |
Auto |
| Maximum Night IR Distance (M) |
100 |
| Edge Recording |
32G |
| Audio Compression |
G.711A |
| Audio Streaming |
Yes |
| Protocols |
TCP/IP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPnP, SMTP |
| Intelligent Video |
Motion Detection, Video Loss |
| Software |
Device Manager Tool, Video Monitor Software, Mobile app |
| Power Supply |
DC12V 5A |
| Connectors |
RJ-45 , 2-pin Terminal Block for DC Power Input, Analog Video Output, Audio Line In/Out, Alarm 2CH in and 1CH out, RS-485 |
| UPNP |
Yes |
| In The Box |
Power Adapter, Power Cable, CD-ROM (User Manual, Free Bundle Software) |
| Model |
NC591A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-30C to 60C (-22F-140F) Humidity: 0%-90% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
415x243 mm |
| Weight |
15.250000 |
|
|
|
|
04/08
|
IVSEC HC784A CCHDTV Analogue Cameras - 2 Megapixel, 1/2.8" Sony Exmor, 2.8-12mm, IP66, IR, ICR, Vari-Focal, Low Lux - White HC784A HD Analogue Cameras
Overview
Product description
The HC784A is part of our range of high-definition analogue security cameras. It achieves a substantial 1080p (1920x1080) resolution with a Sony Exmor image sensor, and has a 2.8-12mm varifocal lens. 1080p has approximately 200% larger recording area than 720p, 400% more than 960H, and 600% more than standard D1 analogue cameras.
The cabling can run from camera to camera, rather than each of the CCTV cameras running directly to the HD DVR. This substantially reduces the costs of expensive cabling, and the labour to run and connect it.
The HC784A surveillance cameras can connect in a variety of different network topologies for additional data transmission redundancy. As an advantage of effective use of topologies, in a fail-safe ring or mesh configuration, if one cable fails all other cameras will continue to operate normally.
The HC784A employs Infrared Cut Filter Removal (ICR) to give you distanced footage at night up to a maximum of 40 metres.
These white, visually appealing dome-style CCTV security cameras are designed for use in outdoor settings, with existing coaxial cable infrastructure.
Main features:Dome ccHDtv Camera, 2MP @30fps, Sony sensor, 2.8-12mm, IP66, IR, ICR, Low lux, 2 year warranty.
Additional Information
| Camera Type |
Dome |
| Outdoor Use |
Outdoor Use |
| Vandal Resistant |
Yes |
| Image Sensor |
1/2.8 SONY Exmor |
| Maximum Video Resolution |
1920x1080 |
| Maximum Video Resolution (Megapixels) |
2 |
| Frame Rate Resolution |
30 |
| Lens |
2.8-12 mm |
| Lens Type |
Vari-Focal |
| Minimum Illumination |
0.01Low Lux |
| Day/Night Mode |
ICR |
| Maximum Night IR Distance (M) |
20 |
| Image Enhancement |
Brightness, contrast, Saturation, sharpness, Hue |
| Power Supply |
DC12V |
| Connectors |
DC Power Input, BNC |
| In The Box |
Wall Bracket |
| Model |
HC784A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 50C (14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
148x122 mm |
| Weight |
2.000000 |
|
|
|
|
04/08
|
IVSEC NC543A Dome IP Camera - 2 Megapixel, 1/2.8" Sony Sensor, 2.8-12mm, Vari-Focal, PoE, IP65, Vandal Resistant, IR, ICR - Grey NC543A IP Cameras
Overview
Product Description
The NC543A is an IP camera that records at 25fps at 1080p (1920x1080) resolution with a 2.8-12mm varifocal lens, and has a Sony sensor.
Record footage in even pitch black conditions with this CCTV cameras infrared illumination, up to a range of 15 metres.
An attractive dome surveillance camera with modern white housing, it comes with multiple brackets and mounting options available for a professional install.
Remotely view footage from your security cameras (live or playback) over the internet via your PC, mobile, or tablet.
Simple installation software and Power over Ethernet (PoE) may reduce the installation cost of your surveillance cameras.
Resistant to water and vandals, this security camera is a good choice for both indoor and outdoor applications.
Main features:Dome IP Camera, 2MP @ 25fps, Sony sensor, 2.8-12 mm lens, PoE, IP65, Vandal resistant, IR, ICR, 3 year warranty.
Additional Information
| Camera Type |
Dome |
| Outdoor Use |
Outdoor Use |
| Vandal Resistant |
Yes |
| Image Sensor |
1/2.8" SONY 2MP |
| Maximum Video Resolution |
1920x1080 |
| Maximum Video Resolution (Megapixels) |
2 |
| Frame Rate Resolution |
25 |
| Lens |
2.8-12 mm |
| Lens Type |
Vari-Focal |
| Minimum Illumination |
0 Lux (IR ON) |
| Day/Night Mode |
Built in ICR |
| Maximum Night IR Distance (M) |
15 |
| Protocols |
TCP/IP, UDP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPnP, SMTP |
| Intelligent Video |
Motion Detection, Video Loss, Network Anomaly, Tampering Detection, Storage Exception |
| Software |
Device Manager Tool, Video Monitor Software, Mobile App. |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Connectors |
RJ-45, DC Power Input, Analog Video Output |
| UPNP |
Yes |
| In The Box |
Power Adapter, Power Cable, CD-ROM (User Manual, Free Bundle Software) |
| Model |
NC543A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 55C (-14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
150x112 mm |
| Weight |
1.200000 |
|
|
|
|
04/08
|
IVSEC NC537A IP Camera - 2 Megapixel, 1/2.8" Sony Image Sensor, 25FPS, 2.8-12mm Lens, PoE, IP65, Vandal Resistant, IR, ICR - Black NC537A IP Cameras
Product description
The IVSEC NC537A security camera uses a 2.8-12 mm varifocal lens, records at 25fps at 1080p (1920x1080) resolution, and has a Sony sensor.
Automatic day and night mode and a very low lux level of 0.05, means colour is recorded for longer as light levels diminish before the camera switches to infrared. Its infrared illumination enables recording in darkness or poor lighting situations, up to a range of 30 metres.
The dark grey housing of this IP camera suits purposes where a standard white camera would be appear obtrusive or unattractive, for example, a club or hotel with dark ceilings.
The NC537As Power over Ethernet (PoE), and simple to use software can reduce IP camera system installation costs on cabling and labour.
These CCTV cameras provide excellent clarity in day and night conditions. Resistant to water and vandals, the versatile NC537A IP camera is ideal for internal or external CCTV surveillance.
Main features:Dome IP Camera, 2MP @ 25fps, Sony sensor, 2.8-12 mm lens, PoE, Vandal Resistant, IP65,IR, ICR, 3 year warranty.
Additional Information
| Camera Type |
Dome |
| Outdoor Use |
Outdoor Use |
| Vandal Resistant |
Yes |
| Image Sensor |
1/2.8" SONY 2MP |
| Maximum Video Resolution |
1920x1080 |
| Maximum Video Resolution (Megapixels) |
2 |
| Frame Rate Resolution |
25 |
| Lens |
2.8-12 mm |
| Lens Type |
Vari-Focal |
| Minimum Illumination |
0.05 Lux, Low Light Solution |
| Day/Night Mode |
Built in ICR |
| Maximum Night IR Distance (M) |
30 |
| Protocols |
TCP/IP, UDP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPnP, SMTP |
| Intelligent Video |
Motion Detection, Video Loss, Network Anomaly, Tampering Detection, Storage Detection |
| Software |
Device Manager Tool, Video Monitor Software, Mobile App. |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC1V |
| Connectors |
RJ-45, DC Power Input, Analogue Video Output |
| UPNP |
Yes |
| In The Box |
Power Adapter, Power Cable, CD-ROM (User Manual, Free Bundle Software) |
| Model |
NC537A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 55C (14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
120x95 mm |
| Weight |
0.900000 |
|
|
|
|
04/08
|
Amdex Wall Plate Insert RCA to F-Type - To Suit HPM Plate - BlackWall Plate Insert RCA to F-Type - To Suit HPM Plate - Black
|
|
|
|
04/08
|
Amdex Wall Plate Insert RCA To RCA - To Suit HPM Plate - YellowWall Plate Insert RCA To RCA - To Suit HPM Plate - Yellow
|
|
|
|
04/08
|
Amdex Wall Plate Insert RCA To RCA - To Suit HPM Plate - WhiteWall Plate Insert RCA to RCA HPM Plate WHITE
|
|
|
|
04/08
|
Amdex Wall Plate Insert RCA To RCA - To Suit HPM Plate - RedWall Plate Insert RCA To RCA - To Suit HPM Plate - Red
|
|
|
|
04/08
|
Amdex Wall Plate Insert RCA To RCA - To Suit HPM Plate - GreenWall Plate Insert RCA To RCA - To Suit HPM Plate - Green
|
|
|
|
04/08
|
Amdex Wall Plate Insert RCA To RCA - To Suit HPM Plate - BlueWall Plate Insert RCA to RCA - To Suit HPM Plate - Blue
|
|
|
|
04/08
|
Amdex Wall Plate Insert RCA To RCA - To Suit HPM Plate - BlackWall Plate Insert RCA To RCA - To Suit HPM Plate - Black
|
|
|
|
Previous Page
|
Next Page
|
|
