Techtronics product archive #42128
| Image |
Date |
Product description |
Price |
Buy |
|
06/05
|
GeoVision GV-EDR1100 IR Mini Fixed Rugged IP Dome - 1.3 Megapixel, Dual Streams from H.264 And MJPEG, Up To 30 FPS @ 1280x1024, Intelligent IR, Day And Night Function, Motion Detection - White "Target Series" GeoVision GV-EDR1100-0F, 1.3MP, H.264 Low Lux, WDR, IR Mini Fixed Rugged IP Dome
- 1/3" progressive scan low lux CMOS
- Dual streams from H.264 and MJPEG
- Up to 30 fps at 1280 x 1024
- Intelligent IR
- Day and night function (with removable IR-cut filter)
- 2-axis mechanism (pan / tilt)
- Wide Dynamic Range (WDR)
- Defog
- Motion detection
- Tampering alarm
- Text overlay
- Privacy mask
- IP address filtering
- DC 12V / PoE
- Megapixel lens
- NAS Recording
- Recording assigned by GV-Edge Recording Manager (Windows, Mac version)
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF (Profile S) conformant
* For optimal performance and compatibility, it is highly recommended to use a GV-NAS System
|
The Target Mini Fixed Rugged Dome is an outdoor, fixed, mini-sized network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera adheres to IK10 and IP67 standards. It is adjustable in 2 axis (pan and tilt) and can be connected through PoE.
|
| |
| Models |
| Model |
Iris |
Focal Length (mm) |
Maximum Aperture |
Image Format |
| GV-EDR1100-0F |
Fixed |
2.8 mm |
F/2.0 |
1/2.7" |
| GV-EDR1100-2F |
Fixed |
3.8 mm |
F/1.8 |
1/2.7" |
|
| |
| Active Tampering Alarm |
| Tampered |
Focus Change |
Camera Shift |
 |
 |
 |
|
|
|
|
|
06/05
|
Medium Duty Heatsink - 218mm x 35mmScrew flutes allow fixing to chassis. Machined mounting surface for devices.
| |
Height: 47.3mm
Thermal Res.: 17 °C/W
Dimensions: 218W x 35L x 47.35H
|
|
|
|
|
06/05
|
Dahua HDBW4100EP/3.6 Dome IP Camera - 1.3 Megapixel, CMOS 25/30FPS, Day/Night Vision Audio, IP66, PoEDAHUA 1.3MP DOME IP CAMERA, CMOS 25/30 FPS, DAY/NIGHT VISIONAUDIO, IP66, POE, 2YR
|
|
|
|
06/05
|

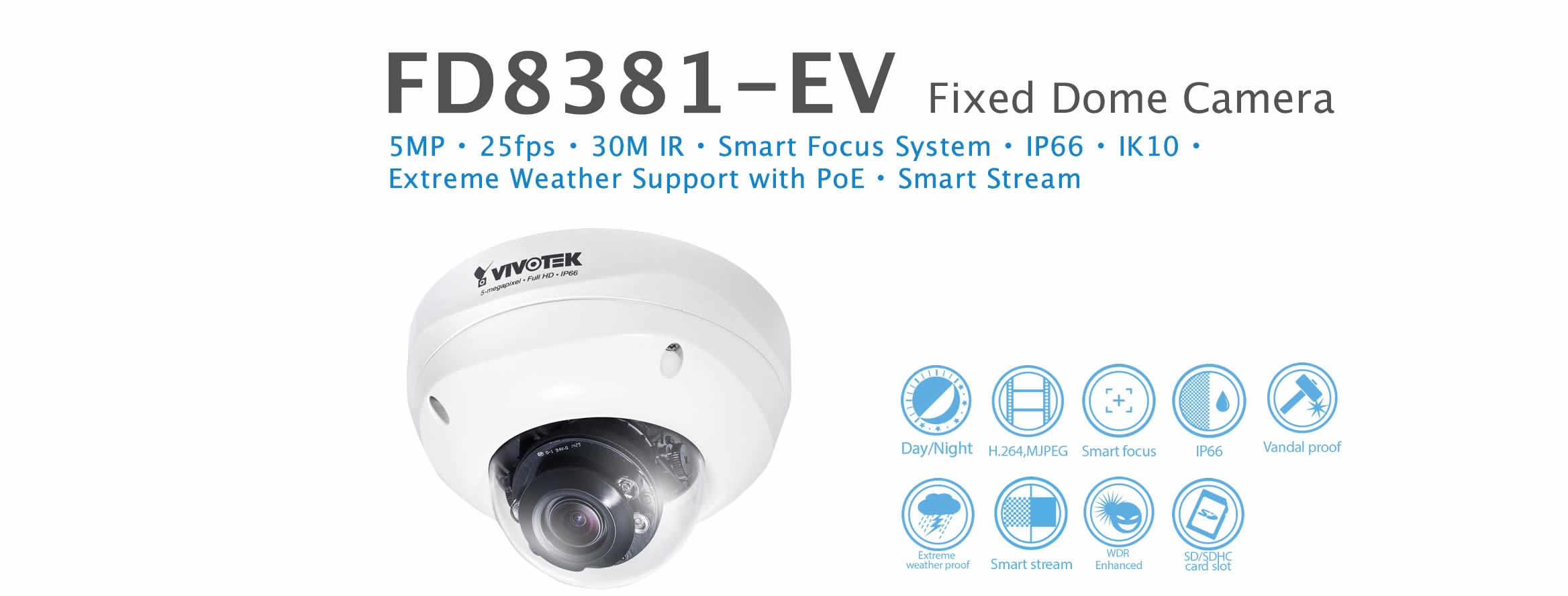

Vivotek FD8381-EV Vandal Proof Fixed Dome Network Camera - 5 Megapixel CMOS Sensor, 25 FPS @ 2560x1920, Real-time H.264, And MJPEG Compression, Two-way Audio, Weather-Proof, Vandal-Proof - White
Overview
VIVOTEK FD8381-EV is a brand-new professional outdoor dome network camera offering up to 25 fps @ 5-Megapixel or 30 fps @ 1080p resolution with superb image quality. Equipped with new image technology, FD8381- EV provides excellent image quality and finer detail than ever before. The powerful 3D Noise Reduction technology and Smart Stream technology enable the FD8381-EV to optimize resolution on a desired object or area to maximize efficiency of bandwidth usage.
The IP66-rated housing is also designed to ensure the camera body to withstand rain and dust and guarantees smooth operation under a multitude of harsh weather condition, while IK10-rated design protects FD8381-EV from vandal damages. Additionally, the wide operating temperature range further enhances the FD8381-EV's performance and reliability in extremely cold and warm weather even with PoE.
Key Features
- 5-Megapixel CMOS Sensor
- 25 fps @ 2560x1920
- 3 ~ 10 mm Vari-focal, Remote Focus, P-iris Lens
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, Effective up to 30 Meters
- Real-time H.264, and MJPEG Compression
- Two-way Audio
- WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
- Smart Focus System for Remote and Precise Focus Adjustment
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
- Built-in 802.3at Compliant PoE
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Smart IR Technology to Avoid Overexposure
- Smart Stream
Specifications
|
System Information
|
| CPU |
Multimedia SoC (System-on-Chip) |
| Flash |
256 MB |
| RAM |
512 MB |
|
Camera Features
|
| Image Sensor |
1/3.2" Progressive CMOS |
| Maximum Resolution |
2560x1920 |
| Lens Type |
Vari-focal |
| Focal Length |
f = 3~ 10 mm |
| Aperture |
F1.3 ~ F2.5 |
| Auto-iris |
P-iris |
| Field of View |
28 ~ 82 (Horizontal)
21 ~ 61 (Vertical)
37 ~ 107 (Diagonal) |
| Shutter Time |
1/5 sec. to 1/32,000 sec. |
| WDR Technology |
WDR Enhanced |
| Day/Night |
Removable IR-cut filter for day & night function |
| Minimum Illumination |
0.27 Lux @ F1.3 (Color)
0.001 Lux @ F1.3 (B/W) |
| Pan/tilt/zoom Functionalities |
ePTZ:
48x digital zoom (4x on IE plug-in, 12x built in) |
| IR Illuminators |
Built-in IR illuminators, effective up to 30 meters
with Smart IR |
| On-board Storage |
MicroSD/SDHC/SDXC card slot |
|
Video
|
| Compression |
H.264 & MJPEG |
| Maximum Frame Rate |
H.264:
25 fps at 2560x1920
30 fps at 1920x1080
MJPEG:
25 fps at 2560x1920
30 fps at 1920x1080 |
| Maximum Streams |
3 simultaneous streams |
| S/N Ratio |
Above 62 dB |
| Dynamic Range |
69 dB |
| Video Streaming |
Adjustable resolution, quality and bitrate |
| Image Settings |
Adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, seamless recording, smart stream, 3D Noise Reduction |
|
Audio
|
| Audio Capability |
Audio input/output (full duplex) |
| Compression |
AAC, G.711, G.726 |
| Interface |
External microphone input
Audio output |
| Network |
| Users |
Live viewing for up to 10 clients |
| Protocols |
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP |
| Interface |
10Base-T/100 BaseTX Ethernet (RJ-45) |
| ONVIF |
Supported, specification available at www.onvif.org |
|
Intelligent Video
|
| Video Motion Detection |
Triple-window video motion detection |
| Alarm and Event |
| Alarm Triggers |
Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
| Alarm Events |
Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card
File upload via HTTP, SMTP, FTP, NAS server and SD card |
|
General
|
| Smart Focus System |
Remote focus |
| Connectors |
RJ-45 cable connector for Network/PoE connection
Audio input
Audio output
AC 24V power input
DC 12V power input
Digital input*1
Digital output*1
Analog video output |
| LED Indicator |
System power and status indicator |
| Power Input |
24V AC
12V DC
IEEE 802.3at PoE |
| Power Consumption |
Max. 18.37W (DC 12V)
Max. 21.57W (AC 24V)
Max. 21.95W (PoE) |
| Dimensions |
: 173 mm x 115 mm |
| Weight |
Net: 1256g |
| Casing |
Weather-proof IP66-rated housing
Vandal-proof IK10-rated housing |
| Safety Certifications |
CE, LVD, FCC Class A, VCCI, C-Tick, UL |
| Operating Temperature |
Starting Temperature: -40C ~ 50C (-40F ~ 122F)
Working Temperature: -50C ~ 50C (-58F ~ 122F) |
| Warranty |
36 months |
| System Requirements |
| Operating System |
Microsoft Windows 7/8/Vista/XP/2000 |
| Web Browser |
Mozilla Firefox 7~10 (Streaming only)
Internet Explorer 7.x, 8.x, 9.x, 10.x, 11.x |
| Other Players |
VLC: 1.1.11 or above
Quicktime: 7 or above |
|
Included Accessories
|
|
| CD |
User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software |
| Others |
Quick installation guide, warranty card, mounting plate, alignment sticker, desiccant bag, screw |
|
|
|
|
