27/04
|

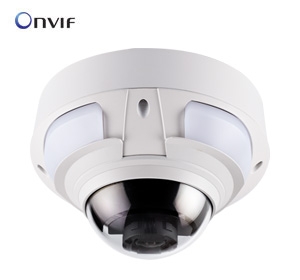

GeoVision GV-VD2540-E Outdoor IP Dome Camera - 1/2.8" Progressive Scan Super Low Lux CMOS, Dual Streams From H.264 And MJPEG, Up to 30 fps at 1920 x 1080, Two-Way Audio - White GV-VD2540-E 2MP H.264 3x Zoom Super Low Lux WDR IR Arctic Vandal Proof IP Dome
GV-VD2540-E is an outdoor camera designed with IK10+ vandal resistance, IP67 ingress protection and tolerance to extreme temperatures. With its motorized varifocal lens, the user can zoom and focus the camera from the Web interface. The camera is equipped with a super low lux CMOS image sensor with which the camera is capable of providing a color live view in near darkness. This night vision is further enhanced with its high power LEDs with up to 25 m (82 ft.) effective distance.
Features
- 1/2.8" progressive scan super low lux CMOS
- Min. illumination at 0.02 lux
- Dual streams from H.264 and MJPEG
- Up to 30 fps at 1920 x 1080
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- Wide temperature tolerance (-40°C ~ 50°C / -40°F ~ 122°F)
- Motorized varifocal lens for remote focus/zoom adjustment
- 3-axis mechanism (pan / tilt / roll)
- Day and night function (with removable IR-cut filter)
- High power IR LEDs
- Intelligent IR
- IR distance up to 25 m (82 ft)
- External microphone
- Two-way audio
- One sensor input and alarm output
- TV-out support
- Built-in micro SD card slot (SD/SDHC) for local storage
- DC 12V / AC 24V / PoE+ (IEEE 802.3at)
- Wide Dynamic Range (WDR)
- 3D DNR (Digital Noise Reduction)
- Defog
- Motion detection
- Tampering alarm
- Privacy mask
- IP address filtering
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF (Profile S) conformant
No memory card slot & local storage function for Argentina
Active Tampering Alarm
Tampered
Focus Change
Camera Shift
Note:
1. The power adapter can be excluded upon request.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.
|
|
|
|
27/04
|

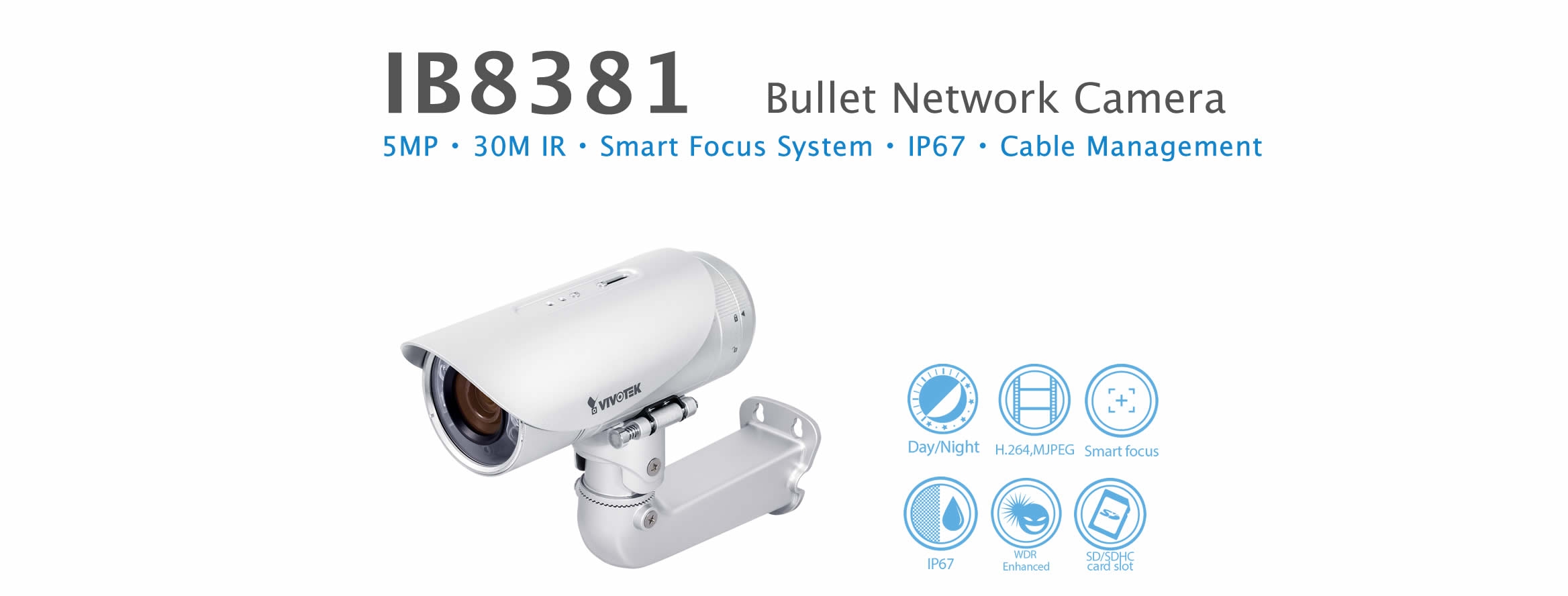

Vivotek IB8381 Bullet Network Camera - 5 Megapixel CMOS Sensor, 25FPS, Removable IR-Cut Filter For Day & Night Function, Real-time H.264, And MJPEG Compression, Two-Way Audio, Weather-Proof - Silver
Overview
VIVOTEK IB8381 is a brand-new professional outdoor bullet network camera offering up to 25 fps @ 5-Megapixel or 30 fps @ 1080p resolution with superb image quality. Equipped with new image technology, IB8381 provides excellent image quality with more details. Featuring 3D Noise Reduction technology and Smart Stream technology, IB8381 can be used to optimize resolution on a desired object or area to maximize bandwidth usage.
The IP67-rated housing is also designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions.
Key Features
- 5-Megapixel CMOS Sensor
- 25fps @ 5MP
- 3 ~ 9 mm Vari-focal, P-iris Lens
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, Effective up to 30 Meters
- Real-time H.264, and MJPEG Compression
- Two-way Audio
- WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environment
- Smart Focus System for Remote and Precise Focus Adjustment
- Weather-proof IP67-rated Housing
- Built-in SD/SDHC/SDXC Card Slot for On-board Storage
- Mounting Bracket with Cable Management for Protected Installation
Specifications
|
System Information
| CPU |
- Multimedia SoC (System-on-Chip)
|
| Flash |
|
| RAM |
|
|
Camera Features
| Image sensor |
|
| Maximum Resolution |
|
| Lens Type |
|
| Focal Length |
|
| Aperture |
|
| Auto-iris |
|
| Field of View |
- 31 ~ 67 (horizontal)
- 24 ~ 50 (vertical)
- 40 ~ 90 (diagonal)
|
| Shutter Time |
- 1/5 sec. to 1/32,000 sec.
|
| WDR Technology |
|
| Day & Night |
- Removable IR-cut filter for day & night function
|
| Minimum Illumination |
- 0.2 Lux @ F1.2 (Color)
- 0.001 Lux @ F1.2 (B/W)
|
| Pan / Tilt / Zoom |
- ePTZ
- 48x digital zoom ( 4x on IE plug-in, 12x built-in )
|
| IR Illuminators |
- Built-in IR illuminators, effective up to 30 meters with Smart IR
|
| On-board Storage |
|
|
Video
| Compression |
|
| Maximum Frame Rate |
- H.264:
- 25 fps at 2560x1920
- 30 fps at 1920x1080
- MJPEG:
- 25 fps at 2560x1920
- 30 fps at 1920x1080
|
| Maximum Streams |
|
| S/N Ratio |
|
| Dynamic Range |
|
| Video Streaming |
- Adjustable resolution, quality and bit rate
|
| Image Settings |
- Adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, seamless recording, smart stream, 3DNR
|
|
Audio
| Audio Capability |
- Audio input/output (full duplex)
|
| Compression |
|
| Interface |
- External microphone input
- External line output
|
|
Network
| Users |
- Live viewing for up to 10 clients
|
| Protocols |
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP
|
| Interface |
- 10 Base-T / 100 BaseTX Ethernet (RJ-45)
|
| ONVIF |
- Supported, specification available at www.onvif.org
|
|
Intelligent Video
| Video Motion Detection |
- Triple-window video motion detection
|
|
Alarm and Event
| Alarm Triggers |
- Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
|
| Alarm Events |
- Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card
- File upload via HTTP, SMTP, FTP, NAS server and SD card
|
|
General
| Smart Focus System |
|
| Connectors |
- RJ-45 cable connector for Network/PoE connection
- Audio input
- Audio output
- AC 24V power input
- DC 12V power input
- Digital input*1
- Digital output*1
- Analog video output
|
| LED Indicator |
- System power and status indicator
|
| Power input |
- 24V AC
- 12V DC
- IEEE 802.3at PoE
|
| Power consumption |
- Max. 10.86W (DC 12V)
- Max. 12.13W (AC 24V)
- Max. 12.36W (PoE)
|
| Dimensions |
|
| Weight |
|
| Casing |
- Weather-proof IP67-rated housing
|
| Safety Certifications |
- CE, C-Tick, FCC Class A, LVD, UL, VCCI
|
| Operating Temperature |
- Starting Temperature: -10C ~ 50C (14F~ 122F)
- Working Temperature: -20C ~ 50C (-4F~ 122F)
|
| Warranty |
|
|
System Requirements
| Operating System |
- Microsoft Windows 7 / Vista / XP / 2000
|
| Browser |
- Mozilla Firefox 7~10 ( Streaming only )
- Internet Explorer 7 / 8 / 9 / 10
|
| Other Players |
- VLC: 1.1.11 or above
- QuickTime: 7 or above
|
|
|
|
|
|
