06/02
|

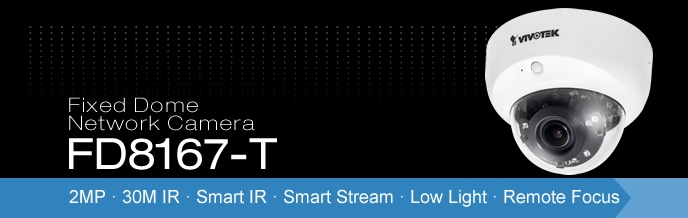

Vivotek FD8167-T Fixed Dome Network Camera - 2 Megapixel CMOS Sensor, 30 FPS @ 1920x1080, 2.8~12 mm Vari-focal, P-iris Lens, Removable IR-cut Filter for Day & Night Function, Two-Way Audio - White
2MP 30M IR Smart IR Smart Stream Low Light Remote Focus Fixed Dome Network Camera FD8167-T
VIVOTEK FD8167-T is a stylish, indoor-style network camera designed for diverse indoor applications. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the FD8167-T is an all-in-one indoor camera capable of capturing high quality and high resolution video up to 2 Megapixel, even in low light environment. Providing such a polished image quality, FD8167-T is also designed with VIVOTEK Smart Stream, 3DNR to save notable bandwidth for users.
To emphasize the image quality, FD8167-T also comes with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as image quality. To help adjust the focus more efficiently, FD8167-T is also designed with VIVOTEK's Smart Focus System to make installation and adjustment easier by using remote focus and zoom adjustment.
Features
- 2-Megapixel CMOS Sensor
- 30 fps @ 1920x1080
- 2.8 ~ 12 mm Vari-focal, P-iris Lens
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, Effective up to 30 Meters
- Real-time H.264, and MJPEG Compression
- Two-way Audio
- WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
- Smart IR Technology to Avoid Overexposure
- 3D Noise Reduction
- PIR
- Support Installation with AM-712 Conduit Box
- SNV (Supreme Night Visibility)
Specifications
System Information
| CPU |
- Multimedia SoC (System-on-Chip)
|
| Flash |
|
| RAM |
|
|
Camera Features
| Image sensor |
|
| Maximum Resolution |
|
| Lens Type |
|
| Focal Length |
|
| Aperture |
|
| Auto-iris |
|
| Field of View |
- 45 ~ 101 (Horizontal)
- 25 ~ 55 (Vertical)
- 52 ~ 125 (Diagonal)
|
| Shutter Time |
- 1/5 sec. to 1/32,000 sec.
|
| WDR Technology |
|
| Day & Night |
- Removable IR-cut filter for day & night function
|
| Minimum Illumination |
- 0.06 Lux @ F1.8 (Color)
- 0.001 Lux @ F1.8 (B/W)
|
| Pan / Tilt / Zoom |
- ePTZ
- 48x digital zoom (4x on IE plug-in, 12x built-in)
|
| IR Illuminators |
- Built-in IR illuminators, effective up to 30 meters
- with Smart IR
- IR LED*6
|
| On-board Storage |
- MicroSD/SDHC/SDXC card slot
|
|
Video
| Compression |
|
| Maximum Frame Rate |
- 30 fps @ 1920x1080 In both compression modes
|
| Maximum Streams |
|
| S/N Ratio |
|
| Dynamic Range |
|
| Video Streaming |
- Adjustable resolution, quality and bitrate
|
| Image Settings |
- Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks,Scheduled profile settings, Seamless recording, smart stream, 3D Noise Reduction
|
|
Audio
| Audio Capability |
- Audio input /output (full duplex)
|
| Compression |
|
| Interface |
- Internal microphone input
- External line output
|
|
Network
| Users |
- Live viewing for up to 10 clients
|
| Protocols |
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP
|
| Interface |
- 10 Base-T / 100BaseTX Ethernet (RJ-45)
|
| ONVIF |
- Supported, specification available at www.onvif.org
|
|
Intelligent Video
| Video Motion Detection |
- Triple-window video motion detection
|
|
Alarm and Event
| Alarm Triggers |
- Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
|
| Alarm Events |
- Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card
- File upload via HTTP, SMTP, FTP, NAS server and SD card
|
|
General
| Smart Focus System |
|
| Connectors |
- RJ-45 cable connector for Network/PoE connection
- Audio input
- Audio output
- DC 12V power input
- Digital input*1
- Digital output*1
|
| LED Indicator |
- System power and status indicator
|
| Power input |
- 12V DC
- IEEE 802.3af PoE Class 3
|
| Power consumption |
- Max: 11 W (DC12V)
- Max: 11.6 W (PoE)
|
| Dimensions |
|
| Weight |
|
| Safety Certifications |
- CE, LVD, FCC Class B, VCCI, C-Tick, UL
|
| Operating Temperature |
- Starting Temperature: -10C ~ 50C (14F~ 122F)
- Working Temperature: -20C ~ 50C (-4F~ 122F)
|
| Warranty |
|
|
System Requirements
| Operating System |
- Microsoft Windows /8/Vista/XP/2000
|
| Browser |
- Mozilla Firefox 7~10 (Streaming only)
- Internet Explorer 7.x, 8.x, 9.x,10.x
|
| Other Players |
- VLC: 1.1.11 or above
- QuickTime: 7 or above
|
|
|
|
|
|
06/02
|

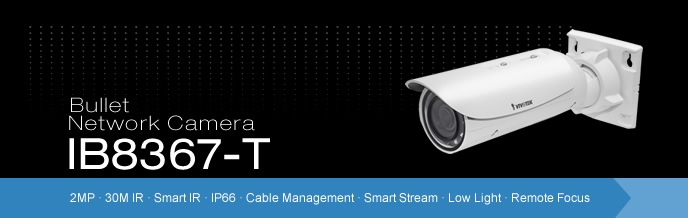

Vivotek IB8367-T Bullet Network Camera - 2-Megapixel CMOS Sensor, 30 FPS @ 1920x1080, 2.8~12 mm Vari-Focal, P-iris Lens, Removable IR-cut Filter for Day & Night Function, Two-way Audio, Weather-Proof - White
2MP 30M IR Smart IR IP66 Cable Management Smart Stream Low Light Remote Focus Bullet Network Camera IB8367-T
Overview
VIVOTEK IB8367-T series are stylish, bullet-style network cameras designed for diverse outdoor applications. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the IB8367-T series are all-in-one outdoor cameras capable of capturing high quality and high resolution, especially in low light environment. In addition to applying VIVOTEK's notable bandwidth solution in Smart Stream and 3DNR, the IB8367-T models are also designed with smart focus system to assit focus adjustment more efficiently.
Incorporating a number of advanced features standard for VIVOTEK cameras, the IB8367-T series are the ideal solutions for your outdoor surveillance needs.
Features
- 2-Megapixel CMOS Sensor
- 30 fps @ 1920x1080
- 2.8 ~ 12 mm Vari-focal, P-iris Lens
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, Effective up to 30 Meters
- Real-time H.264, and MJPEG Compression
- Two-way Audio
- WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
- Weather-proof IP66-rated Housing
- 3D Noise Reduction
- Smart IR Technology to Avoid Overexposure
- SNV (Supreme Night Visibility)
Specifications
System Information
| CPU |
- Multimedia SoC (System-on-Chip)
|
| Flash |
|
| RAM |
|
|
Camera Features
| Image sensor |
|
| Maximum Resolution |
|
| Lens Type |
|
| Focal Length |
|
| Aperture |
|
| Auto-iris |
|
| Field of View |
- 45 ~ 103 (Horizontal)
- 25 ~ 56 (Vertical)
- 54 ~ 128 (Diagonal)
|
| Shutter Time |
- 1/5 sec. to 1/32,000 sec.
|
| WDR Technology |
|
| Day & Night |
- Removable IR-cut filter for day & night function
|
| Minimum Illumination |
- 0.06 Lux @ F1.8 (Color)
- 0.001 Lux @ F1.8 (B/W)
|
| Pan / Tilt / Zoom |
- ePTZ
- 48x digital zoom (4x on IE plug-in, 12x built-in)
|
| IR Illuminators |
- Built-in IR illuminators, effective up to 30 meters
- with Smart IR
- IR LED*6
|
| On-board Storage |
|
|
Video
| Compression |
|
| Maximum Frame Rate |
- 30 fps @ 1920x1080 in both compression modes
|
| Maximum Streams |
|
| S/N Ratio |
|
| Dynamic Range |
|
| Video Streaming |
- Adjustable resolution, quality and bitrate
|
| Image Settings |
- Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks,Scheduled profile settings, Seamless recording, smart stream, 3D Noise Reduction
|
|
Audio
| Audio Capability |
- Audio input /output (full duplex)
|
| Compression |
|
| Interface |
- External microphone input
- External line output
|
|
Network
| Users |
- Live viewing for up to 10 clients
|
| Protocols |
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP
|
| Interface |
- 10 Base-T / 100 BaseTX Ethernet (RJ-45)
|
| ONVIF |
- Supported, specification available at www.onvif.org
|
|
Intelligent Video
| Video Motion Detection |
- Triple-window video motion detection
|
|
Alarm and Event
| Alarm Triggers |
- Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
|
| Alarm Events |
- Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card
- File upload via HTTP, SMTP, FTP, NAS server and SD card
|
|
General
| Smart Focus System |
|
| Connectors |
- RJ-45 cable connector for Network/PoE connection
- Audio input
- Audio output
- DC 12V power input
- Digital input*1
- Digital output*1
|
| LED Indicator |
- System power and status indicator
|
| Power input |
- DC 12V
- IEEE 802.3af PoE Class 3
|
| Power consumption |
- Max: 11 W (DC12V)
- Max: 11.6 W (PoE)
|
| Dimensions |
|
| Weight |
|
| Casing |
- Weather-proof IP66-rated housing
|
| Safety Certifications |
- CE, LVD, FCC Class A, VCCI, C-Tick, UL
|
| Operating Temperature |
- Starting Temperature: -10C ~ 50C (14F~ 122F)
- Working Temperature: -20C ~ 50C (-4F~ 122F)
|
| Warranty |
|
|
System Requirements
| Operating System |
- Microsoft Windows 7/8/Vista/XP/2000
|
| Browser |
- Mozilla Firefox 7~10 ( Streaming only )
- Internet Explorer 7.x ,8.x, 9.x, 10.x
|
| Other Players |
- VLC: 1.1.11 or above
- QuickTime: 7 or above
|
|
|
|
|
|
06/02
|
Vivotek IB8367-RT Bullet Network Camera - 2 Megapixel CMOS Sensor, 30 FPS @ 1920x1080, 2.8~12 mm Vari-focal, P-iris Lens, Removable IR-Cut Filter For Day & Night Function, Two-way Audio - White
2MP 30M IR Smart IR IP66 Cable Management Smart Stream PoE Extender Low Light Remote Focus Bullet Network Camera IB8367-RT
Overview
VIVOTEK IB8367-RT series are stylish, bullet-style network cameras designed for diverse outdoor applications. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the IB8367-RT series are all-in-one outdoor cameras capable of capturing high quality and high resolution, especially in low light environment. In addition to applying VIVOTEK's notable bandwidth solution in Smart Stream and 3DNR, the IB8367-RT models are also designed with smart focus system to assit focus adjustment more efficiently.
To meet more outdoor applications and ease cable deployment, IB8367-RT model is the first network camera designed with embedded extender to allow PoE input and PoE output. Users can implement a total PoE solution perfectly. Incorporating a number of advanced features standard for VIVOTEK cameras, the IB8367-RT series are the ideal solutions for your outdoor surveillance needs.
- 2-Megapixel CMOS Sensor
- 30 fps @ 1920x1080
- 2.8 ~ 12 mm Vari-focal, P-iris Lens
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, Effective up to 30 Meters
- Real-time H.264, and MJPEG Compression
- Two-way Audio
- WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
- Weather-proof IP66-rated Housing
- 3D Noise Reduction
- Smart IR Technology to Avoid Overexposure
- Embedded PoE Extender Design to Support both PoE Input & Output
- SNV (Supreme Night Visibility)
Specifications
System Information
| CPU |
- Multimedia SoC (System-on-Chip)
|
| Flash |
|
| RAM |
|
|
Camera Features
| Image sensor |
|
| Maximum Resolution |
|
| Lens Type |
|
| Focal Length |
|
| Aperture |
|
| Auto-iris |
|
| Field of View |
- 45 ~ 103 (Horizontal)
- 25 ~ 56 (Vertical)
- 54 ~ 128 (Diagonal)
|
| Shutter Time |
- 1/5 sec. to 1/32,000 sec.
|
| WDR Technology |
|
| Day & Night |
- Removable IR-cut filter for day & night function
|
| Minimum Illumination |
- 0.06 Lux @ F1.8 (Color)
- 0.001 Lux @ F1.8 (B/W)
|
| Pan / Tilt / Zoom |
- ePTZ
- 48x digital zoom (4x on IE plug-in, 12x built-in)
|
| IR Illuminators |
- Built-in IR illuminators, effective up to 30 meters
- with Smart IR
- IR LED*6
|
| On-board Storage |
|
|
Video
| Compression |
|
| Maximum Frame Rate |
- 30 fps @ 1920x1080 in both compression modes
|
| Maximum Streams |
|
| S/N Ratio |
|
| Dynamic Range |
|
| Video Streaming |
- Adjustable resolution, quality and bitrate
|
| Image Settings |
- Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks,Scheduled profile settings, Seamless recording, smart stream, 3D Noise Reduction
|
|
Audio
| Audio Capability |
- Audio input /output (full duplex)
|
| Compression |
|
| Interface |
- External microphone input
- External line output
|
|
Network
| Users |
- Live viewing for up to 10 clients
|
| Protocols |
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP
|
| Interface |
- 10 Base-T / 100 BaseTX Ethernet (RJ-45)
|
| ONVIF |
- Supported, specification available at www.onvif.org
|
|
Intelligent Video
| Video Motion Detection |
- Triple-window video motion detection
|
|
Alarm and Event
| Alarm Triggers |
- Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
|
| Alarm Events |
- Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card
- File upload via HTTP, SMTP, FTP, NAS server and SD card
|
|
General
| Smart Focus System |
|
| Connectors |
- RJ-45 cable connector for Network/PoE connection
- RJ-45 cable connector for PoE output
- Audio input
- Audio output
- Digital input*1
- Digital output*1
|
| LED Indicator |
- System power and status indicator
|
| Power input |
|
| Power consumption |
|
| Dimensions |
|
| Weight |
|
| Casing |
- Weather-proof IP66-rated housing
|
| Safety Certifications |
- CE, LVD, FCC Class A, VCCI, C-Tick, UL
|
| Operating Temperature |
- Starting Temperature: -10C ~ 50C (14F~ 122F)
- Working Temperature: -20C ~ 50C (-4F~ 122F)
|
| Warranty |
|
|
System Requirements
| Operating System |
- Microsoft Windows 7/8/Vista/XP/2000
|
| Browser |
- Mozilla Firefox 7~10 ( Streaming only )
- Internet Explorer 7.x ,8.x, 9.x, 10.x
|
| Other Players |
- VLC: 1.1.11 or above
- QuickTime: 7 or above
|
|
|
|
|
|
06/02
|
Vivotek FD8367-TV Fixed Dome Network Camera - 2 Megapixel CMOS Sensor, 30 FPS @ 1920x1080, 2.8~12mm Vari-focal, P-iris Lens, Removable IR-Cut Filter for Day & Night Function, Two-way Audio - White
2MP 30M IR Smart IR IP66 Smart Stream Low Light Remote Focus Fixed Dome Network Camera FD8367-TV
Overview
VIVOTEK FD8367-TV is a robust, outdoor-style network camera designed for diverse outdoor applications. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the FD8367-TV is an all-in-one outdoor camera capable of capturing high quality and high resolution video up to 2 Megapixel, even in low light environment. Providing such a polished image quality, FD8367-TV is also designed with VIVOTEK Smart Stream, 3DNR to save notable bandwidth for users.
To meet outdoor applications, FD8367-TV is also designed with IP66-rated housing to help the camera body withstand rain and dust and high pressure water jets from any direction while its IK10-rated housing can provide the protection against the vandal act and impact.To help adjust the focus more efficiently, FD8367-TV is also designed with VIVOTEK's Smart Focus System to make installation and adjustment easier by using remote focus and zoom adjustment.
Features
- 2-Megapixel CMOS Sensor
- 30 fps @ 1920x1080
- 2.8 ~ 12 mm Vari-focal, P-iris Lens
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, Effective up to 30 Meters
- Real-time H.264, and MJPEG Compression
- Two-way Audio
- WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
- 3D Noise Reduction
- Smart IR Technology to Avoid Overexposure
- Support Installation with AM-712 Conduit Box
- SNV (Supreme Night Visibility)
Specifications
System Information
| CPU |
- Multimedia SoC (System-on-Chip)
|
| Flash |
|
| RAM |
|
|
Camera Features
| Image sensor |
|
| Maximum Resolution |
|
| Lens Type |
|
| Focal Length |
|
| Aperture |
|
| Auto-iris |
|
| Field of View |
- 45 ~ 101 (Horizontal)
- 25 ~ 55 (Vertical)
- 52 ~ 125 (Diagonal)
|
| Shutter Time |
- 1/5 sec. to 1/32,000 sec.
|
| WDR Technology |
|
| Day & Night |
- Removable IR-cut filter for day & night function
|
| Minimum Illumination |
- 0.06 Lux @ F1.8 (Color)
- 0.001 Lux @ F1.8 (B/W)
|
| Pan / Tilt / Zoom |
- ePTZ
- 48x digital zoom (4x on IE plug-in, 12x built-in)
|
| IR Illuminators |
- Built-in IR illuminators, effective up to 30 meters
- with Smart IR
- IR LED*6
|
| On-board Storage |
- MicroSD/SDHC/SDXC card slot
|
|
Video
| Compression |
|
| Maximum Frame Rate |
- 30 fps @ 1920x1080 in both compression modes
|
| Maximum Streams |
|
| S/N Ratio |
|
| Dynamic Range |
|
| Video Streaming |
- Adjustable resolution, quality and bitrate
|
| Image Settings |
- Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks,Scheduled profile settings, Seamless recording, smart stream, 3D Noise Reduction
|
|
Audio
| Audio Capability |
- Audio input /output (full duplex)
|
| Compression |
|
| Interface |
- External microphone input
- External line output
|
|
Network
| Users |
- Live viewing for up to 10 clients
|
| Protocols |
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP
|
| Interface |
- 10 Base-T / 100 BaseTX Ethernet (RJ-45)
|
| ONVIF |
- Supported, specification available at www.onvif.org
|
|
Intelligent Video
| Video Motion Detection |
- Triple-window video motion detection
|
|
Alarm and Event
| Alarm Triggers |
- Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
|
| Alarm Events |
- Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card
- File upload via HTTP, SMTP, FTP, NAS server and SD card
|
|
General
| Smart Focus System |
|
| Connectors |
- RJ-45 cable connector for Network/PoE connection
- Audio input
- Audio output
- DC 12V power input
- Digital input*1
- Digital output*1
|
| LED Indicator |
- System power and status indicator
|
| Power input |
- DC 12V
- IEEE 802.3af PoE Class 3
|
| Power consumption |
- Max: 11 W (DC12V)
- Max: 11.6 W (PoE)
|
| Dimensions |
|
| Weight |
|
| Casing |
- Weather-proof IP66-rated housing
- Vandal-proof IK10-rated metal housing
|
| Safety Certifications |
- CE, LVD, FCC Class A, VCCI, C-Tick, UL
|
| Operating Temperature |
- Starting Temperature: -10C ~ 50C (14F~ 122F)
- Working Temperature: -20C ~ 50C (-4F~ 122F)
|
| Warranty |
|
|
System Requirements
| Operating System |
- Microsoft Windows 7/8/Vista/XP/2000
|
| Browser |
- Mozilla Firefox 7~10 ( Streaming only )
- Internet Explorer 7.x ,8.x, 9.x, 10.x
|
| Other Players |
- VLC: 1.1.11 or above
- QuickTime: 7 or above
|
|
|
|
|
|
Previous Page
|
Next Page
|
|
