17/04
|
LEDware LED-HL-CW-200LO LED High Bay (Lamp Only) 240V 200W (19700 lm) Cool White IP65 LEDware LED High Bay (Lamp Only) 240V 200W (19700 lm) Cool White IP65
LED-HL-CW-200LO
Description
LEDware LED High Bay (Lamp Only) 240V 200W (19700 lm) Cool White IP65
Equivalent to a 400W conventional high bay lamp.
LED high bay lighting is typically used in industrial applications such as factories/warehouses. They are a low power replacement for conventional mercury vapour or metal halide high bays lamps. LED high bays are 50% more energy efficient and decrease ongoing maintenance costs due to their longevity, making our fixtures the most cost effective and eco-friendly lighting solution.
Features of this LED High Bay Lamp:
- Lightweight aluminium heatsink, excellent thermal conductivity, colorcast and durable.
- Effective control of the lighting area through the aluminium lampshade.
- Aluminium base surface sealed with Epoxy resin is effectively dustproof, moisture proof and rust proof.
- Die cast power case is made of high strength aluminium, with anti-static thermoplastic spray printing, corrosion resistant, oxidation resistant.
Our High Bays are provided as lamp only, please select from the following reflectors when placing your order
120 Degree Aluminium Reflector
60 Degree Aluminium Reflector
60 Degree Polycarbonate Reflector
| Model Number |
LED-HL-CW-200LO |
| Lamp Type |
High Bay Lamp |
| Wattage |
200W (equiv. to 400W conventional) |
| Total Lumen Output |
19,700 lm |
| Colour Temperature (CCT) |
Cool White (6000K) |
| WiringType |
Flex & Plug |
| Dimmable |
No |
| Beam Angle |
N/A |
| Light Quality (CRI) |
75 |
| Illuminant |
High Brightness SMD LED |
| Input voltage |
240V AC, 50/60 Hz |
| Lifespan |
>30,000 Hours |
| Operating Temperature |
-20C ~ 50C |
| Operating Humidity |
30%-85% |
| IP Rating |
IP45 |
| Warranty |
3 Years |
Physical Dimensions
- Diameter
- Length
- Weight |
505mm
520mm
8.4 kg |

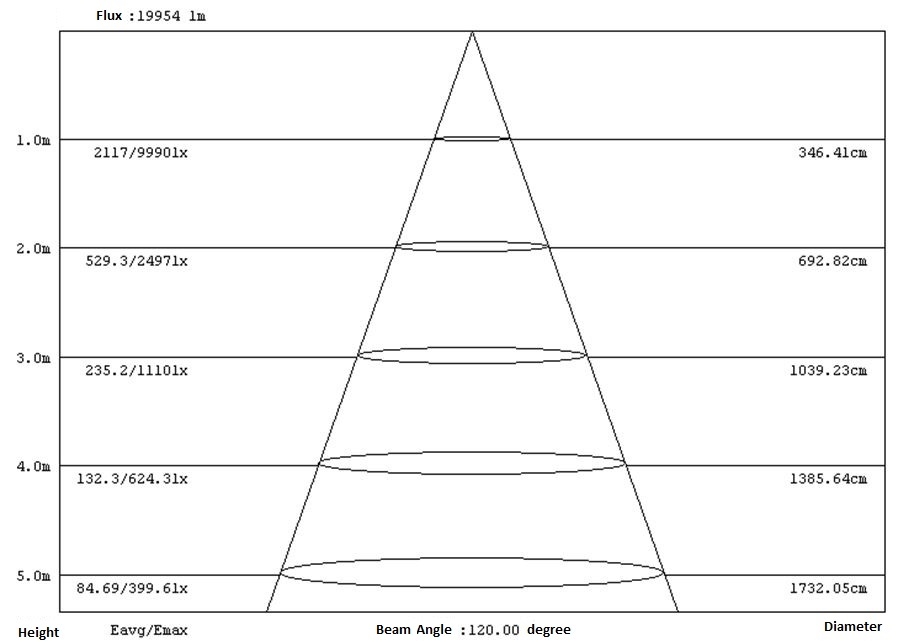

Lux Diagram
|
|
|
|
17/04
|
LEDware LED-HL-CW-150LO LED High Bay (Lamp Only) 240V 150W (15000 lm) Cool White IP65 LEDware LED High Bay (Lamp Only) 240V 150W (15000 lm) Cool White IP65
Description
Equivalent to a 300W conventional high bay lamp.
LED high bay lighting is typically used in industrial applications such as factories/warehouses. They are a low power replacement for conventional mercury vapour or metal halide high bays lamps. LED high bays are 50% more energy efficient and decrease ongoing maintenance costs due to their longevity, making our fixtures the most cost effective and eco-friendly lighting solution.
Features of this LED High Bay Lamp:
- Lightweight aluminium heatsink, excellent thermal conductivity, colorcast and durable.
- Effective control of the lighting area through the aluminium lampshade.
- Aluminium base surface sealed with Epoxy resin is effectively dustproof, moisture proof and rust proof.
- Die cast power case is made of high strength aluminium, with anti-static thermoplastic spray printing, corrosion resistant, oxidation resistant.
Our High Bays are provided as lamp only, please select from the following reflectors when placing your order
120 Degree Aluminium Reflector
60 Degree Aluminium Reflector
60 Degree Polycarbonate Reflector
Specifications
| Model Number |
LED-HL-CW-150LO |
| Lamp Type |
High Bay Lamp |
| Wattage |
150W (equiv. to 300W conventional) |
| Total Lumen Output |
15,000 lm |
| Colour Temperature (CCT) |
Cool White (6000K) |
| WiringType |
Flex & Plug |
| Dimmable |
No |
| Beam Angle |
N/A |
| Light Quality (CRI) |
75 |
| Illuminant |
High Brightness SMD LED |
| Input voltage |
240V AC, 50/60 Hz |
| Lifespan |
>30,000 Hours |
| Operating Temperature |
-20C ~ 50C |
| Operating Humidity |
30%-85% |
| IP Rating |
IP45
|
| Warranty |
3 Years |
Physical Dimensions
- Diameter
- Length
- Weight |
385mm
270mm
8.4 kg |
Lux Diagram
|
|
|
|
17/04
|
LEDware LED-HL-CW-100LO LED High Bay (Lamp Only) 240V 100W (8500 lm) - Cool White IP65 LEDware LED High Bay (Lamp Only) 240V 100W (8500 lm) Cool White IP65
Description
Equivalent to a 200W conventional high bay lamp.
LED high bay lighting is typically used in industrial applications such as factories/warehouses. They are a low power replacement for conventional mercury vapour or metal halide high bays lamps. LED high bays are 50% more energy efficient and decrease ongoing maintenance costs due to their longevity, making our fixtures the most cost effective and eco-friendly lighting solution.
Features of this LED High Bay Lamp:
- Lightweight aluminium heatsink, excellent thermal conductivity, colorcast and durable.
- Effective control of the lighting area through the aluminium lampshade.
- Aluminium base surface sealed with Epoxy resin is effectively dustproof, moisture proof and rust proof.
- Die cast power case is made of high strength aluminium, with anti-static thermoplastic spray printing, corrosion resistant, oxidation resistant.
Our High Bays are provided as lamp only, please select from the following reflectors when placing your order
120 Degree Aluminium Reflector
60 Degree Aluminium Reflector
60 Degree Polycarbonate Reflector
| Model Number |
LED-HL-CW-100LO |
| Lamp Type |
High Bay Lamp |
| Wattage |
100W (equiv. to 200W conventional) |
| Total Lumen Output |
8500 lm |
| Colour Temperature (CCT) |
Cool White (6000K) |
| WiringType |
Flex & Plug |
| Dimmable |
No |
| Beam Angle |
N/A |
| Light Quality (CRI) |
75 |
| Illuminant |
High Brightness SMD LED |
| Input voltage |
240V AC, 50/60 Hz |
| Lifespan |
>30,000 Hours |
| Operating Temperature |
-20C ~ 50C |
| Operating Humidity |
30%-85% |
| IP Rating |
IP65 |
| Warranty |
3 Years |
Physical Dimensions
- Diameter
- Length
- Weight |
385mm
270mm
6.5 kg |
|
|
|
|
