PLANET announces new H.264 2Mega-Pixel outdoor infrared vandal proof Internet Camera, the ICA-HM136, for meeting the next generation demands in worldwide market. The ICA_HM136 can simultaneously provide H.264, MPEG-4 and M-JPEG video streaming in small video size; therefore it saves you lots of bandwidth usage. Through high performance 2Mega-Pixel CMOS sensor, the ICA-HM136 delivers high quality image at maximum 1600x1200(UXGA) resolutions for color images. It is also equipped with 2.7mm to 9mm Vari-focal auto iris lens allowing easy installation and camera angle adjustment for different installed sites.

With built-in 18 IR LED around the lens and the IR-cut filter, the ICA-HM136 can provide good video quality in both day and night surveillance up to 15 meters. The network and analog video output interfaces are also provided in the ICA-HM136 for flexible viewing and recording implementations.

The ICA-HM136 complies with IEEE 802.3af PoE interface for flexible and easy installation in the ceiling without concerning the outlet / socket locations and thus it further eliminates the need of power cables and installation costs. In addition, the ICA-HM136 supports 2-Way audio that enables audio communication between local and remote ICA-HM136 installed sites by using the external microphone and adding an external speaker.

The ICA-HM136 is the perfect choice for outdoor surveillance system by providing IP-66 certified water-proof protection. It is designed with vandal-proof and IP66 weather-proof case that can shield 400 pounds of impact. The vandal-proof design with die-cast aluminum body prevents the intentional destruction. Water-resistant construction with weather-proof solid housing performs reliable operation in any environment.

The ICA-HM136 can be managed by PLANET Cam Viewer 3, the professional IP-Surveillance management software that provides monitoring, recording and event management functions for multi-camera video surveillance applications. The Cam Viewer 3 enables you to setup a comprehensive and effective surveillance system quickly and easily to protect your property and life.

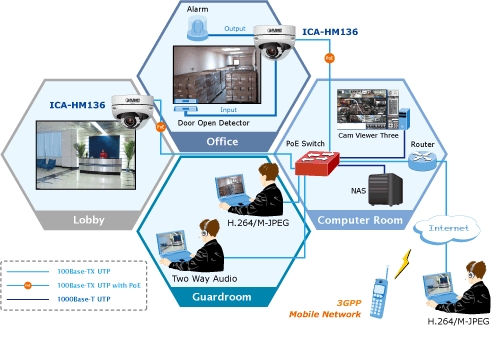

PLANET ICA-HM136 is providing various surveillance applications to deliver crisp and clear images, perfect for the identification of objects and persons.





Video Specification
Image Sensor	2 Mega-Pixel CMOS image sensor
Lens	2.7-9mm Vari-Focal lens with ICR and DC Iris
Sensitivity	0.5 Lux
View Angle	H: 30.4~101 Degree / V: 23~75 Degree
IR LED	High light IR LED x 18pcs
IR Wavelength	850 nm
IR Distance	20M
Video Encoder	H.264 / MPEG-4 / M-JPEG
Rate Control	CBR (Constant Bit Rate) / VBR (Variable Bit Rate)
Video Resolution	H.264 UXGA / 720p / SXGA/ VGA / QVGA / QCIF M-JPEG UXGA / 720p / SXGA/ VGA / QVGA MPEG4 QCIF (Only for 3GPP)
Frame Rate	UXGA Up to 15fps SXGA Up to 22fps HD-720p / SVGA / VGA / QVGA / QCIF Up to 30fps
Image Control	Brightness, Sharpness, Contrast, AGC, BLC, Night Mode Text, Time and date overlay
Audio Specification
Audio Codec	G.711 / AMR
Audio I/O	Audio in: External Microphone Audio out: External Speaker
Audio Streaming	One-Way or Two-Way
Audio Output	Phone Jack
Network and Configuration
Network Interface	1 x RJ-45
Network Standard	IEEE 802.3 / IEEE 802.3u / IEEE 802.3af
Network Protocol	TCP, UDP, HTTP, SMTP, FTP, NTP, DNS, DDNS, DHCP, UPnP, RTSP, RTP, RTCP, PPPoE, 3GPP, ICMP
Browser / Software	Microsoft Internet Explorer 6.0 or later PLANET Cam Viewer 3 Lite/Pro
Motion Detection	3 areas definable
Environment Specifications
Protection Class	IP-66 classification with Vandal and Weather proof
Power Requirement	12V DC, 1A IEEE 802.3af Power over Ethernet
Dimension (W x D x H)	126 x 100 x 126 mm
Weight	835 g
Power Consumption	500mA max (IR LED on)
Operating Temperature	-20 ~ 50 Degree C
Operating Humidity	20 ~ 80% (non-condensing)
Emission	CE, FCC







PLANET announces new H.264 Full-HD Fixed Mini Dome IP Camera, ICA-HM131, to feedback the requirements from worldwide market. The ICA-HM131 supports Full HD recording for high quality images. Integrated with the H.264 video compression technology, the ICA-HM131 can compress the video size to smaller one for users to transfer the Full HD images on Internet easily and fast.

The ICA-HM131 is innovatively designed with IEEE 802.3af PoE power supply and recessed mount case for quick and easy installation in the ceiling or the wall without concerning the outlet / socket locations. It thus eliminates the need of power cables and installation costs.

The ICA-HM131 features Multi-Profile to provide video stream simultaneously. It can deliver clear images with dual H.264 / M-JPEG stream video up to 1080p (1920 x 1080 pixels) @15fps. The IP Camera uses progressive scan to perform full resolution images of the moving objects without distortion, which is perfect for critical areas surveillance such as the entrances or exits of the building where are needed to be monitored in greater details.

The ICA-HM131 can be managed by PLANET Cam Viewer 3, the professional central management software for multi-camera video surveillance application, to provide monitoring, recording and event management functions. The Cam Viewer 3 enables you to setup a comprehensive and effective surveillance system quickly and easily. With the ICA-HM131 managed by the Cam Viewer 3, it provides an enhanced professional security environment to protect your property and life.



ICA-HM131

H.264 Full-HD Fixed Dome IP Camera

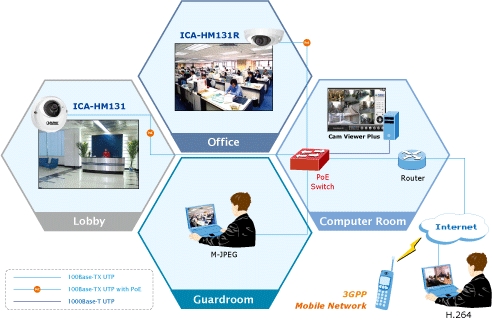

PLANET ICA-HM131 provides various surveillance applications to deliver users crisp and clear images that is perfect for identification of objects and people.







Video Specification
Image Sensor	1/2.7" Progressive CMOS
Lens	4 mm, F1.5
Minimum illumination	0.2 Lux @ F1.2
View Angle (Horizontal / Vertical)	66 / 52 Degree
Scan Method	Progressive
Video Encoder	H.264 / M-JPEG
Rate Control	VBR (Variable Bit Rate)
Video Resolution	H.264 1080P / 720P M-JPEG 1080P / 720P / D1 / CIF
Frame Rate	15fps for 1080p 30fps for other resolutions
Image Control	AWB, AES
Audio Specification
Audio Codec	G.711, G.726
Audio In	Internal Microphone
Network and Configuration
Network Interface	1 x RJ-45
Network Standard	IEEE 802.3 / IEEE 802.3u
Network Protocol	TCP/IP, UDP, RTP, RTSP, HTTP, ICMP, FTP, SMTP, DHCP, IGMP
Browser / Software	Microsoft Internet Explorer 6.0 or later, Cam Viewer 3 Lite/Pro
Motion Detection	10 area definable
Environment Specifications
Power Requirement	IEEE 802.3af
Dimension ( x H)	110 x 50 mm
Weight	180g
Power Consumption	3.8W max.
Operating Temperature	0 ~ 50 Degree C
Operating Humidity	10 ~ 90% (non-condensing)
Emission	CE, FCC
