20/05
|

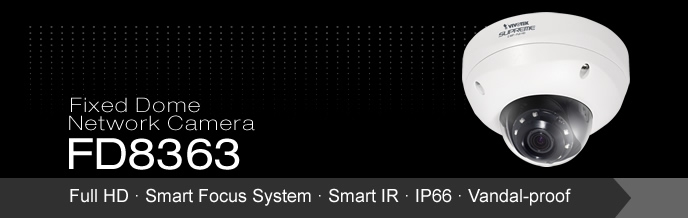

Vivotek FD8363 Fixed Dome Network Camera - 2 Megapixel CMOS Sensor, 30 fps @ 1920x1080, Vandal-Proof IK10-rated And Weather-Proof IP66-Rated Housing, Built-In MicroSD/SDHC/SDXC Card Slot - White
Full HD Smart Focus System Smart IR IP66 Vandal-proof Fixed Dome Network Camera FD8363
Overview
VIVOTEK FD8363 is a professional outdoor dome network camera, offering 2-Megapixel or 1080p Full HD resolution with superb image quality up to 30 fps. As with other true day/night models, the camera comes with a removable IR-cut filter and 15-meter IR illuminators to provide great clarity 24 hours a day. It is especially suitable for monitoring wide open outdoor areas such as building entrances, airports, or applications requiring accurate identification.
For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. Thus, VIVOTEK has introduced the revolutionary Smart Focus System, including Easy Focus Button and Remote Focus to make installation and image adjustment easier. VIVOTEK has adopted lenses with a built-in stepper motor that the installer can use to remotely control the focal length and precisely adjust the camera focus, offering hassle-free installation and maintenance.
The IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions, while its metal vandal-proof housing effectively provides robust protection from vandalism. With other advanced features such as WDR enhanced, tamper detection, 802.3af compliant PoE, microSD/SDHC/SDXC card slot for on-board storage, video cropping, and e-PTZ functionality, the FD8363 provides the most robust solution suitable for demanding outdoor environments.
Features
- 2-Megapixel CMOS Sensor
- 30 fps @ 1920x1080
- 3 ~ 9 mm Motorized, DC-iris Lens
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, Effective up to 15 Meters
- Built-in Smart IR to Avoid Overexposure
- WDR Enhancement for Unparalleled Visibility in High Contrast Environments
- Real-time H.264, MPEG-4, and MJPEG Compression (Triple Codec)
- Smart Focus System for Remote and Easy Focus Adjustment
- Vandal-proof IK10-rated and Weather-proof IP66-rated Housing
- Built-in 802.3af Compliant PoE
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
These specifications are subject to change without notice.
Specifications:
System Information
| CPU |
- Multimedia SoC (System-on-Chip)
|
| Flash |
|
| RAM |
|
|
Camera Features
| Image sensor |
|
| Maximum Resolution |
|
| Lens Type |
|
| Focal Length |
|
| Aperture |
|
| Auto-iris |
|
| Field of View |
- 38 ~ 104 (horizontal)
- 22 ~ 71 (vertical)
- 43 ~ 111 (diagonal)
|
| Shutter Time |
- 1/5 sec. to 1/32,000 sec.
|
| WDR Technology |
|
| Day & Night |
- Removable IR-cut filter for day & night function
|
| Minimum Illumination |
- 0.08 Lux @ F1.2, 50 IRE ( Color )
- 0.001 Lux @ F1.2, 50 IRE ( B/W )
|
| Pan range |
|
| Tilt range |
|
| Pan / Tilt / Zoom |
- ePTZ
- 48x digital zoom (4x on IE plug-in, 12x built-in)
|
| IR Illuminators |
- Built-in IR illuminators, effective up to 15 meters
- IR LED*8
|
| On-board Storage |
- MicroSD/SDHC/SDXC card slot
|
|
Video
| Compression |
|
| Maximum Frame Rate |
- H.264: 30 fps at 1920x1080
- MPEG-4: 30 fps at 1920x1080
- MJPEG: 30 fps at 1920x1080
|
| Maximum Streams |
|
| S/N Ratio |
|
| Dynamic Range |
|
| Video Streaming |
- Adjustable resolution, quality and bit rate
- Configurable video cropping for bandwidth saving
|
| Image Settings |
- Adjustable image size, quality, and bit rate
- Time stamp, text overlay, flip & mirror
- Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
- Scheduled profile settings
|
|
Audio
| Audio Capability |
- Audio input / Audio output (Full duplex)
|
| Compression |
|
| Interface |
- External microphone input
- External line output
|
|
Network
| Users |
- Live viewing for up to 10 clients
|
| Protocols |
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
|
| Interface |
- 10 Base-T / 100BaseTX Ethernet (RJ-45)
|
| ONVIF |
- Supported, specification available at www.onvif.org
|
|
Intelligent Video
| Video Motion Detection |
- Triple-window video motion detection
|
|
Alarm and Event
| Alarm Triggers |
- Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
|
| Alarm Events |
- Event notification using digital output, HTTP, SMTP, FTP and NAS server
- File upload via HTTP, SMTP, FTP and NAS server
|
|
General
| Smart Focus System |
- Remote focus & easy focus
|
| Connectors |
- RJ-45 for network/PoE connection
- Audio input/output
- AV output
- AC 24V power input
- DC 12V power input
- Digital input*1
- Digital output*1
|
| LED Indicator |
- System power and status indicator
|
| Power input |
- 12V DC
- 24V AC
- IEEE 802.3af PoE Class 3
|
| Power consumption |
- DC 12V: 6.9 W
- PoE: 9.3W
- AC 24V: 8.5W
|
| Dimensions |
|
| Weight |
|
| Casing |
- Vandal-proof IK10-rated metal housing
- Weather-proof IP66-rated housing
|
| Safety Certifications |
- CE, C-Tick, FCC Class A, LVD, VCCI
|
| Operating Temperature |
- Starting Temperature: -10C ~ 50C (14F ~ 122F)
- Working Temperature: -20C ~ 50C (-4F ~ 122F)
|
| Warranty |
|
|
System Requirements
| Operating System |
- Microsoft Windows 7/Vista/XP/2000
|
| Browser |
- Mozilla Firefox 7~10 (Streaming only)
- Internet Explorer 7.x or 8.x
|
| Other Players |
- VLC: 1.1.11 or above
- QuickTime: 7 or above
|
|
|
|
|
|
20/05
|
Vivotek FD8163 Day & Night Fixed Dome Network Camera - 2 Megapixel CMOS Sensor, 1/2.7" Progressive CMOS, 30 fps @ 1920x1080, Built-In MicroSD/SDHC/SDXC Card Slot, Real-time H.264, MPEG-4, and MJPEG - White
Full HD Smart Focus System Smart IR PIR Fixed Dome Network Camera FD8163
Overview
VIVOTEK FD8163 is an easy-to-use fixed dome network camera, featuring 2-Megapixel or 1080p Full HD resolution with superb image quality up to 30 fps. As a true day/night camera, the FD8163 features a removable IR-cut filter and 15-meter smart IR illuminators, maintaining clear images 24 hours a day. It is especially suitable for monitoring wide open indoor areas such as a building lobby, train station, or applications requiring accurate identification.
For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. Thus, VIVOTEK has introduced the Smart Focus System including Easy Focus Button and Remote Focus to make installation and adjustment easier. VIVOTEK has adopted lenses with a built-in stepper motor that the installer can use to remotely control the focal length and precisely adjust the camera focus, offering hassle-free installation and maintenance. Furthermore, the unique design featuring four-step mounting also facilitates installation of the FD8163.
Together with a PIR sensor for enhanced detection, WDR enhanced, 802.3af compliant PoE, tamper detection, microSD/SDHC/SDXC card slot for on-board storage, video cropping, and e-PTZ functionality, the FD8163 is indisputably the top choice for reliable and high performance surveillance.
Features
- 2-Megapixel CMOS Sensor
- 30 fps @ 1920x1080
- 3 ~ 9 mm Motorized, DC-iris Lens
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, Effective up to 15 Meters
- Built-in Smart IR to Avoid Overexposure
- Built-in PIR Sensor for Human Detection
- WDR Enhancement for Unparalleled Visibility in High Contrast Environments
- Real-time H.264, MPEG-4, and MJPEG Compression (Triple Codec)
- Smart Focus System for Remote and Easy Focus Adjustment
- Built-in 802.3af Compliant PoE
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
Specifications:
These specifications are subject to change without notice.
System Information
| CPU |
- Multimedia SoC (System-on-Chip)
|
| Flash |
|
| RAM |
|
|
Camera Features
| Image sensor |
|
| Maximum Resolution |
|
| Lens Type |
|
| Focal Length |
|
| Aperture |
- 1.2 ( wide ), 2.1 ( tele )
|
| Auto-iris |
|
| Field of View |
- 38 ~ 104 (horizontal)
- 22 ~ 71 (vertical)
- 43 ~ 111 (diagonal)
|
| Shutter Time |
- 1/5 sec. to 1/32,000 sec.
|
| WDR Technology |
|
| Day & Night |
- Removable IR-cut filter for day & night function
|
| Minimum Illumination |
- 0.08 Lux @ F1.2, 50 IRE ( Color )
- 0.001 Lux @ F1.2, 50 IRE ( B/W )
|
| Pan range |
|
| Tilt range |
|
| Pan / Tilt / Zoom |
- ePTZ
- 48x digital zoom (4x on IE plug-in, 12x built-in)
|
| IR Illuminators |
- Built-in IR illuminators, effective up to 15 meters
- IR LED*8
|
| On-board Storage |
- MicroSD/SDHC/SDXC card slot
|
|
Video
| Compression |
|
| Maximum Frame Rate |
- H.264: 30 fps at 1920x1080
- MPEG-4: 30 fps at 1920x1080
- MJPEG: 30 fps at 1920x1080
|
| Maximum Streams |
|
| S/N Ratio |
|
| Dynamic Range |
|
| Video Streaming |
- Adjustable resolution, quality and bit rate
- Configurable video cropping for bandwidth saving
|
| Image Settings |
- Adjustable image size, quality, and bit rate
- Time stamp and text caption overlay, flip & mirror
- Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, gain, backlight compensation, privacy masks
- Scheduled profile settings
|
|
Audio
| Audio Capability |
- Audio input / Audio output (Full duplex)
|
| Compression |
|
| Interface |
- Built-in microphone
- External microphone input
- External line output
|
| Effective Range |
|
|
Network
| Users |
- Live viewing for up to 10 clients
|
| Protocols |
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
|
| Interface |
- 10 Base-T / 100BaseTX Ethernet (RJ-45)
|
| ONVIF |
- Supported, specification available at www.onvif.org
|
|
Intelligent Video
| Video Motion Detection |
- Triple-window video motion detection
|
|
Alarm and Event
| Alarm Triggers |
- Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, PIR
|
| Alarm Events |
- Event notification using HTTP, SMTP, FTP, NAS server
- File upload via HTTP, SMTP, FTP and NAS server
|
|
General
| Smart Focus System |
- Remote focus & easy focus
|
| Connectors |
- RJ-45 for network/PoE connection Audio input/output
- AV output
- AC 24V power input
- DC 12V power input
- Digital input*1
- Digital output*1
|
| LED Indicator |
- System power and status indicator
|
| Power input |
- 12V DC
- 24V AC
- IEEE 802.3af PoE Class 3
|
| Power consumption |
- DC 12V: 6.9 W
- PoE: 9.3W
- AC 24V: 8.5W
|
| Dimensions |
|
| Weight |
|
| Safety Certifications |
- CE C-Tick FCC (Class B) LVD VCCI
|
| Operating Temperature |
- Operating Temperature: 0C ~ 50C (32F ~ 122F)
|
| Warranty |
|
|
System Requirements
| Operating System |
- Microsoft Windows 7/Vista/XP/2000
|
| Browser |
- Mozilla Firefox 7~10 (Streaming only)
- Internet Explorer 7.x or 8.x
|
| Other Players |
- VLC: 1.1.11 or above
- QuickTime: 7 or above
|
|
|
|
|
|
