13/08
|
GeoVision GV-BL130D 1.3 Megapixel H.264 IR Bullet IP Camera - Up to 30 fps at 1280x1024, Intelligent IR, IP66 Rating, Motion Detection, Memory Card Slot, 2-Way Audio, Tampering Alarm - White
- 1.3 megapixel progressive scan CMOS
- Stream 1 from H.264 and MJPEG;
- Stream 2 from H.264, MPEG4 and MJPEG
- Up to 30 fps at 1280 x 1024
- Intelligent IR
- IP66 rating
- Cable-concealed bracket preventing cable from being cut
- One alarm input and sensor output
- Memory Card Slot
- 2-way audio
- Wide Dynamic Range (WDR)
- Motion detection
- Tampering alarm
- Privacy mask
- IP address filtering
- DC 12V / AC 24V / PoE
- Removable IR-cut filter for Day/Night function
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
The Bullet Camera features a weather sealed and IP66 rating housing for outdoor use. The camera also features 16 IR LEDs IR LEDs for infrared illumination in night vision applications. Additionally, the Bullet Camera supports both DC 12V and AC 24V power supply.
Active Tampering Alarm
Tampered
Focus Change
Camera Shift
Specifications:
| Camera |
| Image Sensor |
1/2.5" progressive scan CMOS |
| Picture Elements |
1280 (H) x 1024 (V) |
| Minimum Illumination |
Color |
1 Lux (1/30 sec), 0.5 Lux (1/5 sec) |
| B/W |
0 Lux |
| IR ON |
| Shutter Speed |
Automatic, Manual (1/5 ~ 1/8000 sec) |
| White Balance |
Automatic, Manual (2800K ~ 8500K) |
| Lens |
| Megapixel |
Yes |
| Day/Night |
Yes (with removable IR-cut filter) |
| Lens Type |
Varifocal |
| Focal Length |
3 ~ 9 mm |
| Maximum Aperture |
F / 1.3 |
| Mount |
14 mm |
| Image Format |
1/3" |
| Operation |
Focus |
Manual (w/lock) |
| Zoom |
Manual (w/lock) |
| Iris |
DC Drive |
| Torque (Focus/Zoom screws) |
0.049 N.m |
| |
16 IR LEDs |
| IR Distance |
15 m / 50 ft (Max.) |
| Operation |
| Video Compression |
H.264, MPEG4, MJPEG |
| Video Stream |
Stream 1 from H.264 and MJPEG
Stream 2 from H.264, MPEG4 and MJPEG |
| Frame Rate |
30 fps at 1280 x 1024
* The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes). |
| Image Setting |
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog |
| Audio Compression |
G.711, AAC (16 kHz / 16 bit)
* AAC is only supported by GV-System V8.5 or later |
| Two-way Audio |
Yes |
| Sensor Input |
1 Input (Dry Contact) |
| Alarm Output |
1 Digital Output (200mA 5V DC) |
| Video Resolution |
| Main Stream |
4 : 3 |
1280 x 960, 640 x 480, 320 x 240 |
| 16 : 9 |
1280 x 720, 640 x 360, 448 x 252 |
| 5 : 4 |
1280 x 1024, 640 x 512, 320 x 256 |
| Sub Stream |
4 : 3 |
640 x 480, 320 x 240 |
| 16 : 9 |
640 x 360, 448 x 252 |
| 5 : 4 |
640 x 512, 320 x 256 |
| Network |
| Interface |
10/100 Ethernet |
| Protocol |
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP) |
| Mechanical |
| Lens Mounting |
14 mm |
| Temperature Detector |
Yes |
| Camera Angle Adjustment |
Pan |
0 ~ 360 |
| Tilt |
90 ~ 180 |
| Rotate |
0 ~ 360 |
| Connectors |
Power |
3-pin terminal block, PoE |
| Ethernet |
RJ-45 |
| Audio |
1 In (RCA female for microphone)
1 Out (RCA female for speaker) |
| Digital I/O |
I/O Wires |
| Auto Iris |
DC Drive |
| Local Storage |
Micro SD / SDHC / SDXC memory card slot (for Class 6 card or above) |
| TV-Out |
None |
| General |
| Operating Temperature |
-20 C ~ 50 C / -4 F ~ 122 F |
| Humidity |
10% to 90% (no condensation) |
| Power Source |
12V DC / 24V AC / PoE |
| Max. Power Consumption |
12 W |
| Dimensions |
Camera Body |
277.5 x 87.75 x 148.95 mm / 10.9 x 3.45 x 5.86 in |
| Cable Length |
1 m / 3.28 ft |
| Max. Cable Diameter |
7.1 mm / 0.28 in |
| Max. Connector Diameter |
25.2 mm / 0.99 in |
| Weight |
1.35 kg / 2.98 lb |
| Protection Classification |
IP66 |
| Regulatory |
CE, FCC, C-Tick, RoHS compliant |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af Power over Ethernet / PSE |
| PoE Power Supply Type |
End-Span |
| PoE Power Output |
Per Port 48V DC, 350mA. Max. 15.4 watts |
| Web Interface |
| Installation Management |
Web-based configuration |
| Maintenance |
Firmware upgrade through Web Browser or Utility |
| Access from Web Browser |
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay |
| Language |
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish |
| Applications |
| Network Storage |
GV-NVR, GV-System, GV-Backup Center, GV-Recording Server |
| Smart Device Access |
- GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch
- GV-Eye HD for iPad |
| Live Viewing |
IE , GV-MultiView |
| CMS Server support |
GV-Control Center, GV-Center V2, GV-VSM |
|
|
|
|
13/08
|

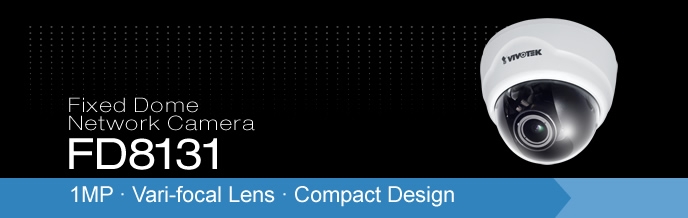

Vivotek FD8131 Fixed Dome Network Camera - 1 Megapixel CMOS Sensor, 3.0 ~ 12 mm Vari-focal Lens, Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec), Built-in MicroSD/SDHC Card Slot - White
1MP Vari-focal Lens Compact Design Fixed Dome Network Camera FD8131
Overview
VIVOTEK FD8131 is an easy-to-use fixed dome network camera specifically designed for indoor security applications with a compact, stylish housing. Equipped with a 1MP sensor enabling viewing resolution of 1280x800 at 30 fps, users need look no further for an all-in-one camera capable of capturing high quality, high resolution video.
This camera supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications. The streams can also be individually configured to meet different constraints, thereby further reducing bandwidth and storage requirements. Users can thus receive multiple streams simultaneously in different resolutions, frame rates, and image qualities for viewing on different platforms.
With the vari-focal lens, the FD8131 provides users the freedom to adjust the field of view in accordance with their application. Also included are a number of advanced features which are standard for VIVOTEK cameras, including tamper detection, MicroSD/SDHC card slot, 802.3af compliant PoE, and VIVOTEK's 32-channel recording software. With all of these capabilities, the FD8131 provides the best value in IP surveillance for indoor applications such as offices, banks, and retail stores.
Features
- 1-megapixel CMOS Sensor
- 3.0 ~ 12 mm Vari-focal Lens
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- Built-in 802.3af Compliant PoE
- Built-in MicroSD/SDHC Card Slot for On-board Storage
- 3-axis Mechanical Design for Ceiling/Wall Mount Installation
- Easy and Flexible Installation
- Compact, Elegant Design
Specifications:
- System Information
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- RAM
- Camera Features
- Image sensor
- Maximum Resolution
- Lens Type
- Focal Length
- Aperture
- F 1.4 ( wide ), F 2.0 ( tele )
- Field of View
- 48.06 ~ 17.06 (horizontal)
- 28.97 ~ 10.76 (vertical)
- 55.62 ~ 19.76 (diagonal)
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- Minimum Illumination
- Pan / Tilt / Zoom
- ePTZ
- 16x digital zoom ( 4x on IE plug-in ,4x built-in )
- On-board Storage
- Video
- Compression
- Maximum Frame Rate
- H.264: 30 fps at 1280x800
- MPEG-4: 30 fps at 1280x800
- MJPEG: 30 fps at 1280x800
- Maximum Streams
- S/N Ratio
- Dynamic Range
- Video Streaming
- Adjustable resolution, quality and bitrate
- Configurable video cropping for bandwidth saving
- Image Settings
- Adjustable image size, quality, and bit rate
- Time stamp and text caption overlay
- Flip & mirror
- Configurable brightness, contrast, saturation, sharpness, white balance and exposure control
- BLC (Backlight compensation)
- Supports privacy masks
- Scheduled profile settings
- Network
- Users
- Live viewing for up to10 clients
- Protocols
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
- Protocols
- 10 Base-T / 100BaseTX Ethernet (RJ-45)
- ONVIF
- Intelligent Video
- Video Motion Detection
- Triple-window video motion detection
- Video Motion Detection
- y-window video motion detection
- Alarm and Event
- Alarm Triggers
- Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
- Alarm Events
- Event notification using HTTP, SMTP, FTP, NAS server
- File upload via HTTP, SMTP, FTP and NAS server
- General
- Connectors
- RJ-45 cable connector for Network/PoE connection
- DC 12V Power input
- Digital input * 1
- MicroSD/SDHC card slot
- LED Indicator
- System power and status indicator
- Power input
- 12V DC
- 802.3af Power-over-Ethernet (Class 1)
- Power consumption
- Dimensions
- Weight
- Safety Certifications
- CEC-TickFCC ( Class A )LVDVCCI
- Working Temperature
- Operating Temperature: -10C ~ 50C ( 14F ~ 122F )
- Warranty
- System Requirements
- Operating System
- Microsoft Windows 7 / Vista / XP / 2000
- Browser
- Mozilla Firefox 7~10 ( Streaming only )
- Internet Explorer 7.x or 8.x
- Other Players
- VLC:1.1.11 or above
- QuickTime:7 or above
|
|
|
|
