18/01
|

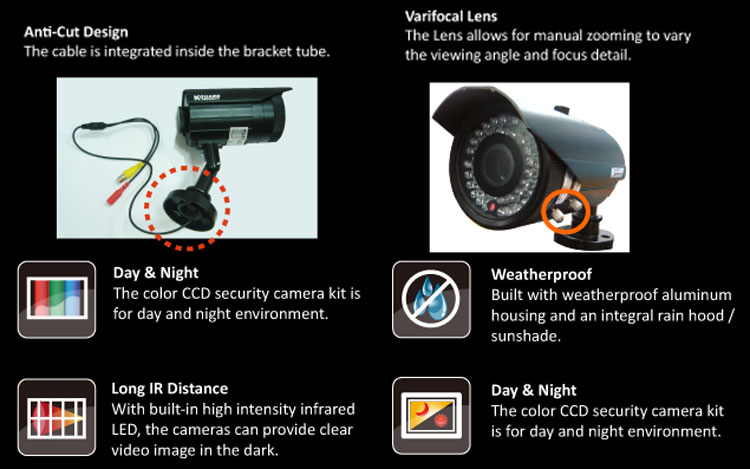

Kworld S/CAM/CW80R13-VF-P CCTV Weatherproof IR Camera - 1/3" HAD CCD, 540TV Lines, 72 IR LEDS, 6-15mm, Day & Night - Black KGUARD CCTV Security Weatherproof IR Camera - 1/3`` HAD CCD 540TV Lines, 72IR LEDs, 6-15mm VF
Product Code: S/CAM/CW80R13-VF-P
SPECIFICATIONS
|
Model No.
|
KG-CW80R13-VF-P |
| Image Device |
1/3" SONY Super HAD CCD |
| Signal System |
PAL |
| Picture Elements |
PAL:752(H)582(V) |
| Horizontal Resolution |
540 TV Lines |
| Minimum Illumination |
While IR ON "0" lux |
| S/N Ratio |
More than 48dB (AGC off) |
| Backlight Compensation |
On/Off Switchable |
| White Balance |
Auto Tracking |
| Focal Lens |
Manual varifocal lens, 6-15 mm |
| Shutter Speed |
1/50(1/60) - 1/100,000 (sec) |
| IR LED |
72pcs, 5/15 |
| Sync System |
Internal Synchronization |
| Infrared Wavelength |
850mm |
| IR Distance |
60M |
| Grade of waterproof |
IP66 |
| Bracket |
Anti-cut bracket |
| Operating Temperature |
-10 ~ +50C |
| Power Source |
DC12V |
| Video Out |
BNC, 1.0VP-P,75 |
| Weight |
1270g(N/W) 1440g(G/W) |
| Dimensions |
101mm L:175mm |
|
|
|
|
18/01
|
Kworld S/CAM/CW50R13-P CCTV Weatherproof IR Camera - 1/3" HAD CCD, 540TV Lines, 42 IR LEDS, Day & Night, 16mm - Black KGUARD CCTV Security Weatherproof IR Camera - 1/3" HAD CCD 540TV Lines, 42IR LEDs, 16mm
Product Code: S/CAM/CW50R13-P
SPECIFICATIONS
|
Model No.
|
KG-CW50R13-P |
| Image Device |
1/3" SONY Super HAD CCD |
| Signal System |
PAL |
| Picture Elements |
PAL:752(H) 582(V) |
| Horizontal Resolution |
540 TV Lines |
| Minimum Illumination |
While IR ON "0" lux |
| S/N Ratio |
More than 50dB (AGC off) |
| Backlight Compensation |
On/Off Switchable |
| White Balance |
Auto Tracking |
| Focal Lens |
16 mm |
| Shutter Speed |
1/50(1/60) - 1/100,000 (sec) |
| IR LED |
42pcs, 5/15 |
| Sync System |
Internal Synchronization |
| Infrared Wavelength |
850mm |
| IR Distance |
40M |
| Grade of waterproof |
IP66 |
| Bracket |
Anti-cut bracket |
| Operating Temperature |
-10C ~ +50C |
| Power Source |
DC12V |
| Video Out |
BNC, 1.0VP-P,75 |
| Weight |
880g(N/W) 1080g(G/W) |
| Dimensions |
98.4 L:175mm |
|
|
|
|
18/01
|
Kworld S/CAM/CDI13-P Indoor CCTV Camera Dome Type - 1/3" Sony Super Had CCD, 540 TV Lines - Black KGUARD CCTV Indoor Surveillance Camera Dome Type
Product Code: S/CAM/CDI13-P
SPECIFICATIONS
|
Model No.
|
KG-CDI13-P |
| Image Device |
1/3" SONY Super HAD CCD |
| Signal System |
PAL |
| Picture Elements |
PAL: 752(H)582(V) |
| Horizontal Resolution |
540 TV Lines |
| Minimum Illumination |
0.1LUX/F1.2 |
| S/N Ratio |
More than 50dB (AGC off) |
| Backlight Compensation |
Auto |
| White Balance |
Auto Tracking |
| Focal Lens |
3.6mm |
| Shutter Speed |
1/50(1/60) - 1/100,000 (sec) |
| Operating Temperature |
-10C ~ +50C |
| Power Source |
DC12V |
| Video Out |
BNC |
| Weight |
285g(N/W) 465g(G/W) |
| Dimensions |
127.7mm H:78.8mm |
|
|
|
|
