10/08
|
Compro IP540 Day & Night Network Camera - White
- 1/3" CMOS Mega Pixel, 1280x1024, Tilt, Digital Zoom HD, Built-In Microphone, 802.11b/g/n Network, Wireless Upgradable IP540 1.3M H.264 D/N PTZ Camera
Key Features
- 1/3" progressive scan CMOS vivid image sensor
- Maximum 1.3Megapixel 1280x1024 HD sharp resolutions more...
- Tri-codec H.264, MPEG-4, M-JPEG compression, suiting all bandwidth levels and allowing dual streaming simultaneously
- Full audio infrastructure, including built-in microphone as well as audio line in and out ports; two-way audio communication supported
- True Day & Night illumination by mechanical ICR-controlled IR LEDs, effective for at least 15 meters more...
- Wide-range mechanical P/T motions with 2x hardware-based lossless zoom, supporting up to 30 preset locations patrol guarding
- Digital I/O 3-in/3-out, enabling external sensors and alarms integration (external and optional)
- Intelligent event analytics including video motion detection and audio detection
- IEEE 802.11b/g/n WiFi compliant (external and optional)
- microSD/SDHC local storage support up to 32GB (card not incl)
- 3GPP or M-JPEG mobile surveillance, supporting Andriod, BlackBerry, iPhone, Windows Mobile platforms
- WebVUer remote surveillance, multi-channel screen division, support up to 16Ch per web browser more...
- ComproView 32Ch advanced surveillance system
Specifications
| Model |
Compro IP540 |
| Description |
1/3" 1.3M H.264 Day/Night PTZ Network Camera |
| VIDEO |
| Sensor |
1/3" progressive scan CMOS |
| Video Standard |
Tri-codec M-JPEG, MPEG-4, H.264; dual streams supported |
| Data Rate |
Streaming 1 and 2 multi-level configurable |
| Video Quality |
6 Levels selectable |
| System |
60 / 50 Hz |
| Resolution & Frame Rate |
1280 x 1024 15/15 fps |
| |
640 x 480 30/25 fps |
| |
320 x 240 30/25 fps |
| |
160 x 120 30/25 fps |
| Day & Night Illumination |
12 x IR LED, mechanical ICR controlled, 850 nm, effective 15 m, multi-level configurable |
| Color |
1.0 Lux minimum |
| Night Mode |
0 Lux when IR on |
| Channel |
1Ch or 4Ch division, 16 x multi-IP channels per WebVUer; sequence supported |
| Imaging |
|
| Color Contour |
Brightness, saturation, sharpness, multi-level configurable |
| White Balance |
5 scenarios selectable |
| Electronic Shutter |
Auto, manual (1/5~1/16000 sec, 16 levels selectable) |
| Flickerless |
60, 50 Hz selectable |
| Low-Light Mode |
Specially enhanced |
| Orientation |
Flip |
| |
| PAN / TILT / ZOOM |
| Panning |
-170 ~ +170, max 45 /sec |
| Tilting |
-10 ~ +90, max 35 /sec |
| Zooming |
2x hardware lossless zoom, fit browser, 100% |
| Controlling |
30 preset points, configurable patrol tour |
| AUDIO |
|
| Compression Format |
G.711 PCM 64Kbit/sec, two-way audio supported |
| Microphone |
1 x built-in, S/N ratio more than 58 dB, sensitivity 50~10,000 Hz |
| Audio Line Input / Output |
1 x in, 1 x out, 3.5 mm phone jack |
| SYSTEM INTEGRATION |
| Sensor In / Alarm Out |
3 x in, 3 x relay out (external & optional) |
| Triggering Event |
Video motion detection (multiple zones and sensitivity levels), audio detection (multi-sensitivity), schedule, I/O |
| Triggering Reaction |
Snapshot, e-mail, FTP, alarm out, ComproView notification |
| SDK |
Available |
| NETWORK |
| Protocols |
3GPP, ARP, DDNS, DHCP, DNS, FTP, HTTP, ICMP/IPv4, IGP, NTP, PPPoE, RSP, RTSP, SMTP, TCP/IP, UDP, UPnP |
| Ethernet |
10/100 Base-T, auto sensing, RJ-45, front LED indicator |
| Wireless |
IEEE 802.11 b/g/n compliant (external & optional) |
| User Group |
3 levels, unlimited users, max 10 users simultaneously |
| Encryption |
WEP, WPA-PSK, WPA2-PSK (when Wireless becomes available) |
| Diagnostics |
Auto connectivity detection, iWizard, iDoctor |
| LOCAL RECORDING |
| Storage |
microSD/SDHC port, up tp 32GB (card not incl) |
| Format |
JPEG, file name format configurable |
| Control |
Playback by event types |
| REMOTE SURVEILLANCE |
| Mobile Surveillance |
M-JPEG or 3GPP streaming over major platforms such as Android, BlackBerry, iPhone, Windows Mobile |
| Web Surveillance |
WebVUer 16Ch over Internet Explorer, Chrome, Firefox, Safari; features varied |
| Advanced Surveillance |
ComproView 32Ch surveillance system freely bundled |
| GENERAL |
| Unit Configuration |
Reboot, factory default, date/time synchronization |
| User Authentication |
ID, Password |
| Firmware |
HTTP mode, remote update |
| OSD |
Text or image on-screen overlay |
| Language |
Multi-lingual support |
| System Log |
Listing, cleaning |
| Regulatory |
CE, FCC |
| MECHANICAL |
| Lens Type & Mounting |
f 4.0 mm, F1.5, fixed iris, FOV 60, focus range 0.5 m ~ inf |
| Casing |
PTZ, indoor, white |
| Dimension (HxWxD) |
125.5 x 105.0 x 128.5 mm |
| Weight |
560 g (incl bracket) |
| ELECTRICAL |
| Input Voltage |
DC 12V |
| Power Consumption |
2 A; 11.7 W, with WL150 WLAN adaptor 12.8 W |
| Connector |
Terminal block push-in |
| ENVIRONMENTAL |
| Operating Temperature |
5~40 C |
| Humidity |
20 ~ 80% RH non-condensing |
| BROWSING REQUIREMENT |
| OS |
Microsoft Windows XP SP3, Vista SP1, 7 (x86/x64) |
| Processor |
Intel 1.7 GHz, 512 MB RAM |
| Web Browser |
Microsoft Internet Explorer 6.0 or above, non-IE browsers require third-party plug-in |
|
|
|
|
10/08
|
GeoVision GV-IP Box Camera - H264, 1.3Mega Pixel, 1280x1024, 10/100 LAN, 4.0mm Fixed Lens, Two Way Audio, Digital I/O, PoE GeoVison GV-IP Box Camera
Providing detail not seen on conventional surveillance cameras, the GV-IP Camera 1.3M features a 1.3 megapixel CCD that delivers superb video image quality. Through the use of progressive scan CCD sensor, the GV-IP Camera 1.3M is able to reproduce ultra smooth video images of fast moving objects without any pixilated edges. With high definition up to 1280 x 960 and up to 4 times higher resolution than conventional VGA/ D1 cameras, the GV-IP Camera 1.3M allows users to monitor critical areas with greater detail than ever. Moreover, with simultaneous/dual video stream and support for compliant Power-over-Ethernet (PoE) which simplifies the cabling. It allows users to view both MJPEG images and MPEG-4 videos with improved efficiency while conserving valuable bandwidth.
In providing our customers with a more complete, cost-effective IP surveillance solution, our GV-IP Camera 1.3M can seamlessly integrate with our GV-NVR software system that comes with advanced monitoring and various other video management features. When connected with the GV-IP Camera 1.3M, Special web interface support functions such as privacy mask, visual automation, picture-in-picture (PiP) view and picture-and-picture (PnP) view are also made available for facilitating detail monitoring.
- 1.3 megapixel SONY progressive scan CCD
- Dual streaming support MJPEG and MPEG4
- Two way audio
- Digital I/O: 1 IN, 1 OUT
- Support both 12V DC and PoE
- Video Motion Detection reduces bandwidth and storage
- 3GPP/ISMA mobile application
- Privacy Mask
- Visual Automation

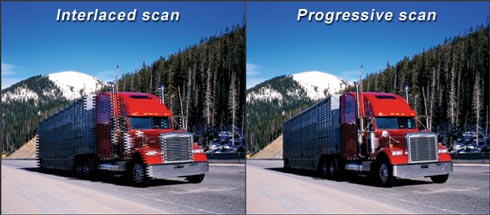

Progressive scan CCD captures the entire scene of a moving object at the same time. Even and odd fields are scanned simultaneously. It reproduces smooth video quality without pixilated edges.

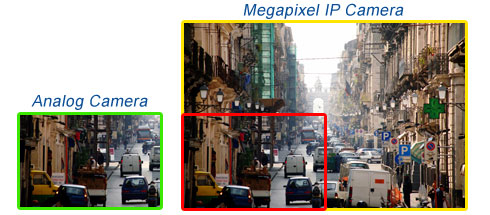

It provides up to 4 times higher resolution than common VGA/D1 cameras.
SPECIFICATIONS
|
Camera
|
|
Image Sensor
|
1/3" SONY progressive scan CCD
|
|
Picture Elements
|
1280(H) x 960 (V), 1.3M CCD
|
|
Resolution
|
700 TVL
|
|
Minimum Illumination
|
0.1 lux @ F1.2
|
|
Shutter Speed
|
1.5 ~ 1/10000 sec.
|
|
White Balance
|
Manual / ATW (1500 ~ 15000K)
|
|
Lens
|
Video drive & DC drive (switchable)
|
|
Operation
|
|
Video Codec
|
MPEG4 / MJPEG
|
|
Video Streaming
|
Simultaneous MPEG4 and MJPEG video stream (dual stream)
Selectable single stream (MPEG4 or MJPEG)
|
|
Resolution
|
MPEG4 ASP: VGA, QVGA, CIF, QCIF
MJPEG: 1280x960(4 VGA), VGA, QVGA, CIF, QCIF
|
|
Frame Rate
|
MPEG4 30fps@VGA
MJPEG 15fps@1280x960
|
|
Image Setting
|
Auto Exposure, Auto White Balance, Brightness, Contrast, Sharpness, Gamma, Mono, Reverse, Rotate 180, Flicker-less 50/60 Hz
|
|
Audio Codec
|
G.726
|
|
Digital Input
|
Dry Contact
|
|
Digital Output
|
Photo relay output: 40mA, 5~12VDC
|
|
Network
|
|
Interface
|
10/100 Ethernet (RJ-45)
|
|
Protocol
|
HTTP, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA RTSP
|
|
Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af Power over Ethernet / PSE
|
|
PoE Power Supply Type
|
End-Span
|
|
PoE Power Output
|
Per Port 48V DC, 350mA. Max. 15.4 watts
|
|
Mechanical
|
|
Lens Mounting
|
C-Mount or CS-Mount
|
|
Connectors
|
Power
|
DC Jack
|
|
Ethernet
|
RJ-45
|
|
Audio
|
1 In, 1 Out stereo phone jack, pitch 3.5 mm / 0.14 in
|
|
Digital I/O
|
4 pins terminal block, pitch 3.5 mm / 0.14 in
|
|
Auto Iris
|
Video drive & DC drive
|
|
LED Indicator
|
Power, Link, ACT
|
|
General
|
|
Operating Temperature
|
0C ~ 50C / 32 F ~ 122 F
|
| Humidity |
10% to 90% (no condensation) |
|
Power Source
|
DC12V / PoE
|
|
Power Comsumption
|
4.2 W (max. 350mA DC 12V)
|
|
Certificate
|
CE, FCC, RoHS compliant
|
|
Dimension
(L x W x H)
|
125 x 72 x 52 mm / 4.92 x 2.83 x 2.05 in (w/o lens)
|
|
Weight
|
250g / 0.55lb
|
|
Web Interface
|
|
Installation Management
|
Web-based configuration
|
|
Maintenance
|
Firmware upgrade through Web Browser
|
|
Access from Web Browser
|
Camera live view, video recording, change video quality, zoom in/out, bandwidth control, image snapshot, digital I/O control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation
|
|
Applications
|
|
Network Storage
|
GV-NVR, GV-System
|
|
3G Mobile Phone
|
Built-in player for 3GPP/ISMA
|
|
Live Viewing
|
MultiView, E-map, Mobile Phone
|
|
CMS Server support
|
Control Center, Center V2, VSM
|
Options
Optional devices can expand your GV-IP Camera's capabilities and versatility. Contact your dealer for more information.
| GV-Relay V2 |
Working with this module, GV-IP Camera can drive the loads of relay outputs over 5V. |
|
|
|
|
